2003–2007 Honda VTX1300S Service & Repair Manual PDF

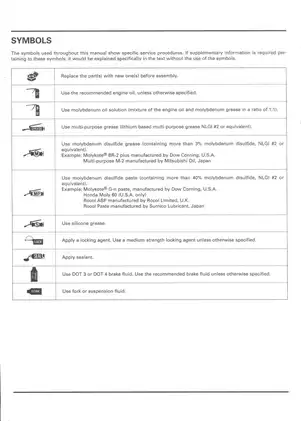

This Honda VTX1300S service manual contains the April 2002 service text, including a revised July 2002 engine-oil check page. The supplied cover also names VTX1300R; the Honda service text identifies the VTX1300S.

• Engine and valve train: Engine removal, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, piston inspection, and camshaft timing procedures.
• Clutch and transmission: Wet-clutch overhaul, gearshift linkage service, crankcase separation, transmission inspection, and crankshaft and balancer-shaft service.
• Shaft final drive: Gear-case disassembly, bearing replacement, shim selection, tooth-contact pattern inspection, backlash measurement, and assembly preload checks.
• Fuel and emissions: CV carburetor overhaul, pilot-screw and high-altitude adjustments, PAIR testing, and California-specific evaporative-emissions valve inspections.
• Cooling and lubrication: Cooling-system pressure testing and bleeding, thermostat inspection, water-pump replacement, oil-pressure testing, and oil-pump inspection.
• Chassis and brakes: Fork-seal replacement, steering-head bearing adjustment, swingarm pivot service, brake bleeding, and front/rear master-cylinder and caliper overhaul.
• Electrical diagnosis: Charging-system troubleshooting, ignition peak-voltage tests, starter-motor rebuilding, starter-clutch inspection, switch tests, and wiring diagrams.

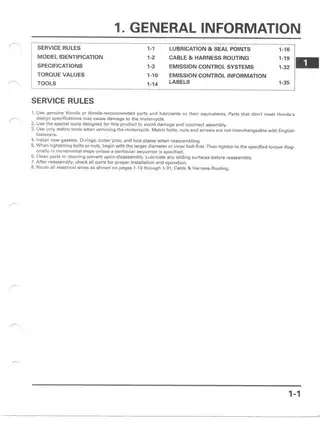

Written for readers who already have basic Honda motorcycle maintenance knowledge, the manual also specifies the measuring equipment and special tools required for internal engine and final-drive work.

Engine Access and Internal Repair

Camshaft, cylinder-head, cylinder/piston, and transmission service requires engine removal. Clutch and gearshift linkage work, alternator service, and starter repairs can be performed with the engine installed.

Crankpin bearing selection uses connecting-rod and crankpin codes with color-coded bearing inserts and Plastigauge clearance checks. These tables connect replacement-bearing selection to the actual component combination and measured fit.

Valve-adjustment instructions identify the required tooling, including wrench 070MA-MEA0100. Reference tables cover dimensions, frame geometry, wear limits, fluid capacities, and component-specific fastener torques.

The Lubrication System flow diagram traces oil delivery through the engine. Oil-pump coverage includes the main and scavenge rotors and pressure-relief valve; pump service requires crankcase separation.

Carburetor and Emissions Diagnosis

Carburetor coverage extends to the vacuum-piston diaphragm, air cut-off valve, accelerator pump, starting enrichment valve, and carburetor heater. Troubleshooting distinguishes lean or rich running, rough idle, and afterburn during engine braking.

California-specific procedures cover the EVAP purge control valve and EVAP carburetor air vent (CAV) control valve, including tests associated with difficult hot restarting. Vacuum Hose Routing diagrams, Pulse Secondary Air Injection (PAIR) drawings, and Evaporative Emission Control System schematics show the relevant connections.

Overtightening the pilot screw can damage its seat. The EVAP test instructions also warn that high-pressure air can damage the purge and CAV control valves.

Cooling, Wheels, and Suspension

Cooling-system coverage includes radiator-cap testing, leak checks, thermostat inspection, and radiator/fan removal. Water-pump mechanical-seal leakage is addressed by replacing the pump.

Wheel procedures include bearing replacement, spoke-wheel centering, and balancing. The rear-suspension chapter covers universal-joint inspection and swingarm pivot-bearing replacement; rear shock absorbers are inspected and replaced as complete assemblies.

Brake sections provide disc inspection limits and piston, seal, and bore checks for both master cylinders and calipers.

Working on motorcycles involves heavy lifting, high temperatures, and pressurized systems. Follow the manual’s safety precautions and use appropriate protective equipment when handling fluids or ignition components.

Electrical Fault Isolation and Routing

The ignition chapter compares measurements at the ignition control module (ICM) and component connectors to distinguish harness faults from ignition-pulse-generator or throttle-position-sensor faults.

Speedometer and vehicle-speed-sensor tests, fuel-pump delivery checks, and switch continuity charts extend coverage beyond starting and charging. Cable & Harness Routing views supplement the system circuit diagrams and complete wiring diagram.

Engine Checks and Final-Drive Preload Preview

Valve-clearance specifications are 0.15 ± 0.02 mm intake and 0.30 ± 0.02 mm exhaust, checked with the engine cold, below 35°C (95°F). The cylinder-compression test lists 1,177 kPa (171 psi) at 300 rpm with the engine warm and the throttle fully open.

Engine oil capacity is 3.7 liters (3.9 US qt) after draining and replacing the oil filter. Final-drive gear assembly preload is 0.2–0.4 N·m, checked after the gear case is assembled.

PDF Chapter Access and Wiring Detail

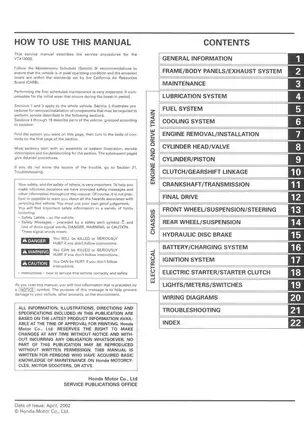

Search, bookmarks, and diagram detail: PDF text search is not available. Embedded bookmarks provide access to the manual’s chapters and index. Small labels in the complete wiring diagram require zooming.

One printable English-language PDF with 351 pages total: 349 pages of Honda service content, one cover page, and one appended reference-links page, all included in the total.
