Suzuki RGV250 K/L 1989–1996 Service Manual Set (P/N 99500-12077-01E)

The L-model supplement supplies changes to the base manual and refers back to sections 1–8 for procedures it does not repeat.

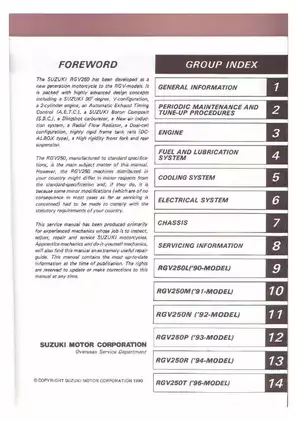

Coverage is limited to K and L models. The M, N, P, R, and T supplements listed in the group index are not included, and the set contains no separate S-model section.

PDF Search and Wiring Diagram Detail

Search, bookmarks, and small labels: Text search and embedded PDF bookmarks are unavailable in all nine files. The full wiring diagrams require rotation and zoom to read small labels; some wire-color codes in the K-model diagram remain faint.

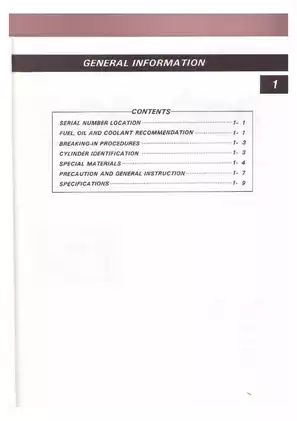

The ZIP contains nine printable PDFs totaling 230 pages. Eight files make up the base manual, and the ninth contains the L-model supplement. The total includes 10 base-manual cover, foreword, and section-contents pages, plus the supplement’s opening page and back cover.

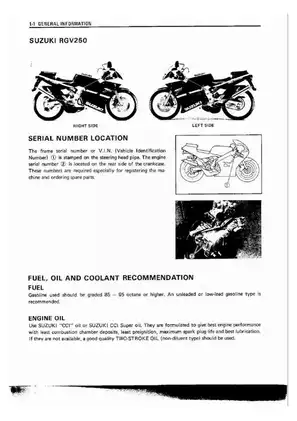

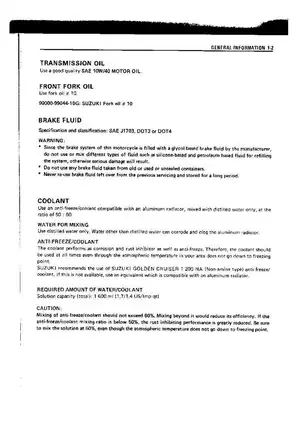

Engine, Exhaust-Control, and Chassis Procedures

These selected contents outline the main workshop coverage rather than reproduce the full contents list. Other topics include fairing removal and drive-chain inspection.

• Engine and transmission: Step-by-step removal, teardown, inspection, and reassembly, including the clutch, kickstarter, gearbox, reed valves, water pump, and magneto.

• A.E.T.C.: Actuator and cable installation, pulley indexing, separate left/right exhaust-valve cable adjustments, functional checks, and control-unit and actuator testing.

• Fuel and lubrication: Carburetor disassembly, needle-valve inspection, float and fuel-level setup, throttle and choke adjustments, and CCI oil-pump bleeding and output testing.

• Cooling system: Radiator removal, system-tightness and cap-pressure tests, thermostat bench inspection, coolant replacement, and air bleeding.

• Electrical diagnosis: Generator, regulator/rectifier, ignition-coil, pick-up, and CDI checks, together with instrument, switch, lamp, and battery service information.

• Brakes and chassis: Caliper and master-cylinder repair, brake bleeding, fork teardown and seal replacement, steering and wheel bearings, tubeless tires, and swingarm/linkage service.

• Workshop references: System-specific troubleshooting charts, wiring diagrams, cable/harness/hose routing sheets, special-tool identification, engine and chassis torque tables, and grouped service data.

Suzuki wrote this manual primarily for experienced mechanics and also identifies apprentice and do-it-yourself mechanics as users; major engine, brake, electrical, and tire work requires the specified equipment and appropriate workshop skills.

Internal Engine Inspection and Assembly

An in-frame service chart distinguishes components accessible without engine removal. Inspection procedures address cylinder-head flatness, cylinder and exhaust-valve condition, piston and ring wear, crankshaft runout and big-end condition, clutch plates and springs, and shift-fork clearances.

Assembly details cover bearing locating pins, crankcase sealing, transmission shafts and shift components, water-pump mechanical seals, piston and circlip orientation, and exhaust-valve indexing. Left- and right-cylinder parts must remain correctly matched.

Excess crankcase sealant can obstruct an oil passage. The cylinder-installation notes also identify ring alignment errors that can damage the piston rings.

K/L Carburetors and Exhaust Controls

The K model uses Mikuni VM32SS carburetors; the L supplement specifies VM34SS units and revised carburetor, throttle-sensor, air-control, and ignition/exhaust-control data. These separate specifications help match settings and diagnostic checks to the installed hardware.

S.I.P.C. (Suzuki Intake Pulse Control) appears in hose disconnection and routing instructions and in an air-leak troubleshooting entry, rather than a dedicated diagnostic chapter.

For the L model, the 09931-64410 ignitor checker procedure checks ignition, exhaust-valve response, and air-solenoid operation with throttle-position input. Electronic-unit resistance tables depend on the specified Suzuki pocket tester; other meters can produce different readings.

Electrical Circuits and Routing References

Drawings include the charging-system circuit, CDI ignition circuit, A.E.T.C. control-unit/actuator diagram, water-temperature meter circuit, and separate K- and L-model full wiring diagrams.

Routing sheets identify wire harnesses, control cables, water hoses, fuel/breather lines, oil lines, and brake hoses. Cooling diagnosis also distinguishes temperature-sender checks from tests of the dashboard meter.

Forks, Bearings, and Rear Suspension

Fork repair extends to damper-rod removal, bushings, oil seals, oil-level setting, and spring adjustment. Bearing instructions specify wheel-bearing installation order and steering-stem, swingarm, and rear-cushion linkage assembly details.

The L supplement adds rear-shock reservoir routing and spring-preload, rebound, and compression-damping settings. The rear shock absorber itself is designated unserviceable and must not be disassembled.

Tools, Service Data, and Factory Warnings

Tool references include the 09913-10730 fuel-level gauge, 09900-21602 CCI oil gauge, 09940-50112 front-fork oil-seal installer, and 09941-44910 swingarm-bearing remover. Related tables provide wear limits, clearances, adjustment specifications, electrical test values, fluid capacities, and tightening torques.

Factory warnings address brake bleeding and solvent damage to brake components, hot coolant, and tire-inflation hazards. Tire work assumes suitable shop equipment and the stated inflation precautions.

Selected CCI Pump and Thermostat Test Data

For CCI pump output testing at 2,000 r/min over two minutes with the pump lever fully open, the K-model specification is 4.1–5.3 ml. The L supplement changes this to 3.5–4.6 ml.

The thermostat bench-test data specifies an opening temperature of 50 ± 2°C and valve lift over 7.0 mm at 65°C. These are inspection criteria accompanying the test descriptions.
