2000–2005 Kawasaki ZZR1200 C1–C3/D1 Factory Service Manual (P/N 99920-1225)

This Kawasaki factory service manual covers the ZZR1200, identified as ZX1200-C1 through C3 and ZX1200-D1. It combines periodic maintenance with engine, drivetrain, chassis, and electrical repair procedures, with regional differences identified in the relevant sections.

• Engine repair: Engine removal and installation, cylinder-head service, camshaft timing, valve-seat repair, piston inspection, and crankcase disassembly.

• Fuel and emissions: Carburetor synchronization, service fuel-level adjustment, carburetor disassembly and cleaning, fuel-pump checks, and California evaporative-system testing.

• Clutch and transmission: Hydraulic clutch bleeding, master- and slave-cylinder service, clutch inspection, transmission-shaft assembly, and shift-drum and fork inspection.

• Cooling and lubrication: Cooling-system pressure testing, thermostat and radiator-cap checks, water-pump inspection, oil-pump service, and oil-pressure measurement.

• Brakes and chassis: Caliper and master-cylinder repair, brake bleeding, fork overhaul, steering-bearing lubrication, wheel-bearing replacement, and final-drive chain service.

• Electrical diagnosis: Charging and ignition tests, starter-motor service, throttle-position sensor adjustment, interlock checks, and regional circuit diagrams.

The procedures suit mechanics and experienced owners with basic motorcycle service knowledge and access to the measuring equipment and special tools specified for the work.

Cylinder Head, Valve Gear, and Internal Engine Repair

Cylinder-compression testing, valve-guide inspection, valve-seat cutting, and piston-ring measurements extend the coverage beyond routine maintenance. Separate inlet and exhaust valve-clearance adjustment charts support shim selection. Crankshaft and connecting-rod sections include bearing-insert selection and clearance checks.

The valve-clearance section warns that shim stock stacked beneath a shim can let it pop out at high rpm and damage the engine. Camshaft caps are matched to the cylinder head; incorrect placement can cause camshaft seizure.

Component-specific torque and locking-agent tables accompany the assembly information, including the cylinder-head bolt tightening sequences. A unit-conversion table is also included.

Carburetor Setup and Regional Emission Equipment

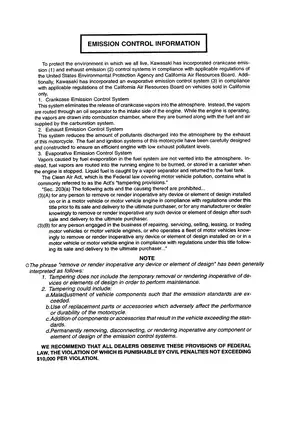

Carburetor information distinguishes California evaporative controls from the coolant-heated carburetor arrangements used outside CA, CAL, and US applications. California coverage includes canister and liquid/vapor separator inspection, separator operation testing, and vacuum-valve checks.

Cable, Wire, and Hose Routing views distinguish fuel, vent, purge, and vacuum connections. The muffler section identifies different catalyst-equipped muffler bodies; additional KLEEN theory and maintenance information is referenced to separate manuals.

Cooling Circulation and Dual Oil Pumps

The Coolant Flow Chart shows the radiator, thermostat, reserve tank, and circulation paths. Cooling-system diagnosis addresses pressure loss and possible internal leakage, alongside coolant replacement, flushing, and air bleeding.

The Engine Oil Flow Chart explains the dual-pump arrangement and the oil paths through the engine, transmission, and oil cooler. Related procedures cover relief-valve inspection and oil-pressure testing.

Fork, Steering, and Brake Differences

Front-fork information distinguishes C3-onward rebound adjusters and revised oil specifications. Separate steering procedures address the changed C3-onward stem arrangement.

Brake chapters cover piston seals, master-cylinder cups, disc wear, and hydraulic bleeding. Suspension coverage extends to swingarm bearings and Uni-Trak linkage service, while final-drive procedures include chain installation, riveting, sprocket inspection, and wheel alignment.

Secure the motorcycle on a stable stand and use a well-ventilated workspace for fuel or electrical service.

Electrical Testing and Wiring Coverage

The Charging System Circuit, Ignition System Circuit, and Junction Box Internal Circuit accompany component tests. The no-spark troubleshooting chart helps narrow a starting fault through supply, pickup-coil, ignition-coil, and interlock checks before parts are replaced.

Full wiring sheets: The inserted sheets are labeled ZX-1200-C1 and cover Australia, Malaysia, USA/Canada, and the stated other-market group. They have German headings, with English labels on most sheets and German labels on the other-market pair. The later-variant full wiring sheets listed in the English contents are not included.

A Preview of Valve, Ignition, and Chain Specifications

These examples are a small selection of the service specifications in the manual. For the covered engine, valve clearance at room temperature is 0.13–0.19 mm on the intake side and 0.18–0.24 mm on the exhaust side.

Spark-plug gap is specified at 0.7–0.8 mm. The final-drive reference gives chain slack as 25–35 mm with the motorcycle on its center stand, checked at the tightest chain position midway between the sprockets.

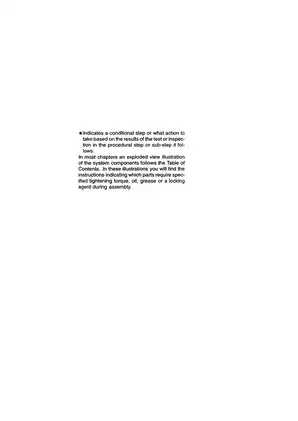

Printable PDF, Chapter Bookmarks, and Wiring Detail

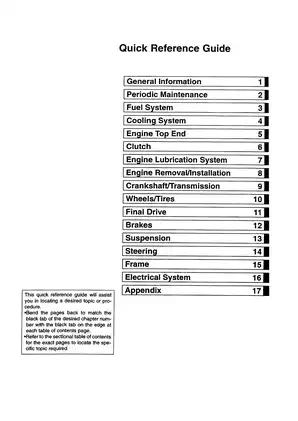

Search, navigation, and diagram detail: Text search is limited to parts of the inserted wiring pages; the main service text is not searchable. Embedded bookmarks open the quick reference guide and chapter starts. Small wiring color codes and connection tables require zooming for comfortable reading.

Supplied as one printable 496-page PDF: 488 pages of the English manual, including its cover and opening material, plus eight inserted wiring-diagram pages with German headings. All opening material and inserted pages are already included in the total.
