Hitachi 6WG1 Diesel Engine Service Manual Set (P/N KM-6WG1-E-00)

1,048 Pages • Printable PDF • 23.61 MB • Download

4.5starstarstarstarstar_half(2)
$13.86 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Hitachi Models Covered & Key Technical Specifications

Models: 6WG1

Sub-models / Variants: 6WG1-TC (engine service and repair); Isuzu 6WG1X Tier 3 (6WG1XYSA-01 / AH-6WG1XYSA-01; training material only)


  • Engine speed / rail pressure condition (PCV DTC monitoring): 300 rpm or more, or actual rail pressure above target pressure

  • Coolant temperature (EGR position check): 70°C (158°F)

  • PCV F/B current (cranking diagnostic threshold): 900 mA

  • EGR position sensor deviation: ±3%

  • PCV1 wiring (E-161 pin 1): 0.75 mm², R/L (red/blue)

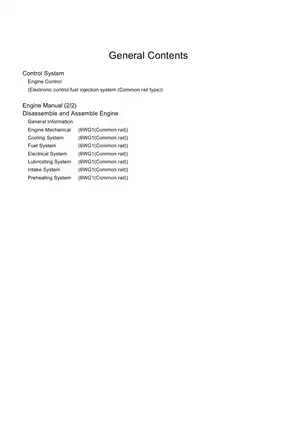

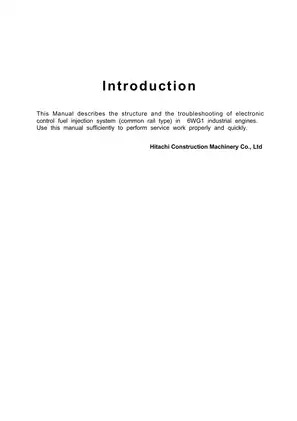

Hitachi Manual Features & Selected Content Preview

Publication Pages
Hitachi 6WG1 Engine Manual (1/2): Control System — P/N KM-6WG1-E-00 (1/2), February 2006 583
Hitachi 6WG1 Engine Manual (2/2): Disassemble and Assemble Engine, including 6WG1-TC mechanical procedures — P/N KM-6WG1-E-00 (2/2), February 2006 263
Hitachi Training Text: Isuzu 6WG1X Engine — General Information, TTLB-0079 101
Hitachi ZX-3 Series: Introduction of 6WG1 Engine, TTLA-0704-EN 101

The two engine-manual volumes connect electronic fault diagnosis with mechanical inspection and repair. The training texts explain Tier 3 common rail operation and share much of the same instructional content.

The 6WG1X material provides training coverage rather than a separate, complete overhaul manual for every engine configuration shown. Machine-specific troubleshooting also requires the applicable machine manual.

PDF Search, Bookmarks, and Wiring Detail

Finding text and circuit details: Searchable text extends across both service volumes and the training material, with embedded bookmarks providing access to chapters and procedures. Some illustrated tables and cover content are not text-searchable. Small wiring and connector labels need zooming for comfortable reading.

One printable 1,048-page PDF contains all four publications. The totals above already include their covers, introductory pages, blank pages, and closing pages.


Engine Overhaul and Common Rail Diagnosis

These selected topics outline the repair and diagnostic coverage. Other included subjects range from generator drive-belt adjustment to checks for radio interference with electronic controls.

  • Internal engine repair: Cylinder-head and valve work, camshaft and timing-gear service, piston and connecting-rod inspection, crankshaft service, and cylinder-liner selection.

  • Common rail troubleshooting: Supply-pump and PCV diagnosis, rail-pressure faults, injector-drive circuit checks, and symptom-based investigation of starting and running problems.

  • Injector service functions: Injector balance testing, Q adjust correction-data rewriting, injector ID registration, and code upload/download using Tech2.

  • Cooling and lubrication: Thermostat testing, water-pump disassembly and assembly, oil-pump inspection, oil-cooler service, and oil-pan and oil-jet procedures.

  • Starting, charging, and preheating: Starter and generator disassembly, electrical inspection, charging-system diagnosis, and QOS/QOS-II checks.

  • Turbocharging and EGR: Turbocharger fault diagnosis and inspection, cooled-EGR operation, valve checks, and EGR position-learning requirements.

This set is suited to technicians familiar with diesel engine repair and electrical testing, with access to the diagnostic equipment and measuring tools specified for the work.

Engine Control and Injector Faults

Control explanations cover fuel-injection correction, starting Q adjustment, high-altitude compensation, overheat protection, and idle-speed regulation. DTC entries connect flash codes and circuit principles with fault-setting conditions, backup operation, and diagnostic test charts.

The fault-isolation charts and mechanical inspection limits support diagnosis, repair planning, and post-repair checks. Snapshot recording and plotted data also provide a way to examine intermittent faults alongside the conditions in which they occurred.

Injector calibration procedures are distinct from internal injector repair: the training guidance prohibits injector teardown and readjustment. EGR valve position learning is required after ECM or EGR-valve replacement to avoid EGR-related fault detection.

The fuel-system precautions identify removed high-pressure and injector pipes as non-reusable and specify assembly replacement for a faulty pressure limiter or flow damper. Working with high-pressure common rail fuel systems carries inherent risks; follow the manual’s pressure-release and electrical-isolation precautions.

Mechanical Inspection and Supporting Systems

Engine structural drawings and exploded component views accompany inspection limits for valves, guides, bearings, pistons, and cylinder liners. Compression testing and valve-clearance adjustment include measuring equipment and setup conditions.

The tool lists identify equipment such as compression-gauge adapter 1-8531-7019-0 and piston-ring setting tool 1-8522-1025-0. Component-specific torque illustrations and staged angle-tightening specifications accompany the assembly work.

Cooling-system diagnosis distinguishes overheating from overcooling. Lubrication coverage adds oil-pump gear-clearance checks, oil-cooler element inspection, and oil thermo-valve testing.

Starter inspection includes armature growler tests and commutator checks. Generator coverage adds rectifier and diode inspection, regulator checks, and bench testing.

Circuit References and Diagnostic Equipment

The System Control Schematic Diagram, ECM Wiring Diagram, ECM Pin Arrangement, engine-harness location views, and CKP/G-sensor waveform charts connect system operation with circuit-level diagnosis. Connector views support terminal identification during fault tracing.

The scan-tool sections distinguish Tech2/KW readings from CAN-tool displays, while the TIS 2000 section covers installation and setup. Breaker-box instructions describe voltage, resistance, and oscilloscope checks; incorrect pin or adapter-harness connections can damage the ECM or sensors.

Flash-tool operation refers to separate documentation rather than providing a complete flash-programming procedure.

A Look at Valve-Clearance and QOS-II Test Data

The 6WG1-TC valve-clearance section specifies 0.40 mm for both intake and exhaust valves with the engine cool.

For the mechanical volume’s QOS-II checks, the glow-plug resistance reference is approximately 4.3 Ω at room temperature. The same section supplies temperature-dependent resistance data for the thermo sensor.
