Iveco EuroCargo Tector 6–26t 2003 Repair Manual (P/N 603.93.231)
1,210 Pages • Printable PDF • 341.71 MB • Download
Iveco Models Covered & Key Technical Specifications
Models: EUROCARGO Tector
Models & Model Codes:
EUROCARGO Tector — ML60E13, ML60E13/P, ML60E13R, ML60E13R/P, ML60E13K, ML60E13KR, ML60E15, ML60E15/P, ML60E15R, ML60E15R/P, ML60E15K, ML60E15KR;
ML65E13, ML65E13/P, ML65E13R, ML65E13R/P, ML65E13K, ML65E13KR, ML65E15, ML65E15/P, ML65E15R, ML65E15R/P, ML65E15K, ML65E15KR;
ML75E13, ML75E13/P, ML75E13R, ML75E13R/P, ML75E13K, ML75E13KR, ML75E15, ML75E15/P, ML75E15R, ML75E15R/P, ML75E15K, ML75E15KR, ML75E17, ML75E17/P, ML75E17R, ML75E17R/P, ML75E17K, ML75E17KR, ML75E18, ML75E18/P, ML75E18R, ML75E18R/P, ML75E18K, ML75E18KR;
ML80EL15, ML80EL15/P, ML80EL15R, ML80EL15R/P, ML80EL17, ML80EL17/P, ML80EL17R, ML80EL17R/P;
ML80E17, ML80E17/P, ML80E17D, ML80E17R, ML80E17R/P, ML80E17DR, ML80E17DR/P, ML80E17K, ML80E17DK, ML80E17KR, ML80E17DKR, ML80E18, ML80E18/P, ML80E18/FP, ML80E18D, ML80E18D/P, ML80E18R, ML80E18R/P, ML80E18R/FP, ML80E18DR, ML80E18DR/P, ML80E18K, ML80E18DK, ML80E18KR, ML80E18DKR, ML80E21, ML80E21/P, ML80E21/FP, ML80E21D, ML80E21D/P, ML80E21R, ML80E21R/P, ML80E21R/FP, ML80E21DR, ML80E21DR/P, ML80E21K, ML80E21DK, ML80E21KR, ML80E21DKR;
ML90E17, ML90E17/P, ML90E17D, ML90E17D/P, ML90E17R, ML90E17R/P, ML90E17DR, ML90E17DR/P, ML90E17K, ML90E17DK, ML90E17KR, ML90E17DKR, ML90E18, ML90E18/P, ML90E18/FP, ML90E18D, ML90E18D/P, ML90E18R, ML90E18R/P, ML90E18R/FP, ML90E18DR, ML90E18DR/P, ML90E18K, ML90E18DK, ML90E18KR, ML90E18DKR, ML90E21, ML90E21/P, ML90E21/FP, ML90E21D, ML90E21D/P, ML90E21R, ML90E21R/P, ML90E21R/FP, ML90E21DR, ML90E21DR/P, ML90E21K, ML90E21DK, ML90E21KR, ML90E21DKR;
ML100E17, ML100E17/P, ML100E17D, ML100E17D/P, ML100E17R, ML100E17R/P, ML100E17DR, ML100E17DR/P, ML100E17K, ML100E17DK, ML100E17KR, ML100E17DKR, ML100E18, ML100E18/P, ML100E18/FP, ML100E18D, ML100E18D/P, ML100E18R, ML100E18R/P, ML100E18R/FP, ML100E18DR, ML100E18DR/P, ML100E18K, ML100E18DK, ML100E18KR, ML100E18DKR, ML100E21, ML100E21/P, ML100E21/FP, ML100E21D, ML100E21D/P, ML100E21R, ML100E21R/P, ML100E21R/FP, ML100E21DR, ML100E21DR/P, ML100E21K, ML100E21DK, ML100E21KR, ML100E21DKR;
ML110EL17, ML110EL17/P, ML110EL17R, ML110EL17R/P, ML110EL21, ML110EL21/P, ML110EL21R, ML110EL21R/P;
ML120EL17, ML120EL17/P, ML120EL17/R, ML120EL17R/P, ML120EL21, ML120EL21/P, ML120EL21R, ML120EL21R/P;
ML120E18, ML120E18/P, ML120E18/FP, ML120E18R, ML120E18R/P, ML120E18R/FP, ML120E18K, ML120E18KR, ML120E18D, ML120E18D/P, ML120E18DR, ML120E18DR/P, ML120E18DK, ML120E18DKR, ML120E24, ML120E24/P, ML120E24/FP, ML120E24R, ML120E24R/P, ML120E24R/FP, ML120E24K, ML120E24KR, ML120E24D, ML120E24D/P, ML120E24DR, ML120E24DR/P, ML120E24DK, ML120E24DKR, ML120E28, ML120E28/P, ML120E28/FP, ML120E28R, ML120E28R/P, ML120E28R/FP, ML120E28K, ML120E28KR;
ML130E18, ML130E18/P, ML130E18/FP, ML130E18R, ML130E18R/P, ML130E18R/FP, ML130E18K, ML130E18KR, ML130E18RS*, ML130E18D, ML130E18D/P, ML130E18DR, ML130E18DR/P, ML130E18DK, ML130E18DKR, ML130E24, ML130E24/P, ML130E24/FP, ML130E24R, ML130E24R/P, ML130E24R/FP, ML130E24K, ML130E24KR, ML130E24D, ML130E24D/P, ML130E24DR, ML130E24DR/P, ML130E24DK, ML130E24DKR, ML130E28, ML130E28/P, ML130E28/FP, ML130E28R, ML130E28R/P, ML130E28R/FP, ML130E28K, ML130E28KR;
ML140E18, ML140E18/P, ML140E18R, ML140E18R/P, ML140E18K, ML140E18/KR, ML140E24, ML140E24/P, ML140E24/FP, ML140E24R, ML140E24R/P, ML140E24R/FP, ML140E24/K, ML140E24KR, ML140E28, ML140E28/P, ML140E28/FP, ML140E28K, ML140E28KR;
ML150E18, ML150E18/P, ML150E18R, ML150E18R/P, ML150E18K, ML150E18RS*, ML150E18KR, ML150E24, ML150E24/P, ML150E24/FP, ML150E24R, ML150E24R/P, ML150E24R/FP, ML150E24K, ML150E24KR, ML150E28, ML150E28/P, ML150E28/FP, ML150E28R, ML150E28R/P, ML150E28R/FP, ML150E28K, ML150E28KR;
ML180E21, ML180E21/P, ML180E21/R, ML180E21R/P, ML180E21K, ML180E21KR, ML180E24, ML180E24/P, ML180E24R, ML180E24R/P, ML180E24K, ML180E24KR, ML180E28, ML180E28/P, ML180E28R, ML180E28R/P, ML180E28K, ML180E28KR;
ML180EL21, ML180EL21/P, ML180EL21R, ML180EL21R/P, ML180EL24, ML180EL28, ML180EL28/P, ML180EL28R, ML180EL28R/P;
ML260E28KE;
ML320E28T, ML320E28T/P.
Sub-models / Variants: 4x2 configuration, 6x4 configuration (ML260E28KE), 6-26t GVW classes, Double cabin (D), Dump body (K), Towing vehicles (R), Tractor (T: ML320E28T, ML320E28T/P), Road Sweeper (RS*: ML130E18RS*, ML150E18RS*), rear air suspension (P), front and rear air suspension (FP)
Engine Variants: EUROCARGO Tector 4-cylinder: F4AE0481D, F4AE0481C, F4AE0481A; 6-cylinder: F4AE0681E, F4AE0681D, F4AE0681B, F4AE0681A
Gearbox Variants: EUROCARGO Tector, depending on chassis specification: manual 2855.5, 2855.6, 2865.6, 2870.9, 2895.9 and Eaton FSO 5206B; automatic Allison MD 3060P
Gearbox Serial Breaks: Earlier and revised anti-release push-rod and external control designs (LHD = left-hand drive; RHD = right-hand drive):
2855.5 — LHD: earlier design up to No. 9210157, revised design from No. 9210158; RHD: earlier design up to No. 9282008, revised design from No. 9282009.
2855.6 — LHD: earlier design up to No. 9305798, revised design from No. 9305799; RHD: earlier design up to No. 9305804, revised design from No. 9305805.
2870.9 — LHD: earlier design up to No. 9369189, revised design from No. 9369190; RHD: earlier design up to No. 9369209, revised design from No. 9369210.
2895.9 — LHD: earlier design up to No. 9369267, revised design from No. 9369268; RHD: earlier design up to No. 9389775, revised design from No. 9389776.
Model Year: 2003
-
Engine Configuration: 4-cylinder or 6-cylinder in-line, 4-stroke diesel, direct injection
-
Displacement: 3900 cm³ (3.9 liters) for 4-cylinder engine
-
Max Power: 95–125 kW (130–170 HP) for 4-cylinder variants
-
Max Torque: 430–560 N·m (43.9–57.1 kgm) at 1200 rpm for 4-cylinder variants
-
Compression Ratio: 17:1
-
Rated Speed: 2700 rpm for 4-cylinder variants
-
Cooling System: Thermostat opening temperature 82.2°C
Iveco Manual Features & Selected Content Preview
This factory repair manual covers the 2003 Iveco EuroCargo Tector 6–26t range with F4AE0481D/C/A and F4AE0681E/D/B/A engines. P/N 603.93.231 identifies the first edition, dated July 2003.
PDF Search, Bookmarks and Diagram Detail
Finding information: The main text is searchable, although some pages have text-encoding or image-text limitations. Embedded bookmarks cover all thirteen sections and many individual procedures. Small wiring-diagram labels require zooming.

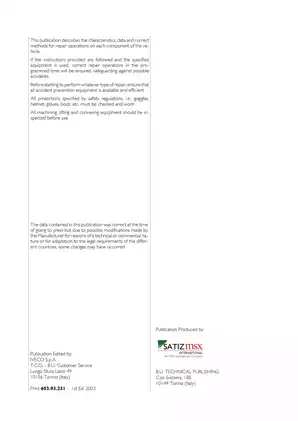

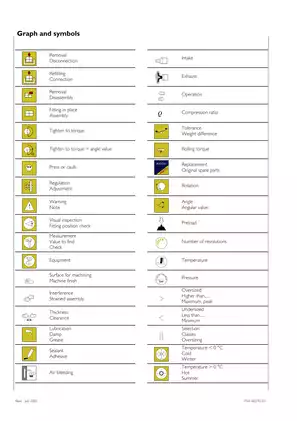

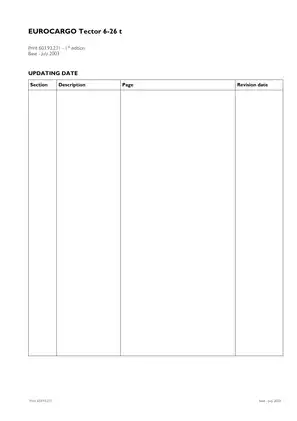

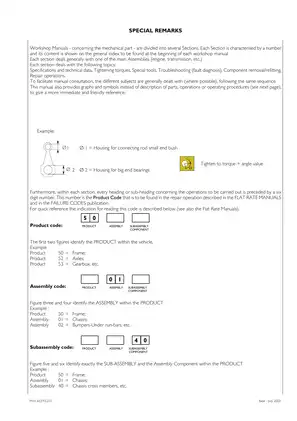

Supplied as one English-language, printable 1,210-page PDF, including eight preliminary pages containing the cover, publisher’s notes, symbols, updating record, section index, and blank front matter.
Tector Engine, Drivetrain and Chassis Repairs
The following selected repair topics show the manual’s coverage rather than its complete contents. Other subjects include wheel balancing and protective body treatments.
-
Engine repair: Step-by-step engine removal, cylinder-head repair, injector replacement, timing-gear installation, internal inspection, and engine reassembly.
-
Common-rail diagnosis: EDC7 blink-code tables, symptom-based troubleshooting charts, electrical checks, and guidance for diagnosis with Iveco electronic instruments.
-
Clutch and transmission: Clutch inspection, hydraulic-control bleeding, pedal adjustment, manual gearbox overhaul, and Allison control-module component replacement.
-
Axles and driveline: Propeller-shaft checks, wheel-hub service, differential overhaul, bearing adjustment, and crown-wheel-and-pinion contact checks.
-
Suspension and steering: Mechanical and pneumatic suspension repairs, ECAS fault diagnosis, suspension wiring diagrams, and hydraulic power-steering checks and adjustments.
-
Brake systems: Air/hydraulic and pneumatic circuit diagnosis, ABS/EBL descriptions, disc-caliper overhaul, rear-drum repair, and hydraulic-circuit bleeding.
The depth of the overhaul procedures, common-rail diagnostic data, and component-level assembly specifications makes this manual best suited to professional truck technicians and experienced heavy-vehicle repairers with access to suitable lifting, measuring, and electronic diagnostic equipment.
F4AE Engine Overhaul and Common-Rail Diagnosis
The F4AE0681 overhaul chapter uses the four-cylinder F4AE0481 procedures except where six-cylinder differences are specified. Inspection information covers cylinder bores, crankshaft journals, bearings, pistons, valve guides, and valve seats, with component-specific tightening data.
Exploded illustrations and section views help distinguish related components before parts are removed or ordered. Timing references show gear alignment and fitting positions. The timing-case instructions also warn that excess sealant can clog lubricant passages and compromise engine lubrication.
Fuel-system scope: The manual explains the Bosch CP3 pump, rail, injectors, pressure regulation, and low- and high-pressure fuel circuits, supported by a common-rail hydraulic layout. Several high-pressure fuel components are designated for replacement rather than internal overhaul; injector nozzle bodies and electromagnets must not be disassembled.
Fault isolation: Blink-code tables connect reported faults with possible causes, operating symptoms, and recommended checks. Separate symptom charts address mechanical and hydraulic problems. The manual treats these guides as support for MODUS, IWT, or IT2000 diagnosis, rather than a replacement for those instruments.
Gearbox Controls, Differentials and Wheel Hubs
The manual gearbox chapters include shaft and synchronizer work, bearing preload or end-play adjustment, and external control assemblies. Gearbox-number references distinguish earlier and revised control designs before the corresponding anti-release push-rod and selector procedures are selected.
The Eaton FSO 5206B chapter includes internal disassembly and assembly. Pneumatic epicyclic-control diagrams accompany the range-change gearbox material.
Allison coverage: The MD 3060P material covers operating-fault charts and replacement of control-module components, sensors, solenoids, filters, gaskets, and seals. Fault-code diagnosis is referred to a separate Allison manual that is not included.
Rear-axle chapters extend to differential positioning, adjustment calculations, and gear-tooth contact patterns. Differential section views and inspection limits support component assessment and assembly setup, including the Meritor tandem-axle arrangements.
Air Suspension, Steering and Brake Variants
ECAS coverage explains height sensors, electro-pneumatic distributors, chassis leveling, warning indications, and fault checks. Separate rear-suspension and full-air-suspension vehicle wiring diagrams show the different electrical arrangements.
The steering section distinguishes ZF 8090/8095/8098 and TRW TAS 30/TAS 55 units. It includes hydraulic-limiter adjustment, circuit bleeding, steering-wheel clearance measurement, and maximum-pressure checks.
Brake configuration matters: The manual distinguishes air/hydraulic systems on 6–10t vehicles from pneumatic systems on larger chassis. Repair sections identify PAN 17 calipers for 110EL/120EL models, Bendix 3700 calipers for the listed 120E–150E/320E applications, and Knorr calipers for 180E/260E28KE applications. Vehicle-specific braking diagrams show circuit arrangements and component connections.
Work involving pneumatic brake circuits must be performed only after the system has been safely depressurized. Engines, transmissions, and axle assemblies also require appropriate support and lifting equipment before removal or disassembly.
Cab, Frame and Scheduled Service
Cab coverage includes anchoring, suspension mounts, and the hydraulic tilting system. Frame geometry checks appear alongside manufacturer restrictions on drilling and welding.
Maintenance schedules distinguish operating conditions and connect M1–M4 services with EP1–EP5 additional operations. Lubricant specifications, fluid capacities, service checks, and adjustment references support routine workshop planning.
A Preview of Valve and Piston Inspection Data
For the F4AE0481 four-cylinder engine, the tappet-adjustment section specifies working rocker-to-valve clearances of 0.25 ± 0.05 mm at the intake and 0.51 ± 0.05 mm at the exhaust.
The engine-assembly checks give piston protrusion at TDC as 0.28–0.52 mm above the engine-block surface, measured after refitting the connecting rod and piston assemblies.
