2004 Iveco Eurocargo Tector 6-10t Truck Repair Manual (P/N 603.93.381)

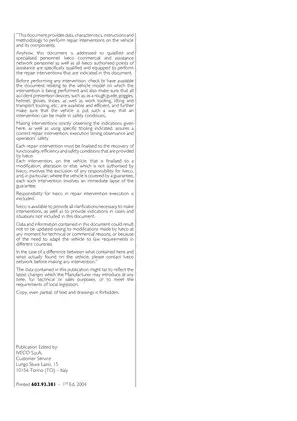

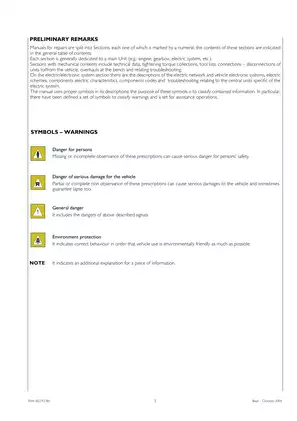

Iveco repair manual Print 603.93.381, first edition October 2004, covers the Eurocargo Tector 6–10t range and its model-specific mechanical and electrical systems.

PDF Search, Bookmarks, and Circuit Detail

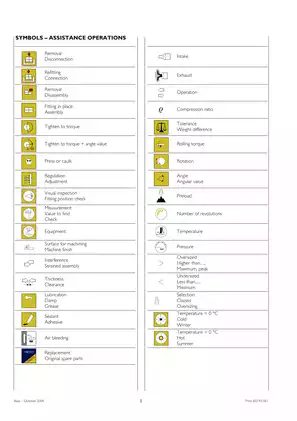

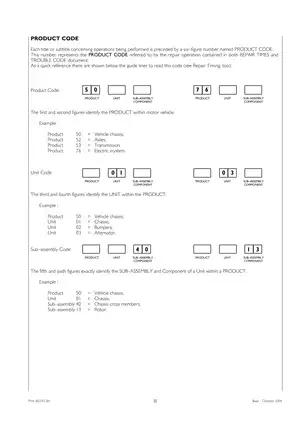

Search and diagram navigation: Most text supports searching, and embedded bookmarks provide chapter and component navigation. Search is unreliable on several cab and maintenance pages, although their text remains visually readable. Small wire codes, connector numbers, and pin labels in the EDC, ECAS, and CAN circuit cards require zooming.

One printable, English-language 1,184-page PDF contains 14 opening pages and 1,170 section pages. The total includes the cover, preliminary material, section index, and 44 blank or header/footer-only pages distributed throughout the file.

Engine Overhaul, Drivetrain Repair, and Electronic Fault Tracing

These selected coverage highlights focus on major shop work. The manual also provides tire-balancing procedures and AIR TOP 2000 auxiliary-heater information.

• Engine repair: Engine removal, cylinder-head work, crankshaft and piston inspection, valve servicing, timing-gear installation, and component-specific tightening sequences.

• Clutch and gearboxes: Clutch hydraulic-control service and step-by-step disassembly, inspection, reassembly, and bearing adjustment for 2855S.5, 2855S.6, 2865S.6, and 2870S.9 gearboxes.

• Driveline and axles: Dana propeller-shaft arrangements, shaft checks, wheel-hub service, and differential repair for 4517 and 4521 rear axles.

• Suspension and steering: Mechanical and pneumatic suspension repairs, ECAS operation, and hydraulic steering-limiter adjustment for TRW TAS 30 and ZF 8090 units.

• Brake systems: Knorr Air Processing Unit checks, Girling/Brembo caliper repairs, air/hydraulic circuit diagnosis, and brake-system bleeding procedures.

• Electrical diagnosis: Bosch EDC7, Body Controller, Immobilizer, ABS, and CAN coverage, with connector pinouts, fault-code tables, and system-specific wiring diagrams.

The manual is written for qualified, specialized personnel with the workshop equipment and lifting tools required for the documented repairs.

Engine Inspection and Common-Rail Service

The F4AE0481 section covers bench overhaul, bearing-clearance measurements, piston protrusion, valve-seat work, and cylinder-head assembly. F4AE0681 procedures refer back to the four-cylinder instructions where the work is shared, then identify the six-cylinder differences, including cylinder-head torque-angle tightening.

Cooling and lubrication coverage includes water-pump checks, thermostat information, the heat exchanger, and oil-pressure relief components. Tool lists identify equipment such as spring tester 99305047 and engine-overhaul stands.

The CP3 high-pressure pump body is not an overhaul item; permitted pump work is limited to pressure-regulator and drive-gear replacement. Common-rail warnings require replacement of removed high-pressure pipes and fuel manifolds; reuse or incorrect seating can cause leakage at the injector connection.

Gearbox Bearings and Axle Setup

The gearbox chapters explain secondary-shaft bearing preload, adjustment-ring selection, synchronizer inspection, and shaft assembly. Having the related bearing settings and tightening sequences together supports planning and checking internal repairs; the 2870S.9 section also covers its epicyclic reduction gear and control mechanism.

Rear-axle procedures distinguish 4517 and 4521 assemblies during differential disassembly and bearing work. Front-axle coverage addresses 5833 and 5833/1 units, including wheel alignment, kingpin checks, and wheel-hub bearing adjustment.

Brake Circuits and Steering Limiters

Brake troubleshooting connects symptoms with checks of the compressor, APU, control valves, and air/hydraulic converters. Caliper instructions cover lining replacement, disc inspection, overhaul, and refitting, supported by Girling/Brembo hydraulic-operation diagrams.

Steering procedures distinguish ZF limiter adjustment from the TRW automatic-setting checks. Hydraulic circuit bleeding and pressure-test arrangements are documented with the associated gauges and test equipment.

Control Units, Fault Codes, and Wiring

The Central Interconnecting Unit, Body Controller, and Immobilizer sections describe connections and system operation. Troubleshooting tables link faults to visible symptoms, possible causes, recommended repairs, and diagnostic notes.

MODUS, IT 2000, and E.A.SY. are identified for diagnosis; thorough electronic fault investigation requires suitable diagnostic equipment. Visual references include the common-rail hydraulic layout, gearbox sections, brake pneumatic circuits, EDC Connector B wiring, ECAS FP wiring, and the CAN-line circuit card.

Cab Repairs and Maintenance Planning

Body and chassis coverage includes frame-geometry checks, cab anchoring, hydraulic cab-tilt components, windshield replacement, and instrument-panel removal. The chassis-welding precautions address the risk of damage to electronic control units.

Maintenance schedules distinguish operating duties and planned M services from additional EP operations. Related instructions cover filters, lubrication, fluid checks, and hydraulic-system servicing.

Work on these trucks involves high-pressure fuel systems and heavy assemblies. Follow the manual’s precautions for vehicle support, cab tilting, and depressurizing hydraulic and pneumatic circuits.

A Sample of Cooling and Lubrication Specifications

For both F4AE0481 and F4AE0681 engines, the cooling tables list thermostat opening beginning at 81 ± 2 °C and maximum opening at 96 °C.

The lubrication tables specify warm-engine oil pressure of 1.2 bar at idle and 3.8 bar at peak rpm, alongside the related lubrication-system information.
