IVECO NEF Engines 2004 Technical & Repair Manual (P/N P2D32N001E)
788 Pages • 1 Printable PDF (English) • Download
Iveco Models Covered & Key Technical Specifications
Models: NEF F4BE, IVECO NEF F4GE, IVECO NEF F4CE, IVECO NEF F4AE, IVECO NEF F4HE, IVECO NEF F4DE
Models & Model Codes:
NEF F4BE — F4BE0454A*D6, F4BE0454B*D6, F4BE0484D*D6, F4BE0484E*D6, F4BE0484F*D6, F4BE0684A*D4, F4BE0684B*D4, F4BE0684D*D4, F4BE0684H*D4, F4BE0684K*D4, F4BE0684L*D6, F4BE0684M*D6, F4BE0684N*D6
NEF F4GE — F4GE0404A*D6, F4GE0404B*D6, F4GE0454A*D6, F4GE0454B*D6, F4GE0454E*D6, F4GE0454G*D6, F4GE0454H*D6, F4GE0484C*D6, F4GE0484G*D6, F4GE0604A*D6, F4GE0654A*D6, F4GE0684C*D6, F4GE0684F*D6, F4GE0684G*D6, F4GE0684Q*D6
NEF F4CE — F4CE0304A*D6, F4CE0304B*D6, F4CE0354A*D6, F4CE0354C*D6, F4CE0404A*D6, F4CE0404C*D6, F4CE0404D*D6, F4CE0454A*D6, F4CE0454C*D6, F4CE0454D*D6, F4CE0454E*D6, F4CE0484B*D6, F4CE0684C*D6. Timing-specific variants: F4CE0304A*D670, F4CE0354A*D621.
NEF F4AE — F4AE0484B*D1, F4AE0684C*D1
NEF F4HE — F4HE0684E*D1, F4HE0684F*D1, F4HE0684J*D1
NEF F4DE — F4DE0484A*D1, F4DE0684A*D1, F4DE0684B*D1
Sub-models / Variants: 3-cylinder (F4CE), 4-cylinder, 6-cylinder, Mechanical Injection (F4BE, F4GE, F4CE), Common Rail (F4AE, F4HE, F4DE), Industrial applications, Turbocompressed, With intercooler, Without intercooler
Model Year: 2004
-
Bore: 102 mm (F4BE, F4AE); 104 mm (F4GE, F4CE, F4HE, F4DE)
-
Compression ratio: 17.5:1 (F4BE, F4GE, F4CE); 17:1 (F4AE, F4HE, F4DE)
-
Thermostat opening start: 81 ± 2 ºC (F4BE, F4GE, F4CE)
-
Injection pump type: VE 4/12 F (4-cylinder rotary-pump versions of F4BE/F4GE and F4CE)
-
Idle oil pressure: 0.70 bar (warm engine; F4GE0404, F4GE0454, F4GE0484, F4GE0654, F4GE0684)
-
Flywheel bolt tightening: 30 ± 4 Nm, followed by 60º ± 5º (F4BE/F4GE rotary-pump versions)
-
Piston-to-cylinder clearance: 0.252–0.294 mm (F4GE); 0.235–0.273 mm (F4BE)
Iveco Manual Features & Selected Content Preview
IVECO Motors’ NEF Engines Technical and Repair Manual, P/N P2D32N001E, first edition, August 2004, covers industrial F4BE/F4GE, F4CE, F4AE/F4HE, and F4DE engines in separate parts. Mechanical-injection coverage includes four- and six-cylinder F4BE/F4GE engines and three-, four-, and six-cylinder F4CE engines; the common-rail parts cover four- and six-cylinder configurations.
PDF Search, Bookmarks and Diagram Detail
Text search and connector detail: Searchable text is available throughout the four engine parts, with embedded bookmarks for sections and repair topics. Small connector pin numbers and dense cable-code tables are best read with zoom. The text is in English, with occasional Italian entries in diagnostic tables.

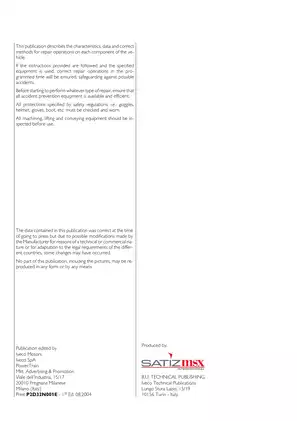

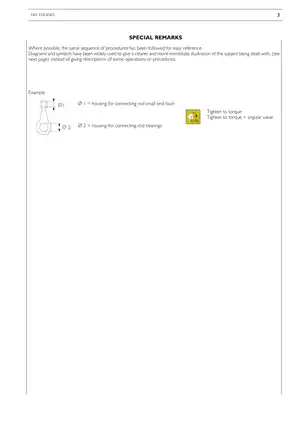

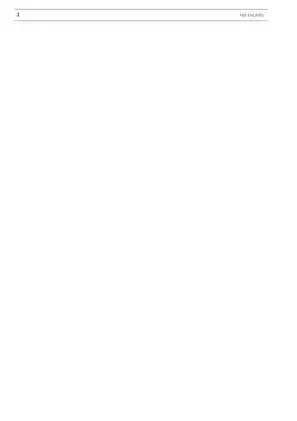

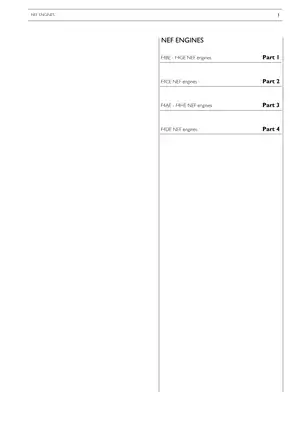

The download contains one printable, 788-page PDF. This total includes six opening pages—cover, publication information, general index, a blank page, remarks, and symbols—plus the four engine parts and their safety appendices.
Engine Overhaul, Fuel Systems and EDC7 Diagnosis
The following topics are selected coverage highlights, rather than a complete contents list. Additional material includes cylinder-compression test equipment and crankshaft measurement-record tables.
-
Mechanical fuel systems: Rotary-pump and six-cylinder in-line-pump arrangements, with pump removal and installation, presetting, timing, KSB cold-advance equipment, injectors, priming pumps, bleeding, and power takeoff service.
-
Common-rail systems: Low- and high-pressure circuits, CP3 pump operation, rail pressure control, flow limiters where fitted, electro-injectors, and the injector-return pressure limiter.
-
Engine repair: Step-by-step procedures for stand preparation, application-component removal and installation, timing-case and front-cover work, cylinder-head service, and balance-mass timing where fitted.
-
Bench overhaul: Block and camshaft inspection, crankshaft and bearing checks, piston and connecting-rod service, valve-guide and seat work, and cylinder-head reassembly.
-
Fault finding: Mechanical-engine symptom/cause/remedy charts, EDC7 blink codes, PT-01 tester functions, live parameters, active tests, and failure-code tables for software versions 3.3_1 and 4.1_2.
-
Illustrated references: Lubrication and cooling layouts, air-induction/boost diagrams, mechanical-pump feed schematics, common-rail fuel layouts, EDC7 connector views, and component sections and assembly illustrations.
The material is suited to trained diesel technicians and engine rebuilders with engine-lifting, precision-measuring, timing, and electronic diagnostic equipment. IVECO specifies qualified personnel and the required tooling for disassembly and overhaul work.
Application Differences and Fuel-System Limits
The duty sections distinguish oil pans, power takeoffs, priming-pump arrangements, turbo hardware, filter and heat-exchanger positions, belt tensioners, and cold-climate fuel-filter equipment. Maintenance procedures cover final checks, tappet adjustment, drive-belt service, oil and fuel-filter replacement, and blow-by filter service on applicable common-rail versions.
IVECO-to-commercial-code tables identify selected N45 MNA, N45 MNS, N45 MNT, N67 MNA, N67 MNT, N40 ENT, and N60 ENT versions. These distinctions help match the engine build to the appropriate procedures and specifications before work begins.
Pump and injector scope: Mechanical injection-pump instructions focus on removal, installation, presetting, timing, and bleeding; bench calibration is directed to specialist service. The common-rail sections explain CP3 pump and electro-injector operation, but prohibit internal overhaul of those units. The mechanical feeding pump must not be separated from the high-pressure pump.
Electrical Diagnosis and Engine Connections
EDC7 connector tables pair pin assignments with cable codes and component functions. Sensor descriptions and fault charts support checks of the engine harness, injector circuits, temperature and pressure signals, and fuel-pressure control.
The troubleshooting material combines fault-memory information with component tests and symptom-based checks, including faults that do not produce a blink code. This lets a technician compare the reported symptom with the relevant electrical or fuel-system checks instead of treating a stored code as a complete diagnosis.
Overhaul Measurements and Factory Tools
The overhaul chapters explain cylinder-block measurement and machining limits, cam-lift and alignment checks, camshaft-bush replacement, crankshaft journal and crankpin inspection, bearing selection, piston protrusion, ring and pin clearances, and connecting-rod twist and bend checks.
Cylinder-head work includes wet leak testing, surface inspection, valve and guide clearances, seat regrinding or replacement, spring testing, and head installation. Reference tables provide tightening sequences, torque-and-angle specifications, wear limits, lubricant grades, sump and filter capacities, performance data, and maintenance intervals.
Numbered equipment includes revolving stand 99322205, lifting rig 99360595, top-dead-center tool 99395097, rotary-pump timing holder 99395100, injector remover 99342101, injector measurement adapter 99331052, multimeter 99395872, and PT-01 tester 8093731.
Machine Interfaces and Repair Cautions
Coverage follows engine families and build codes. Machine-specific engine removal and installation require the relevant equipment manual; radiator, fuel-tank, and chassis arrangements depend on the application. Electrical coverage centers on engine components and EDC7 connections rather than a complete host-machine wiring system.
The mechanical-pump timing instructions warn that excessive flywheel force can shear the engaged timing pin. Common-rail procedures prohibit reuse of removed high-pressure pipes and warn that water or dirt can quickly damage fuel-system components.
High-pressure fuel, rotating assemblies, and engine lifting require the specified isolation, protective equipment, and rated shop gear before repair work begins.
A Preview of EDC7 Sensor Test Data
For F4AE/F4HE engines, the electrical section specifies 2.5 kΩ at 20°C for both the fuel-temperature and coolant-temperature sensors. Their descriptions identify the corresponding ECU connections, linking the resistance data to the relevant circuits.
The rail-pressure sensor uses a 5 V supply. Its connector view identifies ground, signal, and supply terminals alongside the component description.
