Yamaha F40B Outboard Service & Repair Manual, 1999 (P/N 67C-28197-Z9-C1)

This Yamaha F40B service manual, P/N 67C-28197-Z9-C1, is the first edition from September 1999. It covers worldwide models F40BMHD, F40BWHD, F40BED and F40BET, along with their North American designations F40MH, F40ER and F40TR.

Searchable Text, Chapter Bookmarks and Wiring Detail

Search and diagram access: Service text is searchable, and embedded language and chapter bookmarks provide navigation. Small wire-color codes and connector-pin numbers in the harness drawings and color wiring diagrams require zooming for comfortable reading.

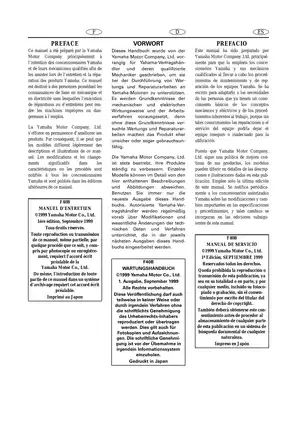

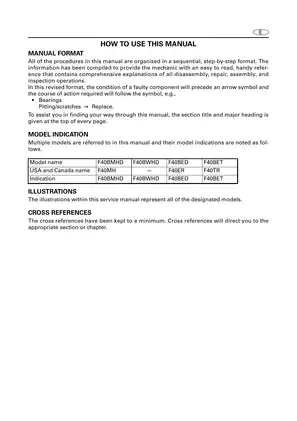

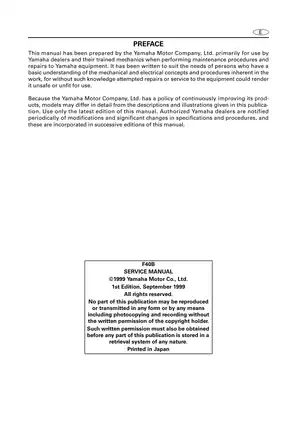

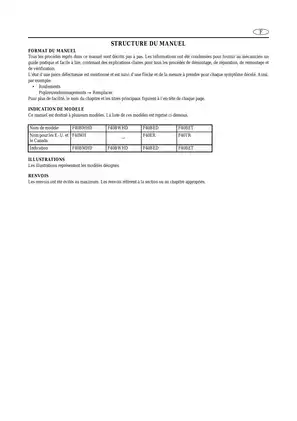

One printable PDF contains 537 pages with English, French, German and Spanish content. This total includes two original cover pages, 14 introductory pages and three blank pages.

Powerhead, Gearcase and Trim-System Service

These selected service topics outline the coverage rather than reproduce the complete contents. Further topics include anode inspection and Swiss exhaust-gas control procedures.

• Power unit: Step-by-step procedures for powerhead removal, cylinder-head service, timing-belt installation, piston inspection and crankshaft repair.

• Fuel and controls: Carburetor disassembly and assembly, synchronization, fuel-pump inspection, throttle and shift-cable adjustment, and dash-pot setting.

• Lower unit and cooling: Water-pump service, shift-rod and propeller-shaft work, drive-shaft removal, gear shimming and backlash measurement.

• Bracket and trim assemblies: Tiller-handle and steering-arm service, clamp-bracket removal, tilt-cylinder disassembly, gear-pump service and hydraulic bleeding.

• Electrical testing: Ignition and charging diagnosis, starter-motor inspection, PrimeStart enrichment checks, and ET power trim and tilt electrical tests.

• Workshop references: Maintenance interval charts, exploded assembly views, hose-routing drawings, wiring diagrams, component layouts, tightening tables and trouble-analysis charts.

Written primarily for Yamaha dealers and their trained mechanics, the manual assumes a working understanding of mechanical and electrical service procedures.

Powerhead Inspection and Bearing Selection

The main-bearing selection tables and multi-stage tightening information support powerhead inspection and reassembly at the bench. Plastigauge measurement procedures and bearing-color tables connect measured clearances with the crankcase and connecting-rod markings used for bearing selection.

Internal repair coverage extends to valve-guide replacement, valve-seat refacing and piston-to-cylinder assessment. Timing-belt alignment illustrations and thermostat operating checks support valvetrain and cooling-system work. The recoil-starter section covers the sheave drum, starter rope and spiral spring.

Carburetor and Control Adjustments

Carburetor synchronization uses a vacuum gauge set with separate reference readings for the individual carburetors. Float-height instructions explain the needle-valve contact condition, while dash-pot adjustment addresses stalling during rapid deceleration.

Fuel-pump coverage includes diaphragm inspection and assembly drawings. The hose-routing view identifies the fuel, blowby and PrimeStart connections.

Lower-Unit Shimming and Seal Checks

Separate shimming sections address USA/Canada and other markets. Pinion, forward-gear and reverse-gear selection diagrams accompany the measurements and calculations, with different requirements for reused components, replacement internal parts and a replacement case.

Backlash procedures include the measuring-tool arrangement and shim-adjustment tables. The gearcase leak-test section also warns that excessive test pressure can damage the oil seals.

Bracket and Trim Hydraulics

Clamp-bracket procedures distinguish MHD/WHD/ED assemblies from ET assemblies. The nitrogen-filled shock absorber has inspection and replacement guidance, with an explicit warning against opening it.

Power trim and tilt coverage reaches the tilt ram, free piston, pump housing and internal valve components. Bleeding procedures cover both the installed unit and the serviced assembly. Hydraulic service cautions explain how fibers from wiping materials can enter the system and cause malfunctions.

Electrical Fault Tracing

Harness drawings distinguish MHD, WHD/ED 10-pin, ED 7-pin and ET configurations. The separate color F40BET wiring diagram identifies the trim relay, motor, trailer switch and trim-sensor connections.

The Trouble Analysis Chart connects starting, idling, overheating, charging and tilt complaints with the relevant systems. “Trouble Shooting for Peak Voltage” provides ignition fault-tracing charts; the electrical tests specify circuit conditions and the peak-voltage adapter YU-39991/90890-03169.

Service Precautions

Marine engine work involves pressurized hydraulic fluid, flammable fuel vapors and rotating assemblies. The recoil-starter section also warns about spiral-spring ejection during disassembly. Consult a qualified marine mechanic when the work exceeds your training or equipment.

Cylinder-Head, Valve and Ignition Data Preview

Cylinder-head inspection specifies a warpage limit of 0.1 mm (0.004 in). For valve-clearance checks on a cold engine, the intake specification is 0.2 ± 0.05 mm and the exhaust specification is 0.3 ± 0.05 mm.

The electrical specification table lists ignition timing at 5–28° BTDC.
