New Holland L185, C185 Skid Steer & Compact Track Loader 2007 Parts Catalog (P/N 87659759 ML)

New Holland parts catalog P/N 87659759 ML, Revision 1, issued October 2007, covers the L185 skid steer and C185 compact track loader (North American and European variants, 2005–2007). Individual figure sheets include updates through April 2008.

Searchable Parts Lists and Illustrated References

Text search and illustration detail: Catalog listings support text search, while the illustrated catalog-use examples have no searchable text. There are no embedded PDF bookmarks. Some tiny markings within the fuse-block illustration remain indistinct when enlarged.

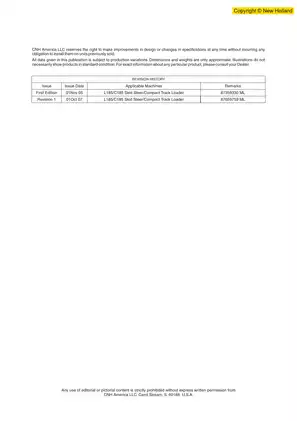

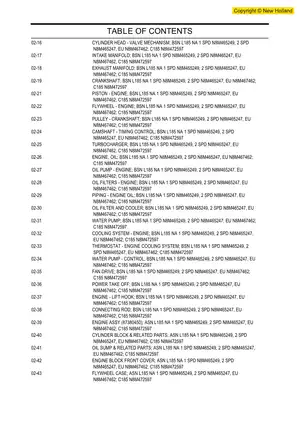

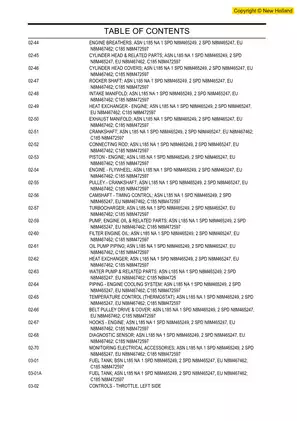

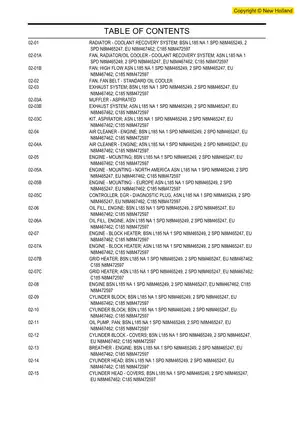

Supplied as one printable, 1,392-page PDF. The total includes the cover, one revision-history page, 12 contents pages, 32 multilingual introductory pages, and a 45-page part-number index.

Engine, Hydrostatic Drive, and Loader Component Listings

The following highlights are a selection of the catalog’s contents. Further illustrated entries include the cab jack kit and noise-control equipment.

• Engine and fuel system: Exploded views and parts listings for engine internals, turbochargers, cooling assemblies, injection pumps, injectors, fuel piping, and filters.

• Hydrostatic drive: Tandem-pump and drive-motor breakdowns, including M46 and Rexroth AA22 pump references, final drives, and transmission-centering components.

• Loader hydraulics: Standard and high-flow plumbing, pilot controls, ISO-pattern joystick valve kits, EHPV spool-end groups, and cylinder seal-kit listings.

• Electrical components: Console, diagnostic-plug, harness, fuse-block, lighting, and instrument-cluster parts views, with separate entries for relevant cab and regional configurations.

• Brakes and running gear: Hydraulic brake components, European on-road brake equipment, L185 wheels, and C185 tracks, rollers, idlers, and tensioner parts.

• Cab and attachments: Standard and deluxe cab components, heater and air-conditioning assemblies, boom locks, loader buckets, cutting edges, and pallet forks.

This catalog is suited to owners, parts-counter staff, and service personnel who can match machine configuration and illustrated callouts before ordering replacement parts.

Parts Selection Across Production Changes

The exploded views and matching parts lists provide a practical breakdown for identifying components across the machine and preparing a parts order for planned work. Figure notes distinguish kit contents, replacement numbers, and items marked NSS—Not Serviced Separately.

Separate BSN and ASN figures distinguish earlier and later cooling systems, engine installations, and chassis arrangements. Component-specific serial breaks also identify changes to the inline fuel filter and C185 drive motors; these apply to the listed components rather than defining the catalog’s entire coverage.

Engine Assemblies and Hydraulic Component Detail

Engine entries distinguish the earlier assembly from the later F5C installation. The later engine-assembly listing identifies short-engine, overhaul-kit, and top-gasket-kit options, and directs the reader to separately listed alternator and belt components.

Hydraulic illustrations break down pumps, valve groups, cylinders, and associated seal kits. The Transmission Centering figures identify linkage and hardware; they are parts references rather than adjustment instructions. Certain replacement hand- and foot-control valves are specifically listed without a service breakdown at the time of publication.

This is a parts-identification reference. Its exploded views do not replace step-by-step cylinder overhaul, final-drive rebuilding, or troubleshooting procedures.

Cab Electrical Parts and Heater-Valve Fitment

The Electric Cab—Main Harness and Fuse Block and Electric, Main views show component arrangements and numbered parts callouts. These are electrical parts illustrations rather than circuit-level wiring diagrams.

Cab-heater listings distinguish T-pattern and square-pattern water-valve connectors. The replacement entry for valve 87520822 specifies an adapter harness, making connector arrangement an important part of matching heater components.

For work involving raised loader arms or pressurized hydraulics, follow the machine’s service instructions and safety procedures.

Selected Cylinder Seal and Bushing Dimensions

For the bucket cylinder, wear ring 9843627 is listed with a 1-1/4-inch inside diameter and 1/2-inch thickness. The corresponding figure links it to the cylinder assembly and seal-kit contents.

The boom-cylinder listing specifies bushing 86521725 at 2.38 inches inside diameter and 2.56 inches outside diameter. These are catalog dimensions for identifying parts, rather than wear limits or workshop adjustment specifications.
