1986–2003 Suzuki DT150/DT200 Outboard Motor Service Manual

This Suzuki service manual covers the 1986–2003 DT150/DT200 two-stroke outboard range and its 2.7-liter V6 configuration, with additional coverage for DT175, DT225, DT150TC, DT150STC and DT200TC models. The publication carries Suzuki Motor Corporation's 2001 copyright.

Text search and diagram detail: Existing OCR supports text searches across much of the PDF, but recognition errors can prevent matches. Embedded bookmarks lead to the main sections and model supplements. Some small wiring labels remain difficult to read even when enlarged.

• Powerhead repair: Removal, disassembly, internal inspection and reassembly, with piston-to-cylinder clearances, crankshaft inspection limits and component-specific tightening torque tables.

• Fuel systems: Carburetor synchronization and fuel-pump service, plus Electronic Fuel Injection testing, vapor separator inspection, injector checks and fuel-pressure diagnosis.

• Lubrication and cooling: Oil injection pump bleeding and output checks, oil-flow sensor testing, water-pump service, thermostat inspection and cooling-system troubleshooting.

• Ignition and electrical diagnosis: IC and Micro-Link ignition tests, Suzuki Monitor checks, Throttle Valve Sensor adjustment, charging-system inspection and starter-motor repair.

• Lower unit service: Gearcase disassembly, propeller-shaft installation, bearing and seal inspection, gear shimming, backlash adjustment and pressure testing.

• Power Trim and Tilt: Hydraulic pump and cylinder diagnosis, valve-body service, motor and relay testing, air bleeding and hydraulic circuit diagrams.

Written primarily for experienced Suzuki mechanics, this manual also supports apprentice and DIY mechanics; advanced diagnosis and overhaul require the specified measuring equipment and service tools.

Model Supplements and Component Matching

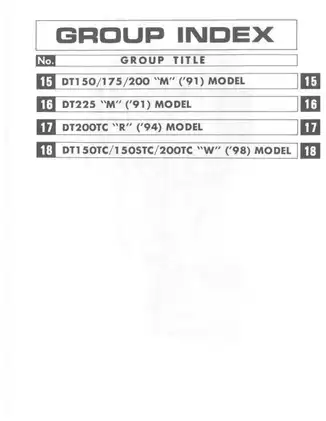

The base manual is followed by VH, VJ, K, L, M, DT225 M, DT200TC R and W supplements. These update specific systems rather than repeating every base procedure. The DT200V Audio Comlink and digital instruments, DT200S EXANTE and DT200G counter-rotation lower unit receive separate coverage.

Variant differences matter during parts selection. The DT225 supplement distinguishes long- and ultra-long-shaft throttle bodies and ECUs. The DT200TC R section covers SBC-plated cylinders, matching piston-ring designs and crankcase differences from earlier engines.

Powerhead Repair, Cooling and Oil Injection

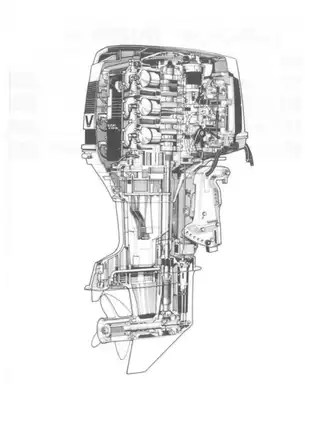

Exploded views map the power unit, lower unit and oil injection assemblies. Engine repair coverage extends from powerhead removal through crankshaft, piston and cylinder inspection to final assembly. Service data provides wear limits, ignition-timing baselines and fuel-system adjustment specifications.

The Cooling Circuit drawing traces water flow through the cylinder block, heads, thermostats and pressure-relief system. Lubrication sections explain pre-atomized oil injection and its flow-monitoring components. The DT200TC R Fuel/Oil Recirculation Schematic documents routing changes associated with the vapor separator.

EFI and Electrical Fault Finding

The Integrated Circuit Troubleshooting Chart supports early ignition diagnosis. Later sections address Micro-Link control, over-revolution and overheat warnings, EFI self-diagnosis and backup operation. Fuel-pump and injector tests are paired with the Fuel Pressure Inspection chart, helping separate delivery problems from electrical faults.

The W supplement covers an integrated ECM and sequential injection, with an ECM Connector/Terminal Layout for circuit checks. Its Throttle Position sensor inspection and adjustment procedures address a useful diagnostic distinction: self-diagnosis detects an out-of-range signal but cannot identify incorrect sensor adjustment. This helps guide idle or acceleration troubleshooting when no related fault code appears.

Electrical specifications include magneto pick-up coil resistance and peak-voltage tests. The DT225 and DT200TC R Suzuki Monitor procedures specify test lead 09930-89280; substituting plain wire during the relevant tests can damage the monitor circuits.

Gearcase, Trim and Tilt Repair

Lower-unit procedures distinguish standard and counter-rotation gear arrangements. Contact-pattern inspection accompanies shim selection and backlash measurement. The DT200G section warns that incorrect gear-tooth contact can chip the forward gear and pinion.

The Trim and Tilt Up Circuit diagram explains hydraulic operation alongside pump, cylinder and valve tests. Pressure checks help distinguish pump faults from cylinder faults before overhaul. Separate sections cover steering and swivel brackets, engine mounting, remote-control adjustment and galvanic-corrosion protection.

Work on heavy powerheads, high-voltage ignition and pressurized fuel systems requires the manual's task-specific safety precautions.

PDF Contents and Included Supplements

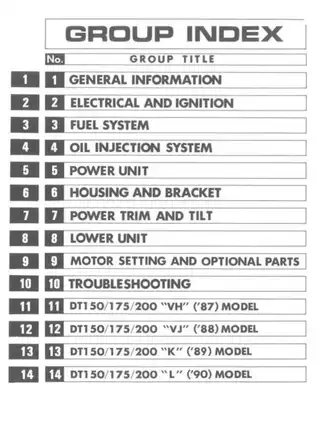

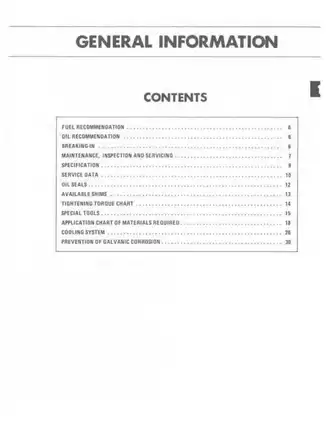

This printable English-language, 616-page PDF contains 194 pages of base-manual material, 418 pages of model supplements and four pages forming the engine-servicing template. The foreword, indexes, one blank page and the template pages are already included in the total.
