1981–2002 Kawasaki KZ, ZX, ZN 1000cc-1100cc Service Manual (ISBN 0-89287-878-9)

• Covers KZ1000-J/K/M/R, KZ1100-A/B/D/L, ZX1100-A, and ZN1100-B civilian models (1981-1985), non-U.S./Canadian Z1000/Z1100 variants, and Z1000 Police P1-P21 (1982-2002). Standard, LTD, CSR, Replica, GPz, Spectre, chain-drive, shaft-drive, dual-shock, and Uni-Trak configurations are represented; the 2002 endpoint applies only to the Police series.
• Documents in-frame top-end repair, cam-chain and valve-train work, cylinder-head and valve service, piston and ring inspection, oil-pump service, engine removal and installation, crankcase splitting, crankshaft service, clutch overhaul, and internal transmission repair.
• Separates chain-drive procedures for the engine sprocket, drive chain, and rear wheel from shaft-drive removal, inspection, lubrication, and installation work on the front bevel drive, final gear case, swing arm, and drive shaft.
• Covers CV carburetor diagnosis, rejetting, disassembly, fuel-level checks, synchronization, air-suction equipment, fuel taps, and exhaust service, plus model-specific electronic fuel-injection testing and component replacement.
• Includes transistorized ignition, charging, starting, lighting, warning-unit, electric-instrument, brake, fork, steering, wheel, tire, shock, and ZX1100-A anti-dive/Uni-Trak repair procedures, backed by symptom charts and model-specific wiring diagrams.

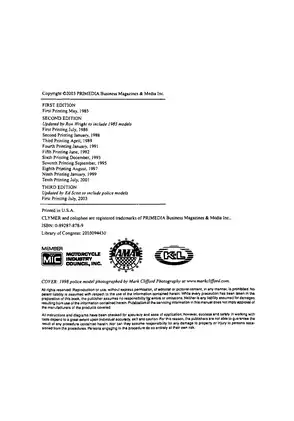

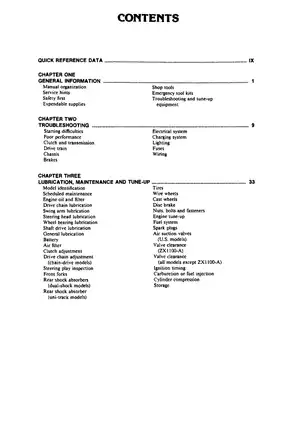

• 378-page PDF — Clymer manual code M451-3, Third Edition, First Printing July 2003; ISBN 0-89287-878-9. This edition was updated specifically to add the P-series Police models.

Engine and Maintenance Overview

The maintenance chapter identifies model-year suffixes, lays out scheduled service, and covers chain and shaft lubrication, clutch and throttle adjustment, steering checks, fork and shock service, brake inspection, separate ZX1100-A valve-clearance procedures, ignition timing, synchronization, compression testing, and storage. Its seven end-of-chapter tables cover the schedule, model suffixes, suspension setup, tune-up specifications, and regional tire data.

Engine coverage follows the four-cylinder assembly from in-frame work through complete teardown. It explains cam-chain tensioner and cam timing, camshaft and bearing inspection, cylinder-head and valve service, pistons and rings, oil cooler, engine removal, oil pump, crankcase separation, crankshaft and cam chain, and final assembly. The clutch chapter distinguishes the 1981 release mechanism, the 1982-on chain-drive release, and the shaft-drive arrangement. Transmission repair reaches the shift drum, forks, gearsets, and neutral finder rather than stopping at external linkage adjustments.

The shaft-drive sections are clear about their limits. They cover front and rear bevel-unit removal, installation, lubrication, and condition checks, but direct internal bevel-gear setup and repair to a qualified shop because backlash, tooth contact, and bearing preload require specialized tools and skill.

The manual also flags real repair traps. Rotating the engine while a valve lifter is held down for shim replacement can create piston-to-valve contact, and incorrect cam timing can damage valves and pistons. Kawasaki Valve Lifter Holder P/N 57001-113 is identified for this work.

Technical Data and Specifications

Fuel-injection coverage distinguishes the 1981 KZ1100-B1 mechanical air-flow-meter system from the 1982-on throttle-position-sensor layout and the ZX1100-A control-unit self-diagnosis feature. Procedures cover throttle-valve synchronization, fuel-pump and pressure-regulator checks, injector and relay tests, control-unit tests, sensor and signal diagnosis, wiring-harness fault isolation, and component removal. For pressure diagnosis, the manual identifies Kawasaki gauge P/N 57001-125 or 57001-164 and T-adapter/hose kit P/N 57001-1089. Solid-state injection components are generally diagnosed and replaced rather than internally repaired. Portions of the injection feed are unswitched and unfused, so careless connector or battery handling can irreparably damage the control system.

Electrical service centers on the transistorized ignition used by the covered models, not a model-specific contact-breaker setup. It covers coils, pickup coils, ignition advance, IC igniter, charging and stator tests, regulator/rectifier, alternator, starter clutch and motor, solenoid and lockout circuits, lighting, automatic turn-signal cancellation, fuel gauges, electric instruments, and the electronic warning unit.

Chassis repair covers wire and cast wheels, tube-type and tubeless tires, bearings and seals, both rear-wheel drive layouts, brake bleeding and fluid change, hoses, pads, calipers, master-cylinder rebuilding, discs, forks, steering-head bearings, dual shocks, shaft-drive air shocks, ZX1100-A Uni-Trak, swing arms, final drive, and drive shaft. The shaft-drive air shocks are identified as non-rebuildable. The Police supplement adds floorboard-specific access, dual opening/closing throttle cables, police carburetor and electrical details, fairing and windshield service, a non-pressurized fork setup despite the air valve, engine/saddlebag/rear guards, and the floating carrier.

Useful named illustrations include the Fuel Injection Fuel System schematic, Transistorized Ignition System, separate Starting System diagrams for ZX1100-A and other models, the Electric Instruments circuit, Electronic Warning Unit layouts, and dedicated wiring diagrams for KZ1100-B, ZX1100-A, ZN1100-B, and Police P1-P21. Quick-reference and chapter tables supply torques, capacities, wear limits, clearances, carburetor specifications, brake measurements, suspension data, and electrical test values.

Motorcycle repair involves fuel, electrical, brake, rotating-component, and lifting hazards. Use the full manual, correct support equipment, fire protection, and standard shop safety practices before beginning service.
