Kawasaki Models Covered & Key Technical Specifications

Models: Ninja ZX-10R, Ninja ZX-10R ABS

Sub-models / Variants: Ninja ZX-10R — ZX1000J (ZX1000JB, ZX1000JC, ZX1000JD); Ninja ZX-10R ABS — ZX1000K (ZX1000KB, ZX1000KC, ZX1000KD)

Model Years: 2011–2015 (2011, 2012, 2013, 2014, 2015)

Serial Numbers: Beginning frame numbers listed in the manual:

ZX1000JB: JKAZXCJ1□BA000001 / JKAZXT00JJA000001

ZX1000KB: JKAZXCK1□BA000001 / JKAZXT00JKA000001

ZX1000JC: JKAZXCJ1□CA010001 / JKAZXT00JJA010001

ZX1000KC: JKAZXCK1□CA004001 / JKAZXT00JKA010001

ZX1000JD: JKAZXCJ1□DA016001 / JKAZXT00JJA016001

ZX1000KD: JKAZXCK1□DA008001 / JKAZXT00JKA016001

□ represents the frame-number digit that varies by motorcycle.

Frame Number Breaks: Radiator heat-insulation plate: up to JKAZXT00JJA003074 or JKAZXCJ1□BA003074. Shift-pedal washer arrangement: from JKAZXCJ1CA011772.

Engine Number Breaks: Heat-insulation rubber-plate versions: up to ZXT00JE003022 / from ZXT00JE003023.


  • Engine: 4-stroke, DOHC, 4-cylinder, liquid-cooled, 998 cm³ displacement

  • Bore and Stroke: 76.0 × 55.0 mm (3.0 × 2.2 in.)

  • Compression Ratio: 13.0:1

  • Transmission: 6-speed, constant mesh, return shift

  • Drive System: Chain drive (overall drive ratio 5.197 @Top gear)

  • Battery Capacity (ZX1000J): 12 V 6 Ah

  • Battery Capacity (ZX1000K): 12 V 8.6 Ah

  • Minimum Turning Radius: 3.4 m (11.2 ft)

  • Engine Oil Capacity: 3.7 L (3.9 US qt) (engine completely dry)

  • Coolant System Capacity: 2.6 L (2.7 US qt)

Kawasaki Manual Features & Selected Content Preview

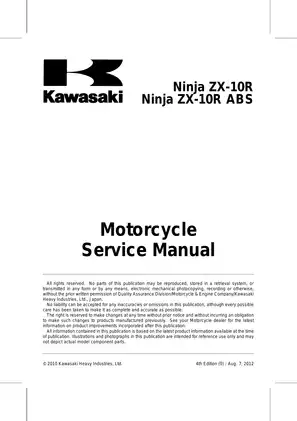

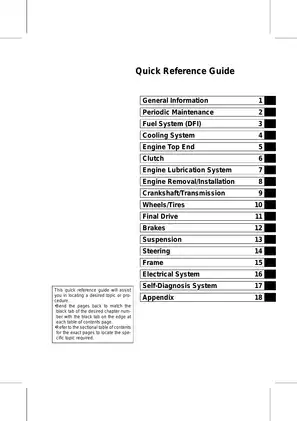

This Kawasaki factory service manual covers the Ninja ZX-10R and ZX-10R ABS models listed for 2011-2013: ZX1000JB/KB, ZX1000JC/KC, and ZX1000JD/KD. It is 4th Edition (0), August 7, 2012, P/N 99924-1443-04, organized into 18 sections. 2014 and 2015 models are outside this edition’s listed applications.

Searchable Text, Bookmarks, and Wiring Detail

Text search and diagram labels: The main text is searchable, but labels embedded in diagram images are not. PDF bookmarks provide chapter and subsection navigation. Small wiring labels require zooming.

One printable, English-language 788-page PDF, including the covers, introductory and publication pages, 14 completely blank pages, and 3 pages marked intentionally blank.


Engine Work, DFI Fault Tracing, and KIBS Service

The following selected coverage highlights show the main workshop areas rather than the complete contents. Additional topics include exhaust-system identification and footpeg-height adjustment.

  • Scheduled service: Engine-vacuum synchronization, valve-clearance adjustment, spark-plug replacement, oil and filter service, coolant changes, drive-chain adjustment, suspension checks, and steering-stem bearing lubrication.

  • Engine repair: Step-by-step procedures for engine removal, cylinder-head and valve service, camshaft timing, crankcase splitting, and crankshaft, connecting-rod, piston, and balancer inspection.

  • Clutch and transmission: Clutch removal and inspection, spring-plate free-play setup, transmission disassembly and assembly, shift-drum and fork inspection, torque-limiter and starter-clutch service.

  • DFI and S-KTRC: ECU power and CAN checks, fuel-pressure and flow testing, injector diagnosis, throttle-body synchronization, and service-code testing for sensors and actuators.

  • Brakes and KIBS: Caliper and master-cylinder repair, fluid replacement and bleeding, Bosch hydraulic-unit removal and inspection, wheel-sensor and rotor tests, and service-code fault isolation.

  • Chassis service: Wheel and hub bearings, tire removal and balancing, chain and sprocket work, fork rebuilding, rear-shock removal, and swingarm and linkage bearings.

  • Electrical repair: Market- and KIBS-specific wiring diagrams, charging and ignition tests, starter overhaul, meter diagnostics, immobilizer key registration, switch and relay checks, and ESD circuits.

Kawasaki designed this manual primarily for trained mechanics in a properly equipped shop. Owners undertaking basic maintenance and repair need basic mechanical knowledge, proper tools, and workshop experience.

Variant-Specific Systems and Diagnostics

ZX1000JB/JC and KB/KC use the earlier manually adjusted steering damper. For ZX1000JD/KD, the manual adds the stepper-motor Electronic Steering Damper (ESD), its ECU, warning display, actuator tests, power-supply checks, and service codes. It also traces the wheel-speed, crankshaft, throttle, and gear-position inputs used by Sport-Kawasaki TRaction Control (S-KTRC).

On ZX1000K models, the Kawasaki Intelligent anti-lock Brake System (KIBS) hydraulic unit combines its ECU, pressure control, and front-caliper pressure sensor, with engine data supplied by the FI ECU over CAN. Diagnosis extends beyond codes to preliminary checks, wiring continuity, pressure-sensor circuits, and final operational checks.

These preliminary checks help distinguish wiring, power-supply, and conventional brake faults from hydraulic-unit faults. The KIBS hydraulic unit is replaced as an assembly; internal disassembly and repair are excluded.

Cooling and Lubrication Checks

Cooling procedures cover system pressure testing, flushing, thermostat and radiator-cap inspection, and water-pump mechanical-seal replacement. Lubrication coverage includes oil-pump and relief-valve inspection, oil-cooler removal, and oil-pressure measurement.

Workshop Data, Tools, and Diagrams

Component torque tables, fluid data, service limits, valve and clutch adjustments, suspension settings, electrical test values, CAN checks, and conversion tables accompany the repair procedures.

Diagnostic tools: Kawasaki callouts include Vacuum Gauge 57001-1369, Hand Tester 57001-1394, Needle Adapter Set 57001-1457, and Throttle Sensor Setting Adapter 57001-1538. Mechanical procedures identify Engine Mount Nut Wrench 57001-1450 and Clutch Holder 57001-1243.

Named references include the DFI System Wiring Diagram, KIBS System Circuit, and ESD Actuator Circuit. The Engine Oil Flow Chart, Coolant Flow Chart, and Cable, Wire, and Hose Routing views support mechanical work and reassembly.

The complete wiring diagrams distinguish US/Canada/California from other markets, KIBS from non-KIBS configurations, and earlier models from ZX1000JD/KD versions.

Important Repair Cautions and Scope

The manual warns that placing shim stock beneath a valve shim or grinding a shim can let it eject or fracture at high rpm and cause major engine damage. On KIBS models, plugging the KDS connector cover with its lead into the black KIBS self-diagnosis connector can blow the KIBS fuse and disable the system.

Fuel-system and brake work, procedures performed with the motorcycle raised, and disposal of the nitrogen-charged rear shock require the manual’s safety measures and specified equipment. An opened brake fitting or KIBS hydraulic-unit connection requires complete bleeding; do not ride with a soft brake lever or pedal.

Kawasaki directs replacement-part lookup to the separate Parts Catalog. This service manual provides exploded service views and selected part references.

A Preview of Valve Clearances and Final-Drive Torques

The valve-clearance section specifies 0.15–0.22 mm for intake valves and 0.17–0.22 mm for exhaust valves, checked with the engine cold at room temperature. These ranges accompany the shim-selection and camshaft procedures.

The final-drive table lists an engine sprocket nut torque of 145 N·m with the specified molybdenum disulfide oil solution, and 127 N·m for the rear axle nut.
