2003 Nissan Maxima A33 AT Automatic Transaxle Service Manual

Nissan Maxima 2003 Automatic Transaxle Technical Documentation

• Covers the 2003 Nissan Maxima (A33) equipped with automatic transaxle, including systems with and without Traction Control (TCS)
• Official Nissan publication, reference manual AT-XX

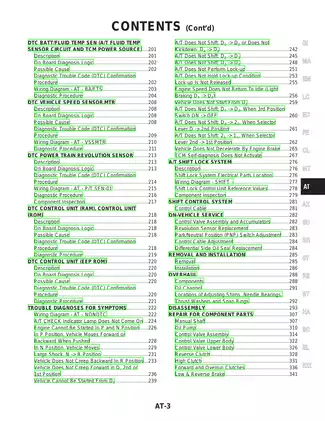

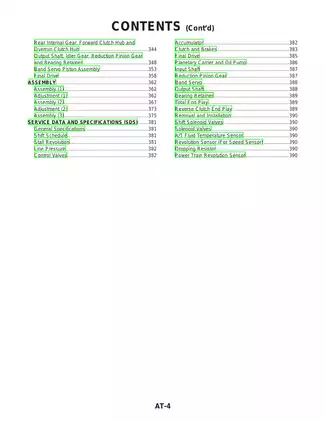

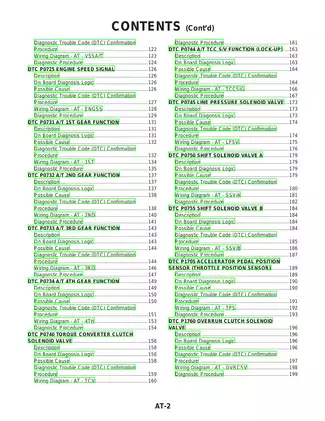

• Contains 390 pages of technical content including hydraulic control circuits, electrical wiring diagrams, and trouble diagnosis logic

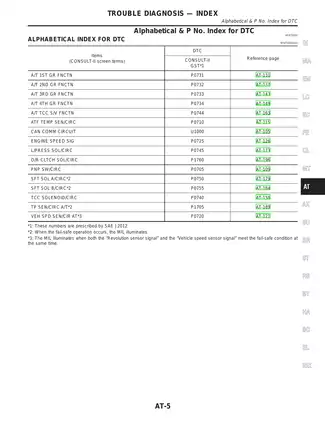

• Features a complete component index for all diagnostic trouble codes (DTCs)
• Files are accessible the moment payment clears
• Full-text search lets you jump to a torque spec by keyword
• No DRM restrictions on the print function
• This 2003 service edition provides the foundational reference for the A33 transaxle, documenting component-specific pinouts and system-wide solenoid operations essential for accurate troubleshooting

Component and System Documentation

This manual details the automatic transaxle system for the 2003 Nissan Maxima. The content spans from general system overviews to complex electrical path tracing and hydraulic component identification. You will find detailed explanations of shifting mechanisms, including the operation logic for the forward, high, reverse, and overrun clutches, as well as the band servo and low-one-way clutch interactions. The text provides a deep dive into the TCM (Transmission Control Module) functionality, covering line pressure regulation, shift control, and lock-up solenoid management.

Diagnostic and Specification Data

This technical guide includes a comprehensive trouble diagnosis section for identifying issues via CONSULT-II or standard generic scan tools. Specification highlights include stall test requirements, line pressure test procedures, and A/T fluid temperature operating ranges. Technical data entries document sensor reference values and pinout voltages for the transmission control module. For instance, the revolution sensor is documented at 450 Hz when testing at 20 km/h. Stall revolution is specified at 2,550–3,050 rpm for correct component validation. Sensor power supply values are listed at 4.5–5.5 V for reliable terminal verification. Further documentation provides detailed guidance on the park/neutral position switch adjustment and control cable settings for precise operation. Understanding factory workshop documentation is structured to facilitate efficient diagnosis, this manual is the official reference for the 2003 Nissan Maxima A33 transaxle build.
