Nissan Models Covered & Key Technical Specifications

Model: Maxima J30 Series

Models & Model Codes:

Maxima J30 Series — GXE (HLJ30DAEU, HLJ30DAEV, HLJ30DAEN);

GXE (bose) (HLJ30HAEU, HLJ30HAEV);

GXE (brougham) (HLJ30HAEN);

SE (ELJ30GFEN, ELJ30GAEN);

SE (bose) (ELJ30GFEU, ELJ30GAEU, ELJ30GFEV, ELJ30GAEV).

Sub-models / Variants: GXE, GXE (bose), GXE (brougham) — VG30E with RE4F02A 4-speed automatic; SE, SE (bose) — VE30DE with RS5F50V 5-speed manual or RE4F04V 4-speed automatic.

Market Suffixes: U = non-California U.S.A.; V = California U.S.A.; N = Canada.

VIN Engine Identifier (4th character): H = VG30E (GXE variants); E = VE30DE (SE variants).

Additional Transaxle Data: VE30DE — RS5F50A 5-speed manual specification and adjustment tables.

Model Year: 1994


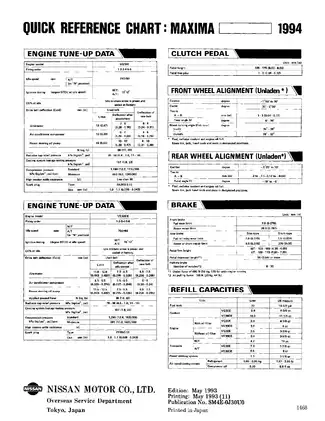

  • Engine Displacement: 2,960 cc (180.62 cu in)

  • Engine Types: VG30E, VE30DE

  • Idle Speed: VG30E A/T and VE30DE M/T: 750 ± 50 rpm; VE30DE A/T: 790 ± 50 rpm (warm engine, no load, A/C and electrical loads off, steering straight, cooling fan off; A/T in “N”).

  • Compression Pressure Standard: 1,196 kPa (12.2 kg/cm², 173 psi) for VG30E

  • Compression Pressure Standard: 1,265 kPa (12.9 kg/cm², 183 psi) for VE30DE

  • Spark Plug Gap: 1.0–1.1 mm (0.039–0.043 in)

  • Radiator Cap Relief Pressure: 78–98 kPa (0.8–1.0 kg/cm², 11–14 psi)

  • Fuel Tank Capacity: 70 liters (18-1/2 gal)

Nissan Manual Features & Selected Content Preview

Nissan’s May 1993 factory service manual for the 1994 Maxima J30 Series, P/N SM4E-0J30U0, covers left-hand-drive GXE and SE sedans in non-California U.S., California and Canadian configurations. The PDF also incorporates amended engine and ECCS pages.

PDF Search, Bookmarks and Diagram Detail

Search and navigation: Manual content is not text-searchable. Embedded bookmarks provide access to many subsections, but some section and foldout entries point to separate files. Small labels in dense wiring diagrams require zooming. The separately referenced ECCS wiring, Super Multiple Junction (SMJ) and Joint Connector (J/C) foldout sheets are not included.

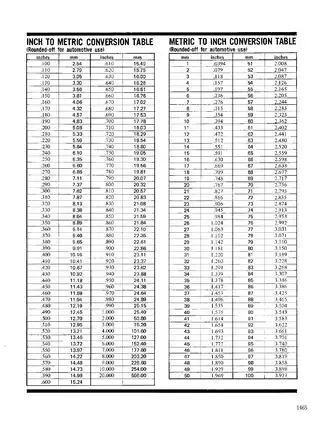

One printable English PDF contains 1,455 pages, including four introductory/reference pages, a nine-page alphabetical index and four note pages.


Engine, Transaxle and Vehicle-System Repair

The following selected repair areas show the manual’s scope. Additional topics include operating-condition-based maintenance schedules and recommended fluids and lubricants.

  • Engine repair and cooling: Engine removal and installation, oil-pan and seal service, cylinder-head disassembly and assembly, cylinder-block overhaul, compression testing, oil-pressure diagnosis and cooling-system checks. Timing procedures cover the VG30E belt and VE30DE chains.

  • ECCS fuel and emissions diagnosis: Component locations, system and circuit diagrams, vacuum-hose routing, on-board diagnostic modes, symptom charts, sensor checks and actuator tests.

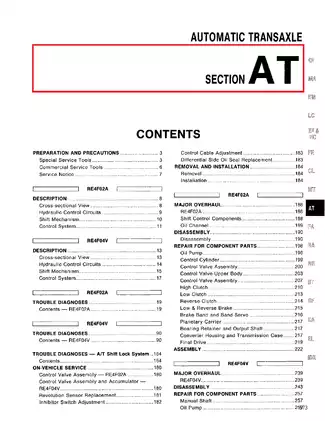

  • Clutch and transaxle repair: Hydraulic-clutch adjustment and bleeding, RS5F50V removal and overhaul, plus RE4F02A and RE4F04V diagnosis, control-valve service, internal repair, assembly and adjustment.

  • Axles, brakes and steering: Wheel bearings, drive shafts, hubs, knuckles, struts, coil springs and alignment. Brake work includes master cylinders, calipers, rear drums and discs, and ABS fault isolation; steering coverage includes pressure testing, bleeding, pump repair and gear overhaul.

  • Body and restraints: Doors, windows, body alignment, automatic seat belts and SRS air bag service.

  • Heating and air conditioning: Manual and automatic HFC-134a systems, refrigerant service procedures, DKS-16H compressor service and system-specific troubleshooting.

  • Electrical systems: Starting, charging, lighting, needle-type and digital instruments, ASCD cruise control, theft warning, digital touch entry, audio and harness layouts.

The overhaul sequences, factory measurement data and special-tool requirements make this manual suited to technicians, machine shops and experienced owners equipped for advanced mechanical and electrical repair.

Engine and Transaxle Configurations

The model-variation chart assigns the VG30E to GXE, GXE Bose and Canadian GXE Brougham models with the RE4F02A automatic. SE Bose and Canadian SE models use the VE30DE with either the RS5F50V manual or RE4F04V automatic. The U, V and N model-code suffixes distinguish non-California U.S., California and Canadian configurations.

The manual-transaxle specification and adjustment tables also identify the RS5F50A for the VE30DE. This additional tabular coverage should be distinguished from the RS5F50V configuration listed in the model-variation chart.

Factory Measurements and Special Tools

Section-specific Service Data and Specifications tables provide tightening torques, fluid capacities, pressure-test values, electrical checks, clearances, alignment settings, wear limits and adjustment data. Exploded views identify fasteners and lubrication points; detail illustrations show inspection locations and operations that are less apparent in the assembly views.

Step-by-step procedures extend into automatic-transaxle disassembly, component inspection, reassembly and adjustment.

Tool tables cross-reference Nissan and Kent-Moore numbers, including the ST10120000 (J24239-01) cylinder-head bolt wrench and KV10112100 (BT8653-A) angle wrench. Other entries cover engine stands, valve-spring compressors, seal installers, pullers, drifts, transaxle pressure gauges, steering fixtures and HFC-134a service equipment.

Circuit Diagnosis and Troubleshooting Charts

VG30E diagnosis includes the ECCS checker box. VE30DE procedures cover CONSULT data monitoring, active tests and function tests. The symptom-based checks connect driveability complaints with circuit and component tests, helping distinguish electrical connection faults from components that need replacement.

Fault charts address hard starting, unstable idle, hesitation, stalling, knock, surge, sensor and solenoid circuits, shift complaints and A/T shift-lock faults.

Illustrated diagnostic references include ECCS circuit diagrams, automatic-transaxle cross-sectional views and hydraulic control circuits, ABS hydraulic and wiring diagrams, automatic A/C self-diagnosis flowcharts, and power-supply routing. Harness, connector and ground layouts support tracing circuits through the vehicle.

Timing, Fasteners and SRS Precautions

The timing sections explain the risk of valve-to-piston contact when the crankshaft and camshafts are moved independently after belt or chain removal. Engine assembly information distinguishes angular tightening for cylinder-head bolts and connecting-rod cap nuts from reference torque values.

Nissan assigns SRS maintenance to an authorized dealer and warns against electrical test equipment on the yellow SRS circuits because improper testing or handling can cause unintended deployment.

The exploded service views support repair work. Parts identification and ordering require the separate applicable parts catalog.

A Preview of Lubrication and Cooling Test Data

For a warmed engine running without load in Neutral, the oil-pressure checks list approximately 363–451 kPa at 3,200 rpm for the VG30E and 412–510 kPa at 3,000 rpm for the VE30DE. These are separate engine-specific test ranges.

The cooling-system specifications list an 82°C (180°F) thermostat opening temperature for both engines.
