Nissan Maxima 1993 Service & Owner’s Manual Collection

The service publications provide edition-specific repair and diagnostic information; the owner’s manuals explain vehicle operation and routine owner checks. Select the publication that matches the vehicle before using its specifications, wiring, or procedures.

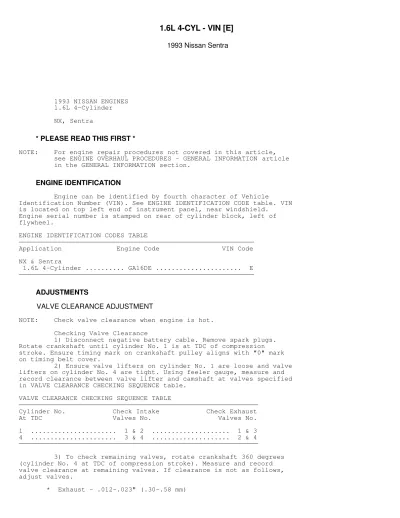

Coverage limits: These are separate editions with different contents, not continuous model-year coverage. The 1997 and 2002 publications are owner’s manuals. The 2009 compilation stops at the beginning of the exterior-lighting section, at EXL-9, and is not a complete service manual. The two general references do not establish additional Maxima compatibility.

PDF Search, Bookmarks, and File Contents

Search and navigation: The 1994 and 1996 service-manual content, the 1999 service sections, and the generic trouble-code reference lack usable text search for their main content. Later service files generally contain searchable text. Embedded bookmarks are extensive in some publications, limited or absent in others; the 2009 compilation has none. Small labels in the older wiring diagrams require enlargement.

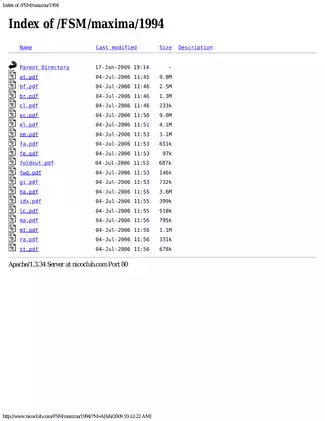

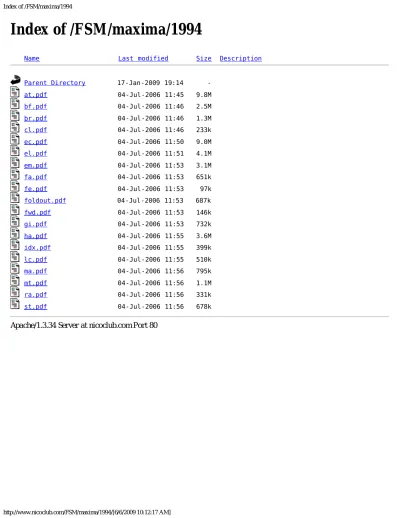

The ZIP contains 148 printable PDFs totaling 21,093 pages. This total includes 34 archive-index pages: six each in the 1994 and 1996 files, and eleven each in the 2008 and 2009 compilations. Covers and the 60 pages of general reference material are also included in the total.

Engine, Transaxle, and Vehicle-System Repair

The following highlights are a selection of the included content, with the detailed J30 coverage described below. The publications also contain topics such as towing precautions and standard-bolt tightening tables.

• Engine repair: Compression checks, engine removal, cylinder-head and cylinder-block work, oil-seal service, and engine-specific timing-belt or timing-chain procedures.

• Transaxle overhaul: Automatic-transaxle diagnosis and internal repair, hydraulic-clutch service, manual-transaxle disassembly, final-drive setup, and assembly adjustments.

• Engine-control diagnosis: ECCS fault tracing, sensor and actuator checks, emissions-system diagnosis, and applicable CONSULT diagnostic functions.

• Chassis and brakes: Suspension repair, wheel bearings, alignment, drive shafts, hydraulic brakes, ABS diagnosis, and power-steering service.

• Body and restraints: Doors, glass, sunroof, seats, interior trim, body alignment, SRS components, and applicable automatic-seat-belt systems.

• Heating and A/C: Manual and automatic climate-control diagnosis, performance testing, refrigerant-component service, and compressor-clutch repair.

• Electrical systems: Wiring diagrams, harness layouts, connector and terminal views, component locations, and system-specific diagnostic charts.

The service procedures suit technicians and experienced repairers who can use electrical test equipment, pressure gauges, and the specified special tools; the owner’s manuals address everyday vehicle operation and checks.

J30 Engine and Configuration Matching

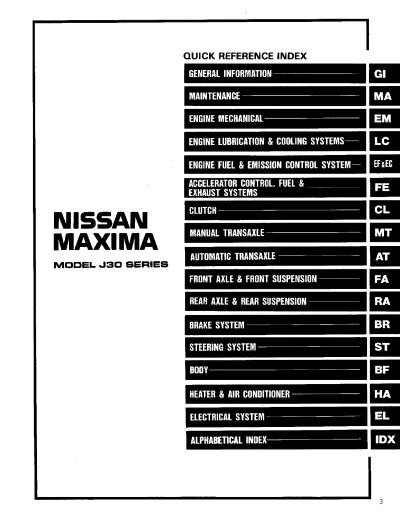

The 1994 publication distinguishes VG30E GXE configurations from VE30DE SE configurations, including Bose and Canadian Brougham variants. Its model tables separate U.S. non-California, California, and Canadian equipment and emissions specifications.

Engine Mechanical, Engine Control, Lubrication and Cooling, Fuel and Exhaust, and Maintenance sections address the two engines separately. The VG30E timing-belt instructions and VE30DE timing-chain and indexing procedures apply to different arrangements and must be matched to the engine.

Coverage extends beyond timing work to fuel injection, evaporative and crankcase-emission systems, idle and ignition checks, cooling-system repair, lubrication components, and internal engine inspection.

Transaxle Diagnosis and Internal Repair

The J30 automatic-transaxle chapter separates the RE4F02A from the RE4F04V. It explains power flow, clutch application, hydraulic control, control-unit inputs and outputs, self-diagnosis, and fail-safe operation. Diagnostic material includes preliminary checks, road tests, stall and pressure tests, symptom charts, and circuit checks.

These component-specific tables and diagnostic workflows support transmission repair planning. For example, the pressure-test interpretation charts distinguish low pressure across all selector positions from a fault confined to particular clutch circuits.

Step-by-step procedures cover removal, disassembly, inspection, and reassembly. Internal subjects include oil pumps, valve bodies, clutch packs, low-and-reverse brakes, band servos, planetary assemblies, output and idler components, differentials, bearing preload, shim selection, and end play. On-vehicle work includes inhibitor-switch and control-cable adjustment, revolution-sensor replacement, differential side seals, and applicable control-valve and accumulator service.

The RS5F50V material adds gear and shaft inspection, viscous-coupling service, final-drive adjustment, and reassembly. Special-tool listings include the ST2505S001/J25695-A pressure-gauge set, KV31102400 clutch-spring compressor with J34285 and J34285-87 references, and J34291 shim-setting gauge set.

Assembly cautions: The RE4F02A teardown instructions warn that forced terminal retaining hooks can break and that pulling the wires can cause damage. Valve-body service preserves component positions and addresses protection of O-rings and lip seals; installation checks include torque-converter seating and free rotation.

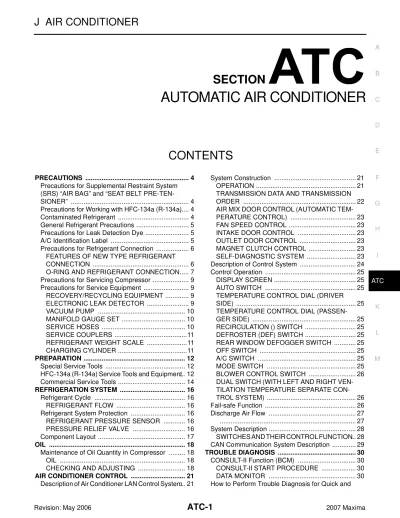

Wiring, Body Electronics, and Climate Control

J30 electrical coverage includes digital instruments, ASCD cruise control, theft warning, digital touch entry, power windows, and automatic seat belts. Harness routing, joint connectors, Super Multiple Junction terminal arrangements, and connector views support tracing a circuit between the schematic and the vehicle.

Diagram examples include VG30E and VE30DE ECCS foldouts, the 1994 main circuit diagram, transaxle hydraulic-control and quick-pinpoint circuits, ABS hydraulic and electrical diagrams, and SRS and climate-control diagnostic charts.

Air-bag, brake-hydraulic, refrigerant, and pressurized-ATF work requires the system-specific precautions and test equipment described in the applicable publication.

Later-Edition Diagnostic Differences

Later files introduce different engines, transaxles, and electronic systems. The 2008 publication includes CAN diagnosis and RE0F09B CVT information. Its CVT service notice specifies replacement of the complete transaxle assembly for an internal malfunction, rather than an internal overhaul procedure.

The partial 2009 compilation includes engine-control and engine-mechanical material alongside body electronics, brakes, cooling, and other supplied sections. It should not be treated as a substitute for the missing remainder of that edition.

Examples of J30 Transaxle End-Play Specifications

The 1994 assembly data specifies RE4F02A clutch-pack end play of 0.4–0.8 mm (0.016–0.031 in). For the RE4F04V reverse clutch, the specified end play is 0.55–0.90 mm (0.0217–0.0354 in). Both appear alongside selective thrust-washer information for the relevant assembly.
