Nissan Maxima A34 2007 Service & Repair Manual (P/N SM7E-1A34U0)

Nissan North America factory service manual for the 2007 Maxima A34, covering 3.5 SE and 3.5 SL four-door sedans with the VQ35DE engine and RE0F09B CVT. Publication No. SM7E-1A34U0, Edition/Revision May 2006, includes maintenance, diagnosis, mechanical repair, body work, and electrical troubleshooting.

PDF Text Search, Bookmarks, and Page Breakdown

Search and navigation: All files contain searchable text, but labels within many wiring diagrams are embedded as images and cannot be searched individually. Embedded bookmarks are present in 31 files and absent from eight; some links between section files have malformed targets. Small wiring and connector labels require zooming.

The ZIP contains 2,901 pages across 39 printable PDF files: 2,884 service-section pages, a nine-page introductory and quick-reference file, and an eight-page alphabetical index. The total includes the foreword, safety notice, feedback form, reference charts, and 19 section-ending pages containing only running headers and footers.

Engine, CVT, Chassis, and Electrical Service

The following selected topics summarize the repair coverage rather than reproduce the full contents. Other examples include electronically controlled engine-mount diagnosis and sunroof initialization.

• VQ35DE engine repair: Step-by-step procedures for engine removal, timing-chain installation, camshaft service, valve-clearance adjustment, cylinder-head disassembly, cylinder-block inspection, and compression testing.

• RE0F09B CVT service: TCM and ROM/EEPROM procedures, fluid and cooler service, stall and line-pressure tests, road testing, sensor and solenoid diagnosis, and transaxle replacement.

• Axles, suspension, and steering: Front and rear axle service, suspension replacement, alignment checks, wheel balancing, TPMS transmitter registration, power-steering bleeding, and steering gear/pump repair.

• Brakes and stability control: Hydraulic brake service, parking-brake adjustment, and separate TCS/ABS and VDC/TCS/ABS diagnostic procedures with hydraulic circuits and electrical diagrams.

• Body and restraints: Panel replacement, structural alignment, glass and window service, instrument-panel and seat work, seat-belt inspection, occupant-classification diagnosis, and air-bag component replacement.

• Electrical and network diagnosis: CAN/LAN fault isolation, BCM and IPDM E/R testing, starting and charging checks, lighting, security systems, audio, navigation, and connector reference information.

• Automatic climate control: Door-motor circuits, blower and compressor-clutch control, sensor checks, self-diagnosis, R-134a refrigerant service, leak detection, and compressor/clutch removal and installation.

This manual is suited to technicians with electrical-diagnostic experience and access to CONSULT-II and the specified diagnostic and service equipment.

Engine Repair and Maintenance

Lubrication, cooling, fuel, exhaust, ignition, and electronic throttle-control sections accompany the internal engine procedures. Maintenance coverage includes Schedule 1 and Schedule 2 tables, approved fluids and lubricants, periodic inspections, and service specifications.

Engine-control diagnosis covers accelerator-pedal released-position learning, throttle-valve closed-position learning, and idle-air-volume learning. Circuit procedures address pedal-position sensors, the throttle control motor, mass airflow, crankshaft/camshaft position, air/fuel-ratio and oxygen sensors, ignition, injectors, and EVAP components.

The timing-chain cautions identify the risk of valve-to-piston contact if the crankshaft and camshafts are moved independently with the chain removed.

CVT Diagnosis and Replacement Scope

The CVT section connects DTC confirmation and terminal checks with fail-safe information, shift-lock adjustment, differential side-seal replacement, and transaxle removal and installation. Internal faults are handled through assembly replacement rather than a complete belt, pulley, or control-valve rebuild procedure.

Cooler-cleaning and inspection instructions address metal and friction debris trapped in the radiator-mounted cooler, which can contaminate or restrict a serviced replacement transaxle.

Chassis, Brake, and Body Repair Depth

Steering gear and pump procedures extend through disassembly, inspection, assembly, bleeding, and adjustment. Brake coverage includes master-cylinder and caliper service, hydraulic bleeding, rotor inspection, and brake burnishing.

Body sections cover hood, door, trunk, roof, mirror, trim, and seat removal or adjustment. Structural dimensions, high-strength-steel repair precautions, corrosion protection, foam repair, panel-replacement operations, and squeak-and-rattle diagnosis support work beyond routine component replacement.

Factory Diagnostic Workflow and Equipment Variants

DTC indexes, confirmation procedures, symptom charts, connector locations, terminal reference values, CONSULT-II data monitoring, active tests, and applicable checks without CONSULT-II are tied to the relevant circuits. These references let a technician relate a fault code to the specified circuit checks before selecting a component for replacement.

CAN/LAN diagnosis distinguishes network configurations involving the ECM, TCM, ABS actuator, BCM, IPDM E/R, Intelligent Key unit, driver-seat control unit, unified meter/A/C amplifier, and audio/navigation equipment.

Equipment-specific sections separate halogen and xenon headlamps, Canadian daytime-running lights, base and BOSE audio, Bluetooth and satellite-radio arrangements, integrated displays, navigation, heated-seat layouts, and power-window anti-pinch configurations. Starting, charging, combination-meter, wiper/washer, Intelligent Key, and NVIS/NATS troubleshooting are also included.

Immobilizer scope: NATS initialization and ignition-key registration require CONSULT-II hardware/software and refer to a separate CONSULT-II operation manual; that operation manual is not included in this download.

The model-variation tables identify USA, Canada, and Mexico destination codes, left-hand-drive 2WD configurations, and four- and five-seat equipment codes.

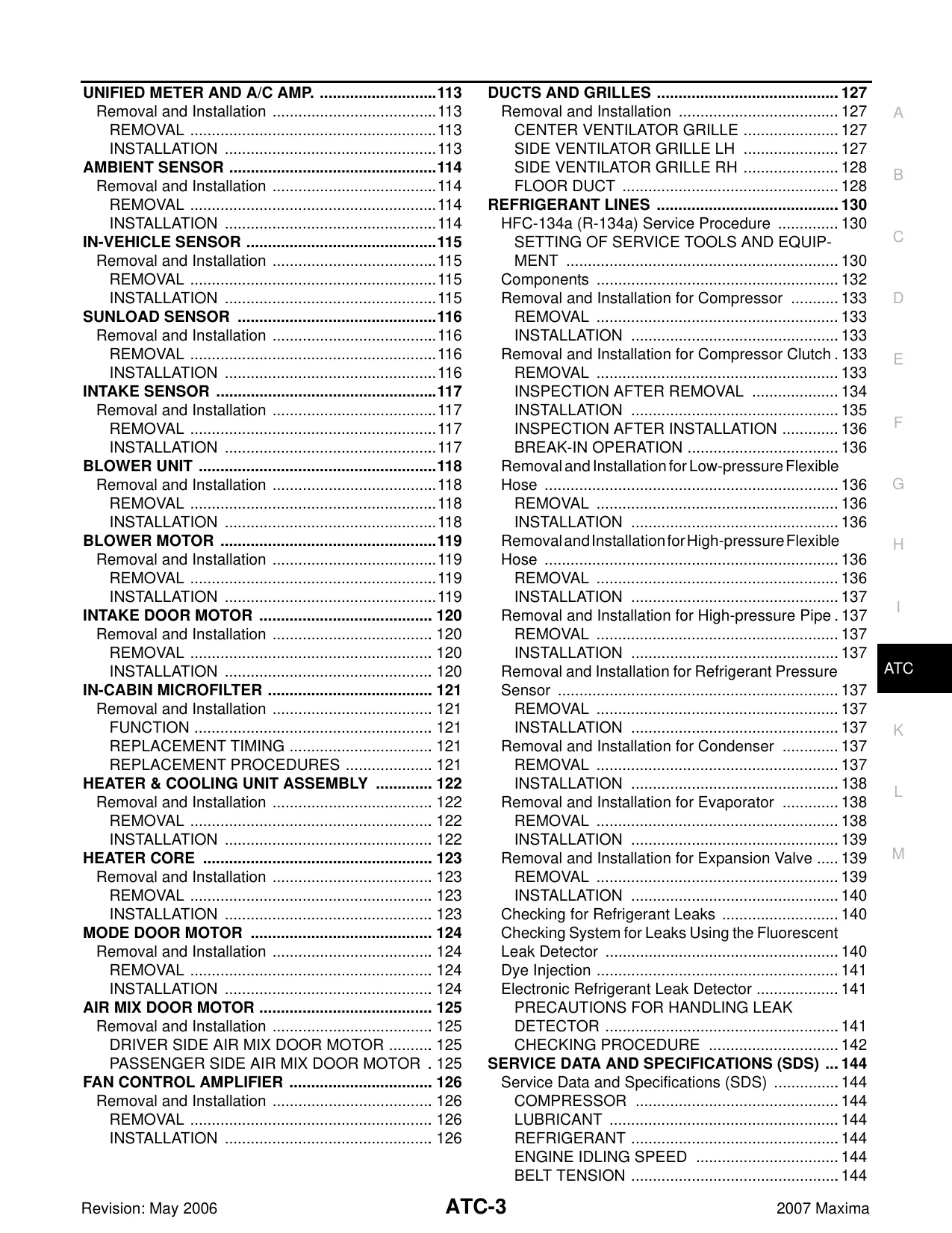

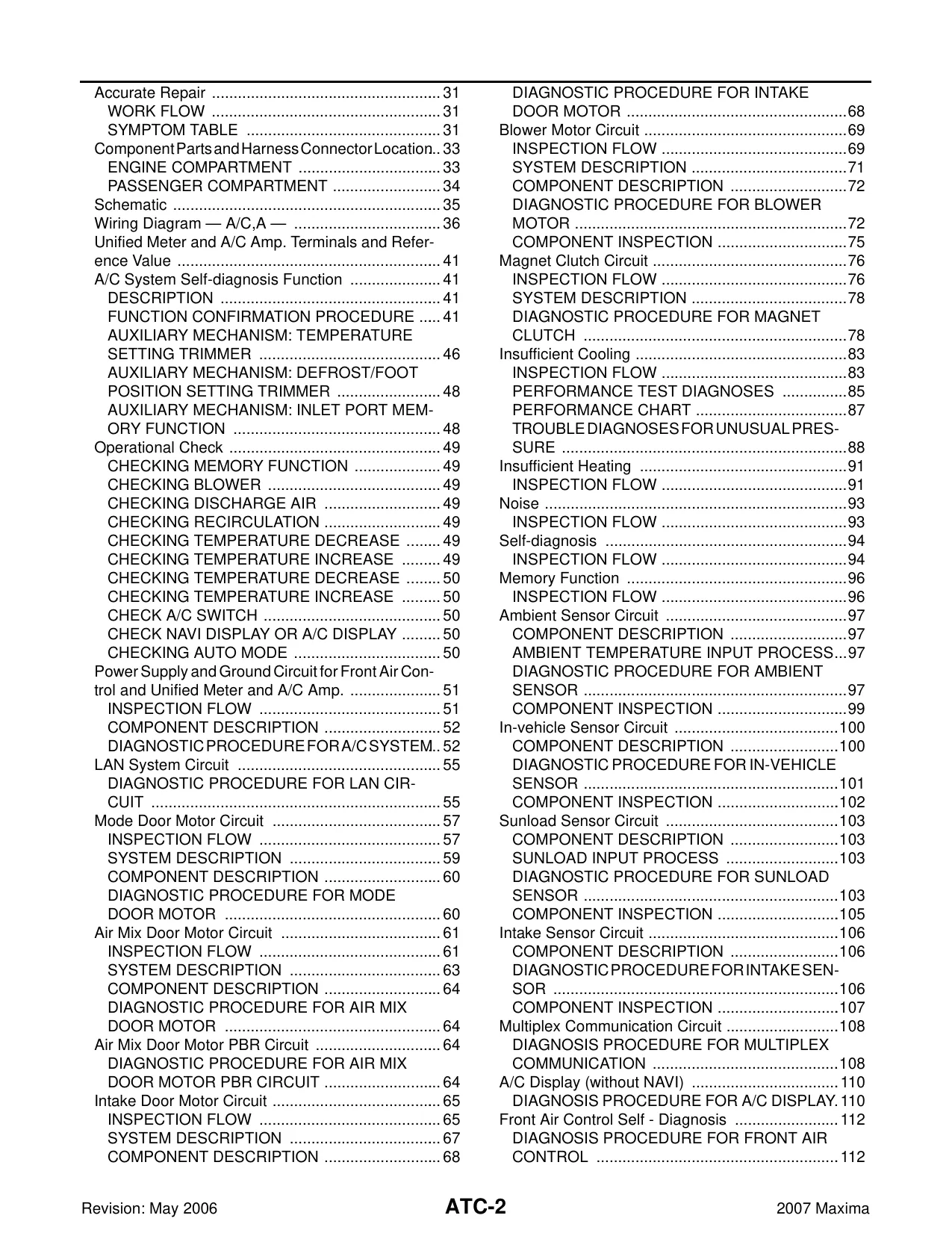

Automatic A/C Controls and Refrigerant Service

The HVAC material explains communication between the unified meter/A/C amplifier and the air-mix, mode, and intake-door motors. Ambient, in-vehicle, and sunload sensor tests accompany display-related checks for vehicles with and without navigation.

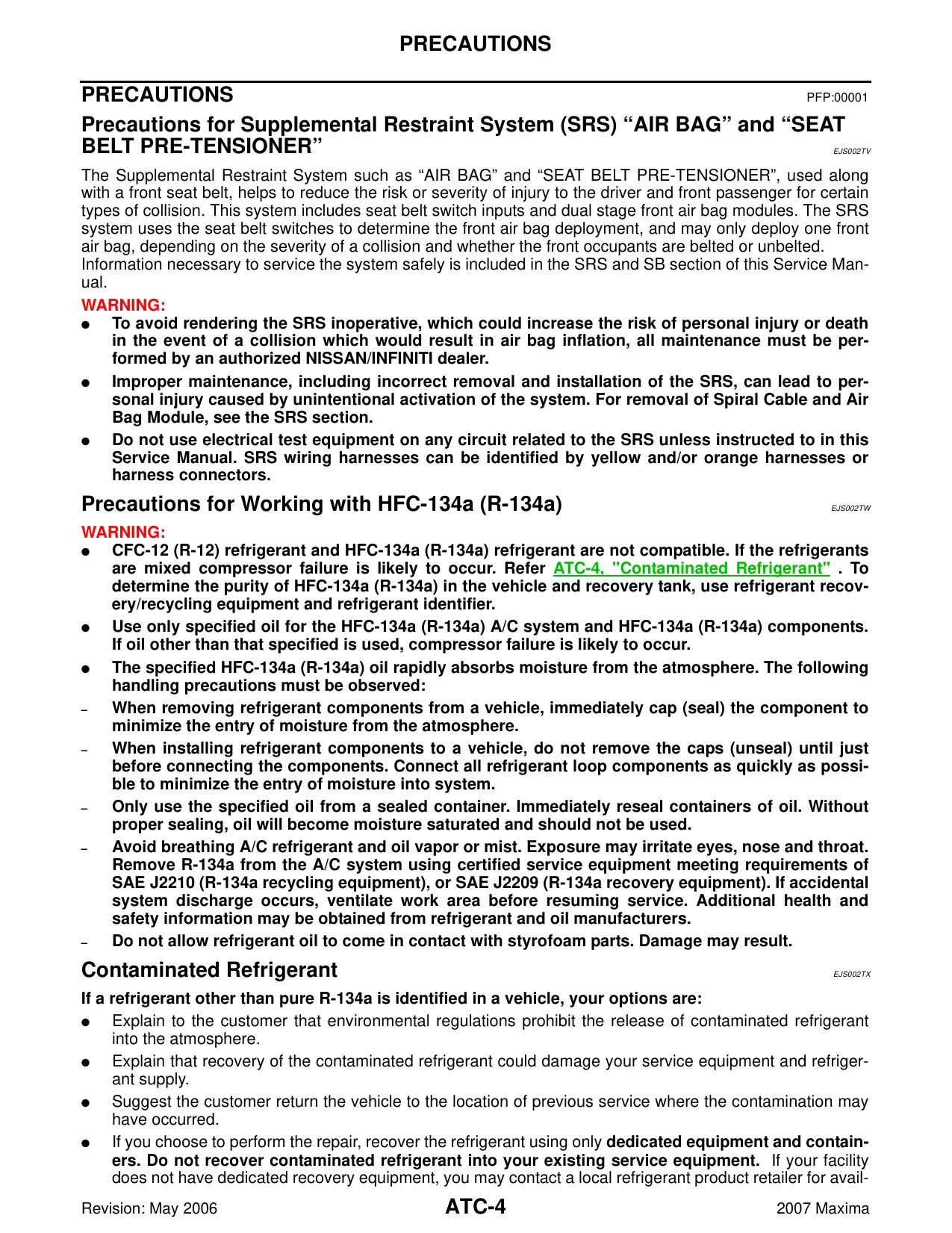

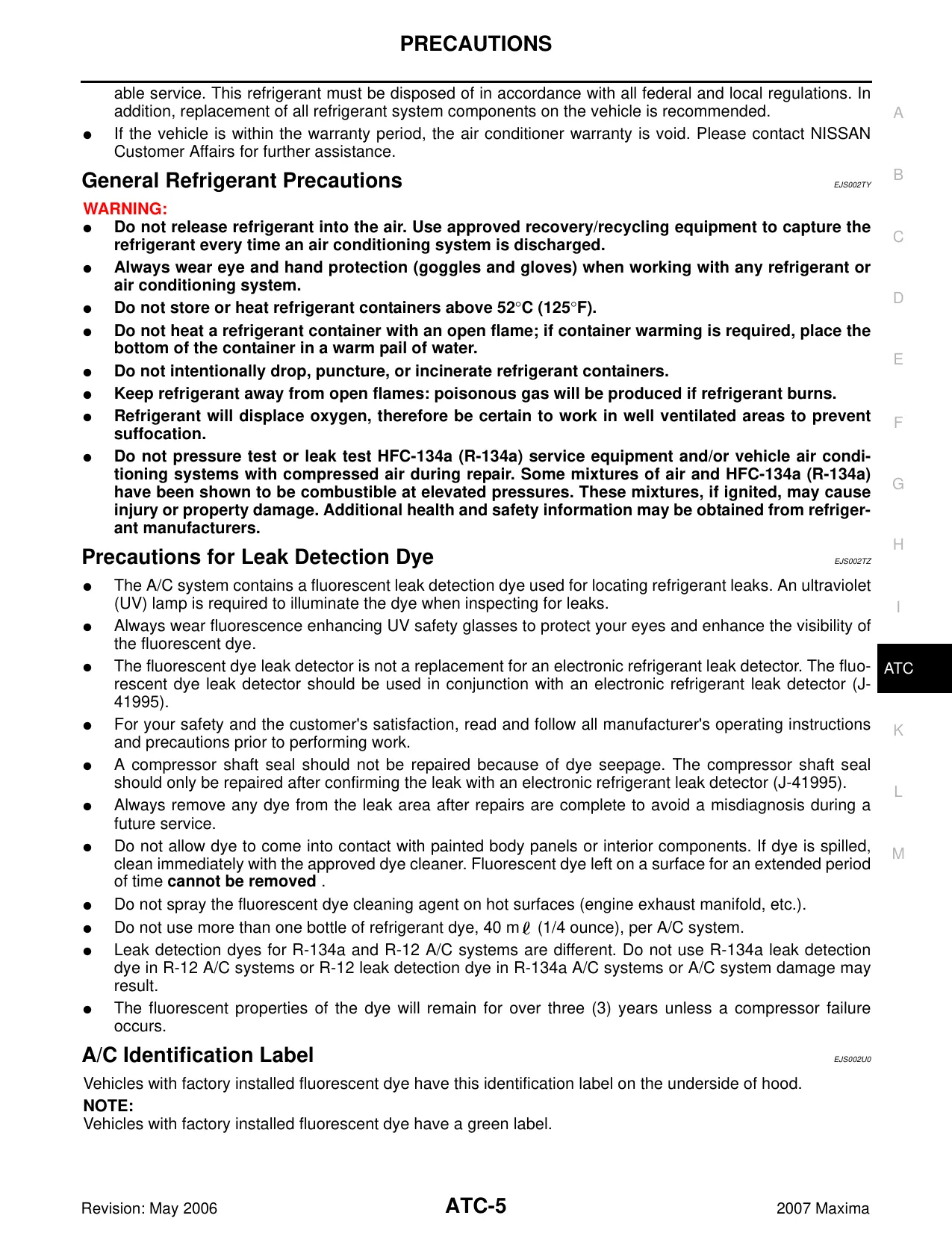

Refrigerant-cycle service covers the ZEXEL DKS-17D compressor, clutch work, leak detection, and HVAC component replacement. The refrigerant precautions explain how mixing R-12 and R-134a refrigerants, oils, or service equipment can contaminate the system and cause compressor failure.

Diagrams, Service Data, and Special Tools

Representative illustrations include the RE0F09B cross-sectional view, CVT control-system diagram, TCS/ABS and VDC/TCS/ABS hydraulic circuits, automatic A/C schematic and LAN circuit, CAN system-type specification charts, and power-supply routing/ground-distribution diagrams. Exploded views and connector layouts accompany the component procedures.

Service-data sections supply component-specific torque tables, fluid capacities, pressure-test specifications, wear limits, clearances, adjustment data, and electrical reference values. Tool listings include the KV101J0010 (J-47242) engine support table, OTC3492 CVT line-pressure gauge set, J-45741 ABS active wheel-sensor tester, and J-41995 electronic refrigerant leak detector.

Refrigerant, brake, xenon-lighting, and vehicle-lifting work requires the isolation procedures and service equipment specified in the manual. Nissan directs SRS maintenance to an authorized Nissan/Infiniti dealer.

Examples of Valve-Clearance and Compression Specifications

For the VQ35DE, the cold valve-clearance specifications are 0.26–0.34 mm for intake valves and 0.29–0.37 mm for exhaust valves. The adjustment section covers selection of replacement lifters; adjusting shims are not used.

Compression-test data lists a standard pressure of 1,275 kPa at 300 rpm, with the engine at normal operating temperature and the throttle fully open. Minimum pressure and cylinder-to-cylinder difference limits accompany the test procedure.
