Ford Focus 2012–2014 Service & Repair Manual

This Ford Focus 2012–2014 service and repair manual covers sedan and hatchback models, with separate Duratec-HE and EcoBoost engine sections. It combines mechanical repair procedures, body service information, and electrical diagnosis.

Text Search, Bookmarks and Page Layout

Search and diagram access: Body text is searchable, and embedded bookmarks organize the workshop sections, although some section links lead to the wrong page. Small diagram labels benefit from enlargement. Some wide diagnostic tables and connector illustrations are cut off at the right edge; zooming does not restore the missing content.

One printable, English-language PDF contains 6,456 pages, including 18 section contents pages.

Powertrain, Body and Electrical Workshop Coverage

The following selected topics show the range of work covered. Other examples include TPMS sensor training and touchscreen calibration.

• Engine repair: Step-by-step engine removal, disassembly and assembly, cylinder-head service, valve-clearance checks, timing-drive work, and lubrication-system repairs.

• Transmission and clutch: PowerShift fault diagnosis, clutch and damper replacement, TCM adaptive learning, manual-transmission service, clutch bleeding, and gearshift-cable adjustment.

• Brakes and chassis: Disc and drum brake service, hydraulic bleeding, ABS and stability-control diagnosis, suspension repairs, halfshaft replacement, and steering-system service.

• Body and NVH: Panel alignment, structural sheet-metal repair, glass and trim procedures, leak investigation, and noise, vibration, and harshness testing.

• Fuel, cooling and climate control: Fuel-pressure checks, injector and turbocharger service, cooling-system testing and filling, and manual or automatic temperature-control diagnosis.

• Electrical and restraint systems: Starting and charging tests, airbag pinpoint tests, lighting diagnosis, communications-network checks, module configuration, and PATS key programming.

Suited to technicians familiar with Ford diagnostic practices and equipped with a compatible diagnostic tool, electrical test equipment, and the specified service tools.

Engine and Drivetrain Repair Depth

The engine chapters extend into internal repairs, with component views, bearing-clearance checks, piston inspection, and separate timing and valve-train procedures. EcoBoost-specific material includes turbocharger replacement, charge-air-cooler cleaning, and balance-shaft backlash adjustment.

The timing procedures address the friction-mounted crankshaft pulley and sprocket: disturbing their clamping arrangement without the specified locking setup can cause severe engine damage.

PowerShift coverage connects DTC and symptom charts with PID references, actuator tests, and scan-tool learning procedures. The clutch instructions distinguish locked and unlocked clutch conditions and warn that attempting to reset an already locked replacement clutch can damage it.

The manual-transmission chapters include shaft, differential, and shim information. The MMT6 description also identifies the input-shaft gears as nonseparable service components, with a faulty input shaft replaced as an assembly.

Body Alignment and NVH Diagnosis

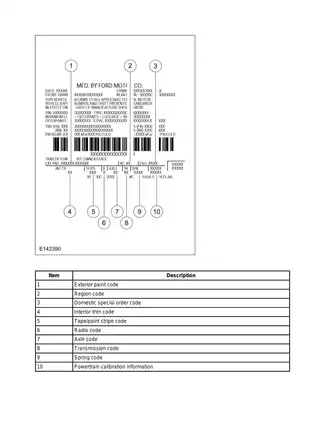

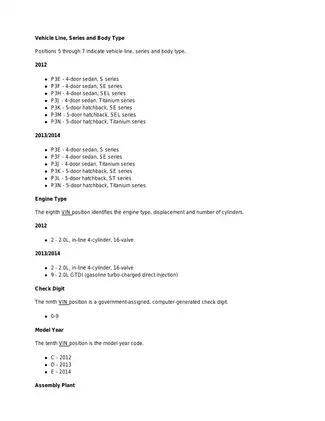

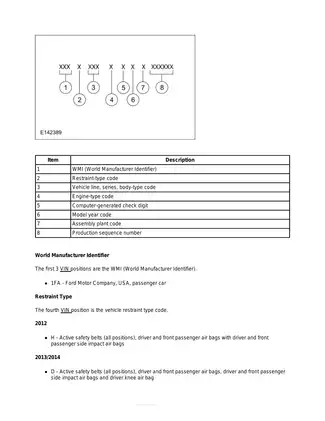

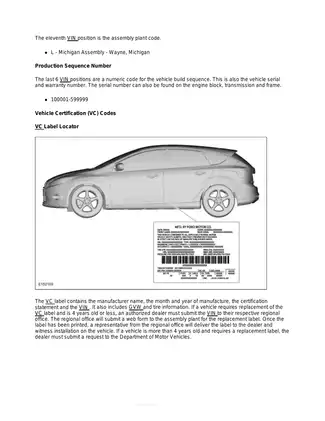

Vehicle-identification tables explain WMI, engine, body/series, and assembly-plant codes. Body sections cover insulation placement, sealers and adhesives, plastic repairs, panel gaps, and structural repair locations.

NVH symptom charts distinguish vehicle-speed-related vibration from engine-speed-related concerns, helping direct testing toward the relevant system. The diagnostic material explains the use of NVH analyzers, EngineEAR, Chassis Ears, and ultrasonic leak-detection equipment.

Active grille shutter information includes PCM network inputs, actuator operation, automatic calibration behavior, and fault-trigger conditions.

Electrical Diagrams and Diagnostic References

Illustrations include Starting System, ABS and Stability Control, and Communications Network system diagrams, alongside Engine Component View drawings and DPS6 transmission-design schematics. Pinpoint tests use connector illustrations and terminal-specific measurements to relate electrical symptoms to circuit checks.

Module information covers Programmable Module Installation, As-Built configuration, and system-specific learning requirements. PATS sections distinguish conventional ignition from keyless entry and push-button start.

Supporting references: Some circuit tests require the separate Wiring Diagrams manual, while certain PCM and drivability concerns refer to Powertrain Control/Emissions Diagnosis (PC/ED). Scheduled maintenance information is referred to the vehicle’s Owner’s Guide.

Use appropriate protective equipment and follow the manual’s safety precautions for structural, restraint, brake, and fuel-system work.

Selected Hot Oil-Pressure Specifications

The Duratec-HE engine specifications list oil pressure of 29.0–38.9 psi (200–268 kPa) with the engine hot at 2,000 rpm.

For the EcoBoost engine, the corresponding hot-at-2,000-rpm specification is 29–60 psi (200–414 kPa). These separate references accompany the engine inspection and lubrication information.
