To make it easier for you to choose the right manual, we have compiled various information for you below, such as model designations, types, and production years.
The manual is valid for the following models: KLX 110, KLX 110L
2010 Kawasaki KLX110
2011 Kawasaki KLX110
2012 Kawasaki KLX110
2013 Kawasaki KLX110
2014 Kawasaki KLX110
2010 Kawasaki KLX110L
2011 Kawasaki KLX110L
2012 Kawasaki KLX110L
2013 Kawasaki KLX110L
2014 Kawasaki KLX110L
Serial numbers:
2010 KLX110CA
2010 KLX110DA
2011 KLX110CB
2011 KLX110DB
2012 KLX110CC
2012 KLX110DC
2013 KLX110CD
2013 KLX110DD
2014 KLX110CE
2014 KLX110DE
Production/model years: 2010, 2011, 2012, 2013, 2014
Manual Language: English
Delivery: Download link will appear on the checkout page after your payment is complete.
#
³

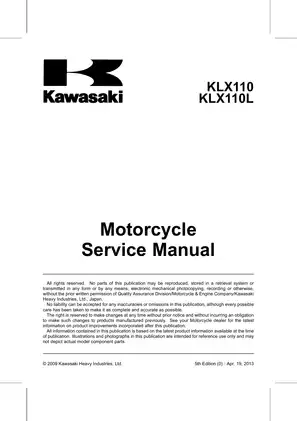

"Download Repair Guidelines and Owner's Manual for Kawasaki KLX110, KLX110L"
The Kawasaki KLX110 and KLX110L are versatile off-road motorcycles designed for riders of all skill levels, offering a perfect balance of performance and reliability. Whether it's for trail riding or motocross, these bikes deliver a thrilling experience. To ensure proper maintenance and repairs, a comprehensive owner's manual and repair guidelines are available for download.
Engine Specifications/Technical Data:
• Both the KLX110 and KLX110L models are equipped with a 111cc air-cooled, four-stroke engine.
• The engine features a single overhead cam (SOHC) configuration for efficient valve operation.
• It has a bore and stroke of approximately 53mm x 50.6mm.
• The compression ratio is 9.5:1, providing a good balance of power and fuel efficiency.
• The KLX110 and KLX110L come with a four-speed transmission for versatile off-road performance.
• They feature a manual clutch system, allowing riders to have precise control over gear changes.
• The motorcycles are equipped with a kick starter for easy starting.
• Both models have a fuel tank capacity of approximately 1.9 gallons (7.2 liters).
• The KLX110 and KLX110L have a wet weight of around 168 pounds (76 kilograms).
• They come with a telescopic front fork suspension system for smooth and controlled off-road riding.
• The rear suspension is a single shock with adjustable preload for personalized comfort.
• The motorcycles feature drum brakes both at the front and rear for reliable stopping power.
• They come with a durable steel frame that provides excellent stability and durability.
• The KLX110L has slightly taller suspension and a higher seat height compared to the KLX110.
• Both models have a seat height of approximately 26.8 inches (680 mm).
• The KLX110 and KLX110L feature knobby tires for enhanced off-road traction.
• The wheel sizes are 14 inches at the front and 12 inches at the rear.
• They have a ground clearance of approximately 8.5 inches (215 mm).
• The motorcycles come with a reliable CDI ignition system for consistent performance.
• The KLX110 and KLX110L are equipped with a quiet exhaust system that meets sound and emissions regulations.
Facts and Details:
- The Kawasaki KLX110 and KLX110L are known for their easy-to-ride nature and beginner-friendly characteristics.
- They provide a smooth and predictable power delivery, making them suitable for riders of all ages and skill levels.
- The motorcycles have a low seat height, which allows riders to easily reach the ground for added confidence.
- They are designed with durable components to withstand the demands of off-road riding.
- The KLX110 and KLX110L feature a robust suspension system that absorbs bumps and provides a comfortable ride.
- These bikes are known for their reliability and low maintenance requirements, making them a popular choice for families and entry-level riders.
- The motorcycles offer a great platform for learning basic riding skills and building confidence off-road.
- They have a compact and lightweight design, making them easy to maneuver through tight trails and obstacles.
- The KLX110L, with its taller suspension and increased ground clearance, is suitable for riders who need extra legroom and improved off-road capability.
- The KLX110 and KLX110L are easy to maintain, with routine tasks including regular oil changes, chain adjustments, and air filter cleaning or replacement.
- Common issues with these bikes may include carburetor problems, electrical system malfunctions, and worn-out brakes.
- Solutions for these issues involve cleaning and tuning the carburetor, checking and troubleshooting electrical connections, and replacing worn brake components.
Tuning Tips and Modifications:
► Popular tuning tips or modifications for the Kawasaki KLX110, KLX110L include:
► Upgrading the exhaust system for improved performance and sound.
► Installing an aftermarket air filter for increased air intake.
► Upgrading the suspension components for enhanced off-road capabilities.
► Adding a high-performance carburetor for improved throttle response.
► Installing a larger rear sprocket for increased low-end torque.
► Adding a skid plate for improved protection against rocks and debris.
► Installing taller handlebars for a more comfortable riding position.
Accessories and Attachments
The official manual lists various compatible accessories and attachments for these models, including:
* Handguards for added protection against branches and debris.
* Graphics kits and seat covers for personalized styling.
* Handlebar pads for increased safety.
* Training wheels for beginner riders.
* Performance exhaust systems for improved power and sound.
* Performance air filters and jet kits for enhanced engine performance.
* Heavy-duty skid plates for increased protection.
* Rear luggage racks for carrying additional gear.
* Tall handlebars for improved ergonomics.
* Performance suspension components for enhanced off-road capabilities.
Owner Reviews and Opinions:
■ Owners of the Kawasaki KLX110, KLX110L appreciate the bikes' user-friendly nature and reliability.
■ They mention that the motorcycles are easy to ride and provide a smooth power delivery.
■ The low seat height is often praised for allowing riders of various heights to comfortably reach the ground.
■ Owners find the bikes to be durable and suitable for off-road adventures.
■ Some riders appreciate the availability of aftermarket parts and accessories to customize and personalize their KLX110 and KLX110L.
Repairs and Parts:
→ Repairs that may need to be carried out most frequently on these motorcycles include:
→ Carburetor cleaning and tuning.
→ Electrical system troubleshooting and repairs.
→ Regular maintenance tasks like oil and filter changes, chain adjustments, and valve clearance inspections.
→ Brake system maintenance, including pad replacements and fluid changes.
→ Suspension component maintenance and replacements.
→ Tire replacements due to wear or damage.
→ Regular greasing and lubrication of moving parts.
→ Parts that may often break or require replacement on these bikes include:
→ Carburetor components, such as jets and gaskets.
→ Electrical components, including switches, relays, and ignition coils.
→ Filters, such as oil filters and air filters.
→ Brake pads and brake cables.
→ Suspension components, including shocks and fork seals.
→ Chains and sprockets.
→ Tires and inner tubes.
Obtain the Kawasaki PDF manual by clicking on the button below to access the detailed shop handbook. Your download link for the official Kawasaki OEM shop manual/parts catalog will be available on the checkout page after payment. We will promptly email you the payment confirmation. Once your payment is completed, the download link for the official Kawasaki OEM shop manual/parts catalog will be provided on the checkout page, and we will send you an email to confirm your payment.
§
