Elna FunStyler Sewing Machine Service Manual (P/N 395705-22)

• Covers the 1998 Elna FunStyler sewing machine, documenting machine parts, stitch configurations, and routine maintenance for the 395705-22 build.
• Official OEM publication P/N 395705-22, printed in Taiwan, detailing original factory specifications.
• Contains 48 pages of annotated illustrations, descriptive setup procedures, and a detailed troubleshooting matrix for operational issues.
• Provides the baseline factory parameters essential for distinguishing between standard operation and mechanical malfunctions.

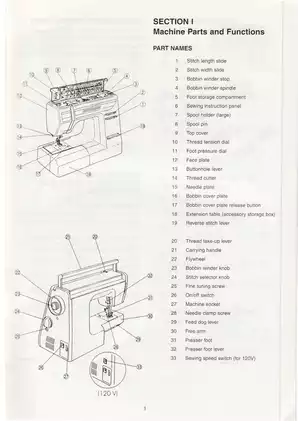

• Identifies critical assemblies including the thread take-up lever, bobbin winder spindle, face plate, needle plate, reverse stitch lever, free arm, and flywheel.
• Details auxiliary components like the feed dog lever, buttonhole lever, presser foot lever, spool pin, bobbin cover plate, fine tuning screw, sewing speed switch, and quilting guide.

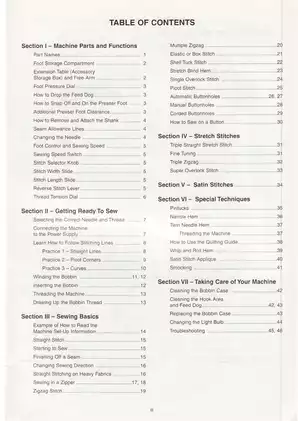

Component and Stitch Overview

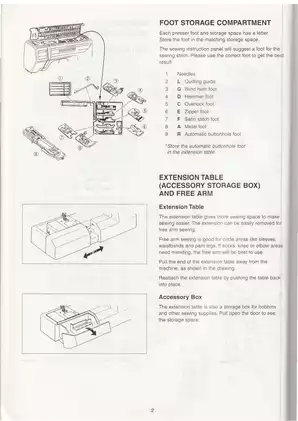

This PDF manual details the complete array of machine components and functional features, supported by component identification drawings, machine threading diagrams, bobbin winding views, needle and thread selection charts, hook area cleaning schematics, and zipper application views. It catalogs parts like the stitch length and width slides, thread tension dial, and foot pressure adjustments. You will find parameters for managing bobbins, threading the unit, and calibrating for diverse fabric weights—from lightweight tricot to heavy denim. The documentation breaks down specific stitch selections. It covers multiple zigzag, shell tuck, stretch blind hem, and super overlock stitches, pairing them with correct needle usage. Specialized applications such as pintucks, corded buttonholes, twin needle hems, and manual smocking are also outlined.

Specifications and Maintenance Data

The publication provides essential reference points for servicing the machine. For daily workshop routines, this reference offers specific step-by-step instructions for deep cleaning the hook area and feed dog—which requires removing the needle plate—as well as calibrating stretch stitches via the fine-tuning screw. Utilizing these procedures empowers DIYers and mechanics to independently resolve noisy operations, thread jams, and feeding issues without paying for an expensive professional repair. The lighting section lists specifications for a 12.3V/3W halogen bulb or an alternative 15W tungsten lamp. Maintenance routines cover cleaning the hook area and bobbin case to prevent lint buildup, a primary cause of stitch puckering. Documented thread tension settings advise a standard dial position of 4 for straight stitches, requiring adjustments for heavier layers or specialized embroidery. Reference tables match correct needle and thread pairings: 10/70 or 11/75 needles for light fabrics, and 12/80 or 14/90 for heavy denim. Before inspecting internal mechanisms or replacing electrical components, always verify the machine is completely disconnected from its power source to prevent accidental injury. This official OEM reference equips owners and technicians with the exact operational baselines needed to maintain the 1998 FunStyler.
