Mini Morris Austin Cooper 1969–1996 Haynes Service & Repair Manual

This Haynes Mini 1969–1996 service and repair publication covers the Mini 850, 1000, Clubman, 1275 GT, Cooper S Mk III, and 1990-on Cooper, including Saloon, Estate, Van, and Pick-up configurations. Engine coverage distinguishes the 85H, 99H, 10H, 12H, and 12A A-series units.

Included chapters: Chapters 1–5, Chapters 9–12, and the Reference section. Dedicated clutch, transmission, and driveshaft Chapters 6–8 and the separate Weekly Checks section are not included. This is a Haynes publication rather than a Rover, Austin, or Morris factory workshop manual.

PDF Text Search, Wiring Detail, and Page Count

Search and diagram access: All files contain searchable chapter text, but most labels within the wiring diagrams are not searchable; separate wiring keys are searchable. There are no embedded PDF bookmarks. Small wiring labels require enlargement.

The ZIP contains 14 printable PDFs totaling 249 pages: Chapters 1–5 comprise 128 pages across nine files; Chapters 9–12 comprise 97 pages across four files; Reference comprises 24 pages. The total includes one nontechnical supplementary page in Reference.

A-Series Engine Repair, Fuel Systems, and Chassis Service

The following selected contents outline the supplied chapters rather than reproduce the full contents list; other topics include radio security precautions and body/subframe alignment checks.

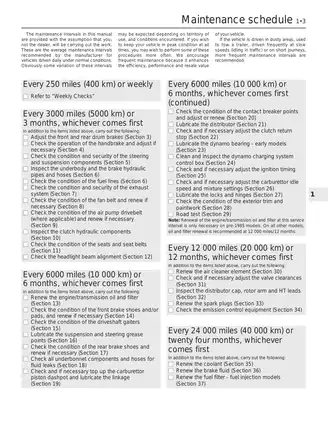

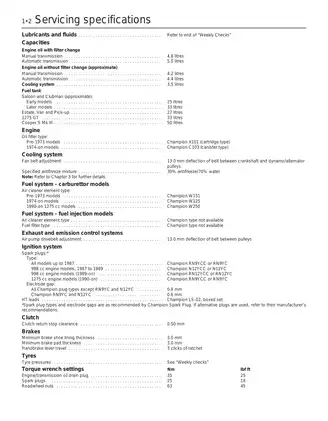

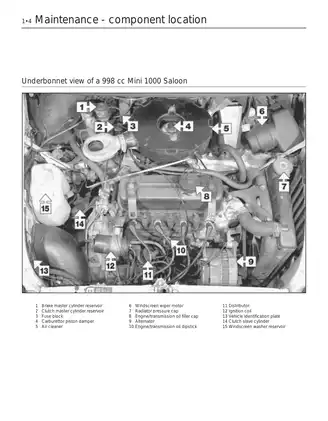

• Routine maintenance: A staged service schedule, component-location views, fluid and filter changes, lubrication, brake checks, ignition checks, and road-test assessments.

• In-car engine repair: Compression testing, TDC identification, cylinder-head removal, valve adjustment, timing-chain service, crankshaft oil seals, and torque-converter removal.

• Engine overhaul: Power-unit removal, cylinder-head rebuilding, camshaft and tappet inspection, oil-pump checks, crankshaft and bearing work, piston rings, reassembly, and initial startup.

• Fuel-system diagnosis: SU HS2, HS4, HIF38, and HIF44 carburetor overhaul and adjustment, plus MEMS-Spi pressure testing and component replacement.

• Brake hydraulics: Drum and disc service, wheel-cylinder and caliper overhaul, single- and dual-circuit bleeding, master-cylinder identification, servo checks, and hydraulic valves.

• Suspension and steering: Rubber-cone and Hydrolastic systems, hub bearings, swivel joints, suspension and radius arms, subframes, steering-column work, and rack overhaul.

• Electrical troubleshooting: Starting, charging, ignition, and body-circuit tests, supported by 32 wiring diagrams for specific models and electrical systems.

The difficulty ratings distinguish basic maintenance from experienced DIY and professional work; engine overhaul and specialist fuel-system or suspension operations require the corresponding tools and equipment.

Engine Access and Internal Inspection

Power-unit removal: Procedures distinguish lifting the engine/transmission assembly through the engine bay from removing it with the front subframe. Properly rated lifting and support equipment is required.

The overhaul material follows dismantling, inspection, bearing selection, running-clearance checks, and reassembly. It includes cylinder-block inspection, valve and guide assessment, connecting rods, and engine-specific bore, stroke, compression-ratio, clearance, wear-limit, and torque tables.

Lubrication and seals: Additional procedures cover the rocker shaft, oil-pressure relief valve, filter housing, delivery pipe, and oil cooler. Primary-gear seal replacement is described, but the prerequisite flywheel/clutch removal procedure is referred to the missing Chapter 6.

Automatic-transmission torque-converter removal is documented, with Rover tool 18G1086 specified. Primary-gear seal work identifies tools 18G1068B and 18G1043. Seal-fitting notes address damage from shaft splines and the risk of obstructing the converter-housing oil drain.

SU Carburetors and MEMS-Spi Diagnosis

Carbureted models: Application tables distinguish carburetor types, needles, piston springs, jets, and idle and mixture settings. Repair sections extend to floats, needle valves, jet centering, linkage setup, and single- or twin-carburetor adjustment.

These variant-specific tables help match parts and adjustment procedures to the installed carburetor. Twin-SU service notes address spindle-linkage damage during removal and mounting-flange distortion during refitting.

Fuel-injected models: Component procedures cover the fuel pump and tank, throttle body, injector housing, stepper-motor indexing, throttle potentiometer, ECU/MAP sensor, inlet-air and coolant-temperature sensors, inertia switch, relay module, PTC manifold heater, and inlet manifold.

The pressure-check procedure specifies Rover gauge and adapter 18G1500. Damaged injector-housing adapter threads can require replacement of the housing and adapters together, and the fuel lines retain pressure after shutdown.

Diagnostic limits: Detailed electronic fault tracing requires suitable Rover diagnostic equipment. Idle/CO correction and ignition-timing changes are ECU-controlled rather than ordinary mechanical adjustments, with ECU reprogramming specified where applicable.

Cooling, Ignition, and Emission Controls

Cooling coverage includes flushing, radiator and water-pump replacement, thermostat testing, auxiliary-fan controls, and heater servicing.

Starting and charging sections address the battery, dynamo, control box, alternator, starter motor, and solenoid. Ignition procedures distinguish contact-breaker and Lucas electronic systems and include crankshaft-sensor and reluctor-ring work.

Exhaust and emission sections cover crankcase ventilation, evaporative controls, the air pump, catalytic converter, and Lambda sensor.

Brake Variants, Suspension, and Bodywork

Master-cylinder coverage distinguishes the single-circuit design and four tandem-cylinder types, with identification illustrations and variant-specific bleeding information. Pressure-regulating and reducing valves and the pressure-differential warning actuator are also covered.

Hydrolastic layout and operating principles are explained separately from rubber-cone suspension. Displacer or pipe work requires depressurization, evacuation, and repressurization equipment; rubber-cone work specifies compressor 18G574B.

Bodywork procedures include minor damage and corrosion repair, doors, locks, glass, interior fittings, and subframe-alignment checks. Exploded illustrations include the SU HS4 and SU HIF carburetors, single-circuit brake master cylinder, and front hub.

Wiring Diagrams and Workshop References

Electrical fault-finding covers open circuits, shorts, and ground faults. Diagram coverage progresses from early dynamo and alternator layouts to later carbureted circuits and fuel-injected systems.

Wiring Diagram 21 shows the fuel-injected engine-management circuit. Other diagrams separate power distribution, instruments, cooling fan, lighting, heater, and automatic-selector illumination.

The Reference section provides vehicle and powertrain identification locations, jacking guidance, tool advice, historical MOT checks, symptom-based fault finding, general repair practices, dimensions and weights, a glossary, and an index.

Examples of MEMS-Spi Pressure and Sensor Data

The MEMS-Spi regulated fuel-pressure specification is 1.0 bar ± 4%, accompanying the fuel-pressure checking procedure.

Throttle-potentiometer specifications distinguish 0–1 volt with the throttle closed from 4–5 volts with the throttle open.
