Mini Cooper / Cooper S 2002–2006 Repair & Owner’s Manual Collection (P/N 01 41 0 156 724)

The owner’s manuals explain factory controls and routine checks; the workshop articles provide component-level repair and diagnostic information. Select procedures by chassis, transmission, production details and equipment, since applicability differs between sections.

The general operating-fluid tables also include later MINI chassis. Those entries do not provide complete repair coverage for those vehicles.

PDF Search, Bookmarks and Diagram Detail

Text search and diagrams: The three owner’s manuals have searchable text and embedded bookmarks. The other PDFs have no embedded bookmarks; their text sections are searchable, while many wiring and component-location labels are graphics. Small wiring labels require zooming.

The ZIP contains 3,987 pages across 89 printable PDFs, including 17 unnumbered cover, introductory, blank and refueling-reference pages within the owner’s manuals. One separate PNG image is also included.

Engine, Drivetrain and Electrical Coverage

These selected coverage highlights show the main types of work included. Further topics include cruise control and audio/navigation service.

• Engine mechanical: Engine removal, cylinder-head work, timing-chain replacement, compression testing and oil-pressure checks, with separate Cooper and Cooper S procedures.

• Transmission and clutch: R65 internal overhaul, manual-transmission service, CVT removal and servicing, clutch replacement and bleeding, plus Cooper S automatic-transmission system information.

• Brakes and chassis: ABS/ASC+T and DSC bleeding procedures, caliper repair, parking-brake adjustment, front suspension work, wheel-bearing replacement and steering-system service.

• Electrical diagnosis: EMS2000 engine-management information, OBD-II code tables, component-location illustrations, system wiring diagrams, and coding and programming background.

• Body and roof: Interior and exterior trim removal, seat repair, sunroof adjustment, and convertible-top mechanical, hydraulic and electrical service.

• Owner operation: Dashboard indicators, central locking, driving controls, fluid checks, tire care, roadside assistance and the MINI Maintenance System.

The repair sections suit trained technicians with diagnostic equipment and component-specific tools; the owner’s manuals cover everyday operation and routine checks.

Engine and Cooling Repairs

The Cooper mechanical section extends to crankshaft main-bearing and connecting-rod-bearing replacement. Cooper S instructions include supercharger removal and the associated water-pump access.

Compression, oil-pressure and cylinder-head leak checks support fault assessment before major disassembly. Illustrated procedures identify the relevant tools and connect the work to technical-data and tightening-torque sections.

The Cooper S cooling instructions identify intercooler guard 11 8 480 and warn that running the engine with this protective guard fitted can cause engine damage. Cooling-system work also carries a scalding hazard and requires a cooled engine.

Transmission-Specific Service

The internal transmission-overhaul article applies to the Cooper’s R65. Getrag manual-transmission service data and Cooper S automatic-transmission operating descriptions should not be treated as equivalent internal-overhaul coverage.

CVT articles cover unit removal and installation, sump work, fluid servicing and selector-related adjustments. The GACVT16Z service instructions specify Esso EZL 799 and warn that ordinary ATF can damage the transmission.

Electrical Diagnosis and Brake Equipment

OBD-II tables are accompanied by manufacturer-specific fault information, readiness-monitor explanations and DISplus/GT-1 diagnostic references. EMS2000 descriptions explain how engine control interacts with the immobilizer, transmission and climate-control systems.

Wiring examples include automatic A/C circuits with different cooling-fan arrangements, ABS circuits with DSC, naturally aspirated and supercharged engine-performance circuits, electronic power steering, and convertible-top circuits.

The DSC hydraulic procedures require DIS-assisted bleeding and a final service-function check. This equipment requirement matters when planning work on the master cylinder, hydraulic unit or connecting lines.

Convertible Top and Factory Controls

The convertible-top material covers hydraulic lines and cylinders, fabric and frame replacement, Hall-sensor adjustment and emergency operation. Its operating-condition checks help distinguish an unmet roof interlock from a component fault before further diagnosis.

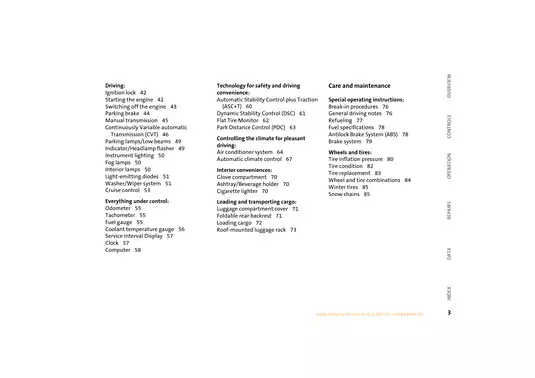

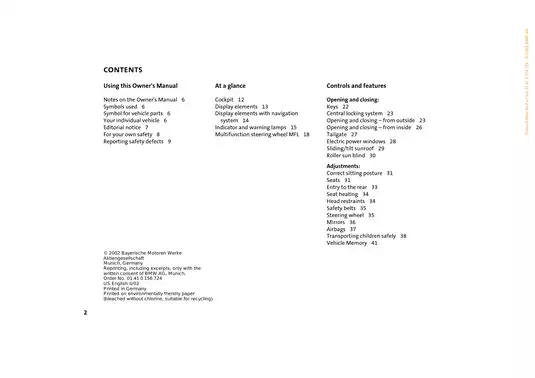

The owner’s manuals explain ignition and shift-interlock behavior, manual and automatic transmission operation, mirrors, climate controls and multifunction steering-wheel features. They also cover vehicle care, condition-based service intervals, jump-starting, towing and the jacking points used for wheel changes.

Selected Compression and Oil-Level References

Cylinder compression: The engine technical data lists 11.5–17.0 bar for the W10 Cooper and 9.0–13.5 bar for the W11 Cooper S, with approximately equal readings across all cylinders. The mechanical sections describe the corresponding compression test.

Oil-level reference: The 2002 owner’s manual equates the span between the MIN and MAX dipstick marks to approximately 1.1 US quarts (1 liter).
