1969-2001 Mini Cooper Service Manual
1969-2001 Mini Cooper service and repair documentation with detailed step-by-step procedures for all major components, including engine, transmission, and electrical systems. Publication C4085-91017.
Manual Preview

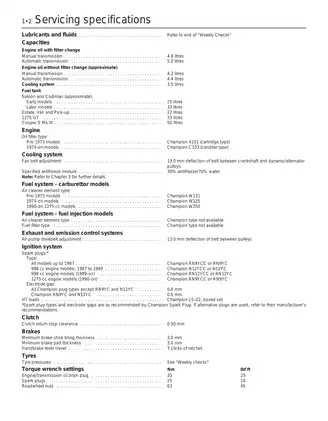

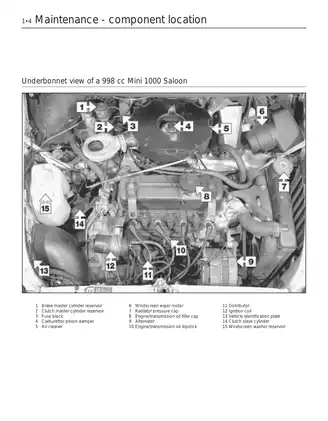

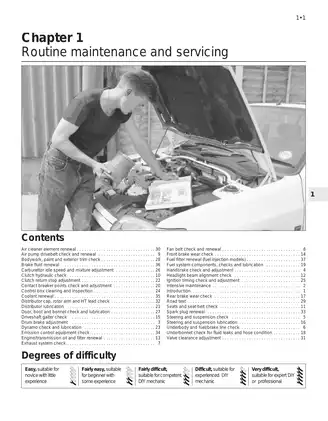

Sample pages from the 1969-2001 Mini Cooper Service Manual manual
Purchase & Download
Mini Models Covered & Key Technical Specifications
Models: Mini Cooper, Mini 850, Mini 1000, Mini Clubman, Mini 1275 GT, Mini Cooper S
Sub-models / Variants: Saloon, Estate, Van, Pick-up, Manual transmission, Automatic transmission, 848 cc, 998 cc, 1098 cc, 1275 cc, Carburettor models, Fuel injection models
Trade Names: Mini, Cooper, Clubman, Cooper S, Mini 1000
Build Years: 1969–2001
Technical Data:
- Engine oil capacity (manual): 4.8 liters with filter change
- Cooling system capacity: 3.5 liters
- Fan belt tension: 13.0 mm deflection midway between pulleys
- Spark plug electrode gap: 0.8 mm (standard), 0.6 mm (specified types)
- Engine/transmission oil drain plug torque: 35 Nm (25 lbf ft)
- Roadwheel nut torque: 63 Nm (45 lbf ft)
- Minimum brake pad/shoe thickness: 3.0 mm
Mini Manual Features & Content Preview
Haynes Mini Cooper 1969–2001 Service and Repair Manual
- Covers 1969–2001 Mini Cooper and associated models, including 850, 1000, Clubman, and 1275 GT variants with manual or automatic transmission
- Official Haynes publication 0646, documenting mechanical and routine maintenance procedures for the specified vehicle range
- Contains 97 detailed illustrations and exploded-view diagrams covering engine, cooling, fuel, and exhaust systems
- Stored against your account so you can retrieve it after a hard-drive loss
- Indexed PDF search covers every chapter and appendix

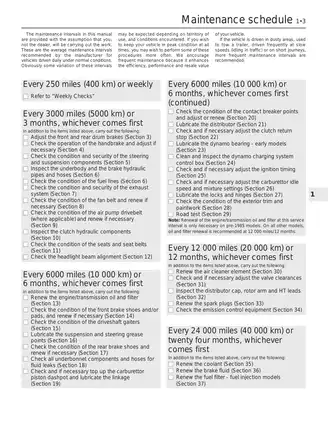

- Contains maintenance schedule covering mileage and time-based intervals from 250 miles up to 24,000 miles
- Includes specific sections for fuel injection management and carburettor tuning
- This 500-page manual is the comprehensive reference for the Mini 1969–2001, providing technical specifications and systematic maintenance procedures used by enthusiasts and DIY mechanics worldwide
Engine and Fuel System Walkthrough
This manual details routine maintenance and servicing for the A-series engine family, spanning from the 848 cc through 1275 cc configurations. The documentation covers engine oil and filter renewal, valve clearance adjustments, and spark plug replacement. Detailed chapters address the operation, removal, and overhaul of SU carburettor types including HS2, HS4, HIF38, and HIF44, alongside single-point fuel injection systems (MEMS-Spi).
Specification Highlights
Technical data sections provide critical values for engine assembly and fluid management. The engine/transmission oil drain plug torque is specified at 35 Nm (25 lbf ft) in the service specifications table. Valve clearance for the 12A engine series is documented at 0.33–0.38 mm for cold adjustments. The radiator pressure cap setting is listed as 0.91 bar for pre-1974 models and 1.05 bar for subsequent production years. For technical depth regarding how factory workshop documentation is structured, refer to the provided technical reference pages. All service data shown here is for reference only — qualified technicians and the original OEM documentation remain the authoritative source for any hands-on work.
An official 500-page Haynes OEM-style manual covering the 1969–2001 Mini Cooper, documenting engine, chassis, electrical, fuel injection, and cooling specifications for the complete range of A-series engine builds.
Document Reference: Haynes publication 0646
