Ariens 22000 Series Sno-Thro Snow Blower Parts & Repair Manual, 1969–1978 (P/N 000138A)
59 Pages • 1 Printable PDF (English) • Download
Ariens Models Covered & Key Technical Specifications
Models: 22999, 922002, 922003, 922006, 922007, 922008, 922009, 922010, 922012, 922013, 922014, 922015, 922016, 922017, 922018, 922019, 922020, 922021, 922022, 922023, 922024, 922025, 922999
Sub-models / Variants: 4 HP, 5 HP, 6 HP, 20-inch, 24-inch, Tractor (friction-wheel drive), Sno-Thro Attachment (helicon gearcase), Electric Starter Kit. Drive-adjustment designations: 4-20″ (922006, 922012, 922018), 5-20″ (922008, 922014, 922020), 6-24″ (922009, 922016, 922022), 5-Tractor (922021). Compact Sno-Thro (922012, 922014, 922016).
Trade Names: Ariens Sno-Thro
Model Years: 1969–1978 (1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978)
Serial Numbers: Parts-index ranges: 22999: 000001–010000, 010000–019553; 922002: 000001–010517; 922003: 000001–010599, 010600–025500, 025501–033700, 033701–040000; 922006: 000101–006600, 006601–009778; 922007: 000101–000125, 000125 & Up; 922008: 000101–008501, 008501–013504; 922009: 000101–003834; 922010: 000101–003824, 003906–006163; 922012: 000101–002678; 922014: 000101–003901; 922016: 000101–002449; 922018: 000101–008000, 008001 & Up; 922020: 000101–011000, 011001 & Up; 922022 and 922025: 000101–007000, 007001 & Up; 922024: 000101–018000, 018001 & Up; 922013, 922015, 922017, 922019, 922021, 922023 and 922999: 000101 & Up.
Serial-specific Parts: Model 922002 before serial number 000401 uses axle shaft 22017 and wheel hub 22018.
Original Engine Codes: Tecumseh — 22999 (HS40-55232A from S/N 000001; HS40-55265B from S/N 010001); 922999 (HS40-55265B from S/N 000001 in the engine listing); 922002 (HS40-55265C); 922006, 922012 and 922013 (HS40-55440C); 922007, 922008, 922014 and 922015 (HS50-67008); 922009, 922016 and 922017 (H60-75376J); 922018 (HS40-55440D from S/N 000101; HS40-55440E from S/N 003801); 922019 (HS40-55440D, HS40-55440E); 922020 (HS50-67008A from S/N 000101; HS50-67008B from S/N 004701); 922021 (HS50-67008A, HS50-67008B); 922022 (H60-75376L from S/N 000101; H60-75376M from S/N 002401); 922023 (H60-75376L, H60-75376M).
Parts-list Engine Designations: 4 HP (Tecumseh HSSK-40 55440C, HSSK-40 55440D, HSSK-40 55440E); 5 HP (Tecumseh HSSK-50 67008, HSSK-50 67008A, HSSK-50 67008B); 6 HP (Tecumseh HSK60 75376J, HSK60 75376L, HSK60 75376M).
- Rated power output: 4, 5 or 6 hp, depending on model
Ariens Manual Features & Selected Content Preview

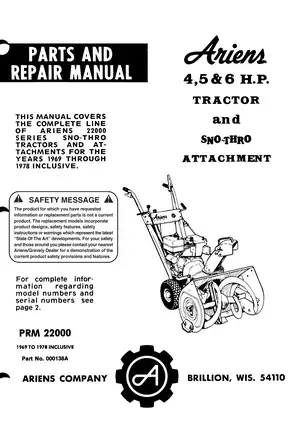

This Ariens 22000 Series Sno-Thro parts and repair manual, P/N 000138A (PRM 22000), covers the listed 1969–1978 tractors and snow-clearing attachments. It combines model-specific exploded parts views with service instructions, adjustments, and troubleshooting.
PDF Search and Wiring Detail

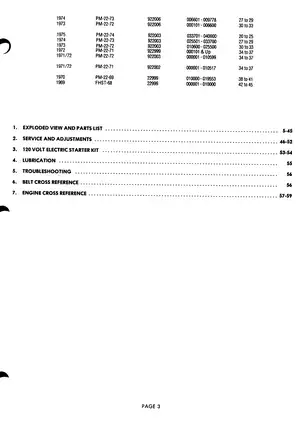

Text search and navigation: Only the cover’s safety message is searchable. Two bookmarks open the introductory page and the cover. Use the printed index to locate sections, and zoom in to read the smaller interlock wiring labels.
The printable 59-page PDF contains 58 manual pages, including the cover, plus one introductory page. Printed numbering skips 4 and 19, and two distinct parts-list pages are both labeled 11. The manual is in English, with some French headings, notes, and wiring labels.
Friction Drive, Snow-Clearing Parts, and Interlock Service

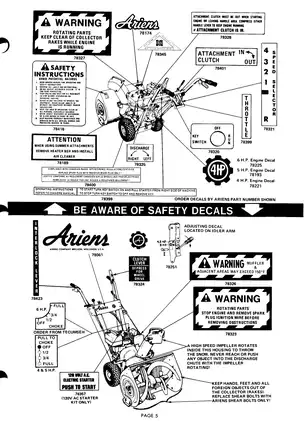

These selected topics give a look inside the manual. The parts illustrations also identify safety decals and show the 10997 slicer bar kit.
-
Drive-system repair: Step-by-step instructions for replacing tractor and attachment belts and the friction wheel, plus carrier removal and refitting and drive spindle housing removal.
-
Controls and adjustments: Drive disc, clutch handle, speed selector, shift spring, and chute crank adjustments, with illustrations of the interlock linkage.
-
Snow-clearing assemblies: Exploded views and parts lists for the collector housing, rakes, scraper blade, discharge chute, helicon gear, and rotor gearcase.
-
Electrical and starting: Interlock wiring diagrams, a safety-switch hardware correction, and Tecumseh electric starter installation instructions with mounting and cord-routing illustrations.
-
Troubleshooting: A fault-and-cause chart covering belt failures, gearcase damage, loose friction hubs, poor shifting, loss of drive, and engine shutdown when the blower is engaged.
-
Parts and lubrication: Model- and serial-specific parts references, engine and belt cross-reference tables, and lubrication instructions for the tractor drive and Sno-Thro attachment.
The illustrated procedures suit experienced owners and repair technicians who are comfortable working from parts diagrams. Ariens recommends having maintenance adjustments made by a dealer.
Parts Identification and Engine References

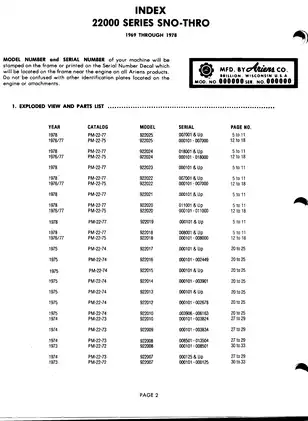

The model-and-serial index directs you to the applicable parts illustrations before you order components. It distinguishes production changes that a model number alone may not resolve, such as the axle-shaft and wheel-hub change on model 922002.
The Tecumseh engine tables cross-reference original engines, replacement engines, and short blocks. For detailed engine service, including internal overhaul, the manual directs readers to the separate engine manufacturer’s booklet.
Friction Drive, Belts, and Carrier Service
The service section illustrates drive-disc adjustment, belt-finger spacing, and sheave alignment. It distinguishes the tractor clutch position used to check the matched drive belts from the attachment clutch position used to check the blower belt.
The carrier instructions distinguish the earlier flush hex shaft from the later longer shaft. They also show where cotter pins replaced ratchet plates, so you can identify the assembly fitted to your machine before choosing parts or following the applicable procedure.
The tractor drive belts are specified as matched pairs. The troubleshooting chart lists mismatched belts as a cause of failure, and the spindle housing procedure warns that forcing a belt over its pulley can cut the belt cords.
Before servicing the belts or replacing a shear bolt, shut off the engine and disconnect the spark plug wire.
Rakes, Scraper Blade, and Gearcase
The attachment drawings identify the snow scoop, rake shafts, fan, seals, bearings, and helicon gear components. Earlier parts lists identify helicon gear 10183 and pinion shaft 22103 as a set, which matters when ordering replacements.
Service coverage includes runner and scraper-blade adjustment, shear-bolt replacement, and gearcase lubrication. The runner instructions distinguish gravel from hard surfaces. The wrong shear bolt can allow a jammed rake to damage the gear drive.
The gearcase exploded views support parts identification. The service instructions cover lubrication and related attachment work. A full internal gearcase overhaul procedure is outside the scope of this manual.
Interlock Wiring and Electric Starter Installation
The interlock wiring plates identify Module T, the key switch, engine ground, the magneto connection, and wire colors. They help trace the shutdown circuit and match the wiring harness to the illustrated components.
The safety-switch and activator-rod hardware correction applies to models 922012, 922014, and 922016. It addresses loosening Taptite screws and specifies replacement hex-head screws 59097 and external-tooth lockwashers 63026.
The Tecumseh 120-volt electric starter section covers bracket and switch-box installation, cord routing, and the grounded power supply. Its illustrations show how the starter bracket fits against the blower housing and fuel-tank bracket and where the switch box mounts in the carburetor cover.
Friction-Drive and Gearcase Specification Samples
The friction-wheel replacement procedure specifies 45–55 ft-lb for the retaining nut. The blower-housing reassembly procedure calls for 1/8 inch of clearance around the attachment belt at the belt finger, checked with the attachment clutch engaged.
For the Sno-Thro gearcase, the lubrication section specifies about 5 ounces of Ariens Premium Gear Lubricant MP-90 at each 25-hour oil change.
