Ariens 926 Sno-Thro 2007 Snow Blower Service Manual (P/N 02983600)

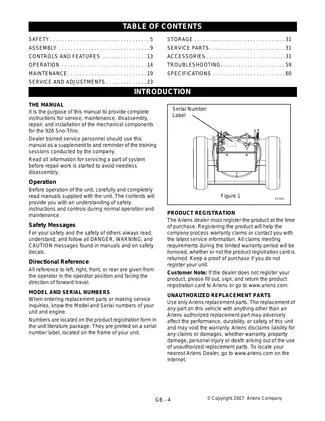

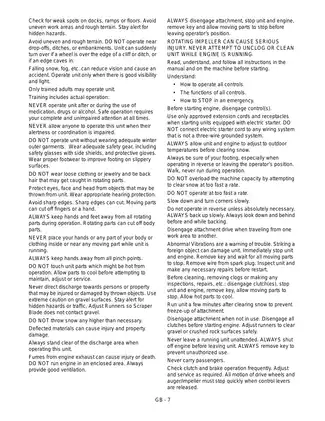

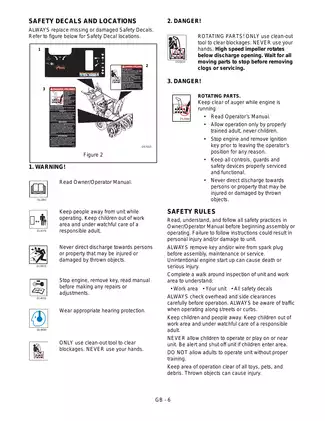

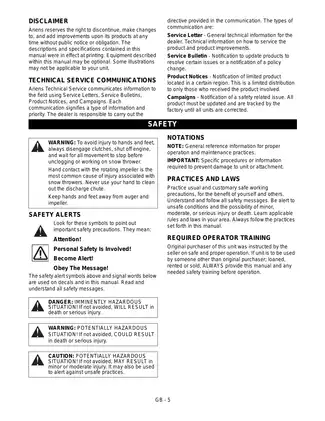

Ariens 926 Sno-Thro Service Manual, P/N 02983600, June 2007 edition, covers the listed 926-series snow blowers with Tecumseh and Briggs & Stratton engine configurations rated from 8.5 to 13.0 HP. Model numbers and engine variants are identified above.

PDF Search, Section Bookmarks and Diagram Detail

Text navigation and wiring labels: The service text and specification tables support text search, but some labels within the wiring diagrams cannot be found through search. Embedded bookmarks lead to the main sections and specification tables. Small wire-color labels and terminal numbers are clearly readable when enlarged.

The download is one printable, English-language 62-page PDF, including 60 content pages, the front cover and the manufacturer contact page.

Drive, Auger Gear Case and Electrical Service

These selected content highlights outline the main service areas. Other included topics cover starting procedures and short- and long-term storage.

• Belt and friction drive repair: Step-by-step procedures for friction disc replacement, attachment and traction drive belt replacement, speed-selector adjustment, and clutch/brake adjustment.

• Axles and reduction drive: Wheel, axle and pinion-shaft removal and installation, chain and sprocket service, and remote differential and wheel-lock adjustments.

• Auger and chute service: Auger/impeller removal, shear bolt replacement, scraper blade and runner adjustment, and discharge chute and remote deflector cable settings.

• Gear case repair: Separate aluminum and cast-iron teardown and assembly procedures, with seal, bushing and gear inspection information and lubrication guidance.

• Engine service: Generic engine troubleshooting, engine removal and installation, and Engine and Belt Drive exploded views with model-specific parts lists.

• Electrical reference: Wiring and continuity diagrams for headlights, heated handles and applicable battery-start systems, including key-switch and solenoid connections.

Written as a supplement for dealer-trained service personnel, this manual assumes the reader has the service training needed for the work described.

Assembly and Maintenance Breakdown

Factory assembly instructions cover handlebar unfolding, discharge chute installation and remote deflector cabling. The Maintenance Schedule chart organizes clutch checks, lubrication and battery care, while dual-handle interlock checks address control operation.

Tire-pressure guidance refers to the tire sidewall markings. Engine oil, cooling and other engine-specific maintenance items direct the reader to the separate engine manual where detailed instructions are required.

Traction Drive Diagnosis and Internal Layouts

The service procedures and assembly views support routine bench work and larger drivetrain repairs. For loss of forward or reverse drive, the troubleshooting table points to friction disc condition, traction belt operation and speed-selector adjustment, connecting the symptom with the relevant service sections.

Reduction drive coverage includes hex-shaft work and a drive plate assembly view. Wheel and axle illustrations distinguish pin-lock, remote differential and remote wheel-lock hardware, including dog sliding clutches. The Service Parts table also identifies traction belts by model and serial-number break.

During separation of the tractor frame and blower housing, inadequate support can bend the bottom cover plate. The manual addresses this risk in its belt-service instructions.

Auger Gear Cases and Chute Components

The Gear Case-Aluminum and Gear Case-Cast Iron exploded views accompany separate repair procedures. These sections address seals, flange bushings, bronze gears and worm-shaft components, with Ariens L-2 lubrication guidance for the housings.

Discharge chute illustrations identify the locking gear and remote deflector linkages. Wiping the gearcase filler plug can remove its thread sealant and cause leaks—a specific maintenance caution included in the text.

Working on these snow throwers involves tensioned belts and heavy moving parts. Follow the manual’s isolation and support precautions, and allow all moving mechanisms to stop before maintenance.

Engine Scope and Electrical Diagrams

Engine coverage consists of a generic troubleshooting chart and engine removal and installation procedures. Detailed engine service is referred to separate engine literature. Four specification tables distinguish the Tecumseh and Briggs & Stratton Powerbuilt/Intek configurations, including power ratings, dimensions and starting arrangements.

The Continuity Diagram shows key-switch contact states, hand-warmer switch positions and solenoid operation for the applicable models. The Wiring Diagram for 926500 and 926501 includes the battery, starter, fuse and ignition-switch circuits. Separate headlight and hand-warmer diagrams let the reader follow the electrical layout used on the relevant configuration.

Clutch Spring and Drive Clearance Examples

The attachment and traction-drive clutch sections specify a spring-length increase of 1/2–11/16 in. (12.7–17.5 mm) between the disengaged and engaged lever positions.

The traction-drive adjustment section also specifies more than 1/32 in. (0.8 mm) clearance between the friction disc and drive plate assembly with the clutch disengaged.
