1974–1975 Ariens 931001, 931002 & 931003 Garden Tractors and Attachments Parts & Repair Manual (P/N PRM 31000)

This Ariens Parts and Repair Manual, publication PRM 31000, covers 1974–1975 931000-series S-12, S-14, and S-16 garden tractors and their documented attachments.

• Tractor adjustments: Hydrostatic neutral and friction settings, park-lock adjustment, front-wheel toe-in, steering gear adjustment, and front-wheel bearing service.

• Vickers overhaul: Pump and motor disassembly, rotating-group inspection, replenishing-pump service, valve-plate and transfer-block repair, reassembly, and startup after repair.

• Lifts and PTO: Manual and hydraulic lift operation, front, center, and rear rock-shaft linkages, and front and rear PTO installation.

• Rotary mowers: Deck leveling, blade-pitch adjustment, drive-belt replacement, and separate gearbox repair procedures for load-ring and improved-output-shaft designs.

• Sno-Thro: Auger drive-chain adjustment, chute and deflector controls, skid settings, shear-hub parts, and failure/cause/solution charts.

• Rear tiller: Mounting and removal, belt-guide and chain adjustments, clutch-pressure settings, tine extensions, and leveler-blade installation.

• Electrical system: Tractor wiring diagram, starting-fault charts, safety-switch circuits, regulator/rectifier connections, battery care, and electromagnetic PTO-clutch components.

Routine maintenance suits owners familiar with tractor service; Vickers overhaul calls for hydraulic-system knowledge and bearing pullers, seal drivers, snap-ring pliers, and torque-measuring tools.

Tractor Controls, Steering and Vickers Repair

The tractor sections cover central controls, lubrication schedules, seasonal storage, front-wheel bearing maintenance, and steering adjustments. Fuel-system coverage includes pump priming, filter cleaning, and symptom-based troubleshooting.

Engine coverage: Internal engine repair and engine exploded-view parts lists belong to separate engine-manufacturer literature. The included engine cross-reference identifies original engines and listed replacements.

Hydrostatic linkage procedures address tractor creep in neutral, neutralizer-pedal response, and control-lever friction. The transmission troubleshooting guide sorts symptoms by travel direction, load, speed, and temperature, helping distinguish control or charge-system problems from pump and motor faults before teardown.

Internal Vickers procedures cover cylinder blocks, piston-and-shoe assemblies, swash plates, replenishing pumps, check valves, and relief valves. Illustrations include the T66 Motor and T66 and TA6 Transfer Block Assembly, plus tractor-specific pressure-port views.

Hydraulic service and spring-loaded rock shafts require the manual’s precautions for released pressure and securely supported loads. Hydrostatic linkage adjustments also involve the rotating cooling fan.

Mower Gearbox Versions

The mower parts lists identify 831001 and 831002, while the rotary-mower service section identifies 831011 and 831012. Separate chapters distinguish the load-ring gearbox from the improved-output-shaft design, with serial breaks and replacement mappings that help match the repair procedure to the installed gearbox.

Gearbox section views show bearing cups and cones, spacers, seals, adjustment plugs, and gasket selection. The manual also covers deck flotation, blade leveling, belt routing, and idler-arm installation.

On load-ring gearboxes, the manual warns that impact tools or excessive tightening can deform or shear the drive pin and overload the bearings.

Sno-Thro, Rear Tiller and PTO Attachments

Sno-Thro coverage includes discharge-chute and deflector controls, auger-chain adjustment, skid positioning, and shear-hub parts. Troubleshooting addresses chute binding, auger plugging, shear-bolt failure, and PTO universal-joint phasing.

The rear-tiller parts list identifies 831005; its service section identifies 831006. Procedures cover drive sprockets, belt and idler alignment, enclosed and external chain adjustment, clutch pressure, and leveler-blade and tine-extension installation.

Excessive tiller clutch pressure can disable its slip protection and damage the gear case when the tines strike a solid object.

Rear PTO installation includes shaft-alignment checks. The front PTO attachment section covers assembly, coupling alignment, and stationary light-duty applications.

Electrical Diagrams and Parts Identification

The Dash, Controls and Electrical drawing includes a wiring diagram for lighting, ignition, starting, charging, safety switches, and the electromagnetic PTO clutch, with wire colors and connector references.

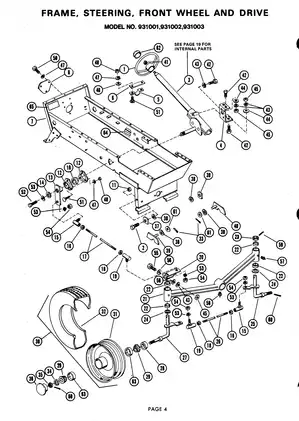

Rear-axle exploded views identify the differential case, gears, bearings, and shim parts. Additional parts drawings cover tie rods, rock shafts, drive sprockets, idler arms, and attachment controls.

Examples of Mower Gearbox Clearances

These clearances are a small sample of the mower repair data in the manual.

For the load-ring gearbox, input-shaft end play is 0.001–0.003 inch. The improved-output-shaft gearbox procedure specifies 0.003–0.008 inch input-shaft end play.

Both procedures specify approximately 0.005–0.015 inch gear backlash. Backlash and input-shaft end play are separate checks, with different assembly specifications for the two gearbox designs.

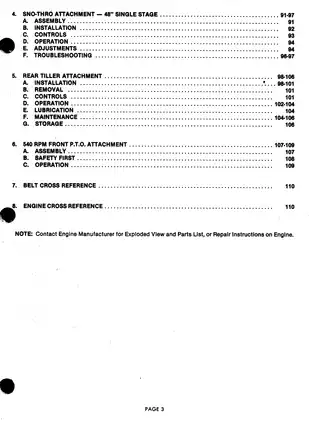

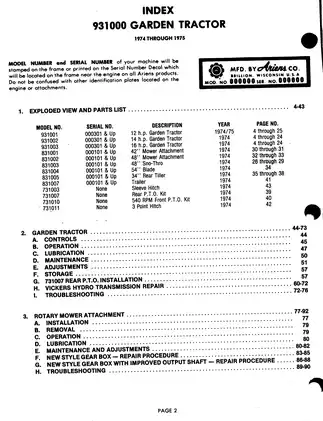

PDF Bookmarks and Page Breakdown

Text search and wiring detail: PDF text search is not available. Embedded bookmarks provide access to parts lists, service sections, and cross-reference indexes. Small wire-color labels and connector references in the tractor wiring diagram require zooming.

One printable English-language PDF contains 111 pages total: 110 manual pages, including the cover, indexes, and belt/engine cross-reference page, plus one preliminary additional page already included in the total.
