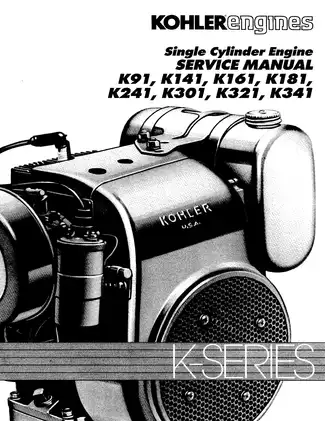

Kohler K91, K141, K161, K181, K241, K301, K321, K341 Single Cylinder Engine Service Manual Collection – 17 Publications (P/N TP2379)
2,127 Pages • Printable PDF • 123.63 MB • Download
Kohler Models Covered & Key Technical Specifications
Models: K-Series, K91, K141, K161, K181, K241, K301, K321, K341, K241A, K301A, K321A, K341A, KT17, KT19, K582, K361, K482, K532, K662, KT21, M8, M10, M12, M14, M16, M18, M20, MV16, MV18, MV20, CH5, CH6, CH11, CH12.5, CH14, CH18, CH20, CH22, CH25, CH26 (EFI system only), CS4, CS6, CS8.5, CS10, CS12, CV11, CV12.5, CV13, CV14, CV15, CV16, CV17, CV18, CV20, CV22, CV25, CV460, CV465, CV490, CV495, LV560, LV625, LV675, LH630, LH685, LH750, LH760, SV470, SV480, SV530, SV540, SV590, SV600, TH16, TH18
Models & Model Codes: Specification-number engine-model codes.
K91 — 26, 27, 31; optional R gear-reduction version: 6:1
K141 — 29
K161 — 28
K181 — 30; optional R gear-reduction version: 6:1
K241 — 46
K301 — 47; optional R gear-reduction version: 4:1
K321 — 60
K341 — 71
K241A — 46; A = special oil pan
K301A — 47; A = special oil pan
K321A — 60; A = special oil pan
K341A — 71; A = special oil pan
KT17 — 24; Series II: specifications 24300 and higher; earlier pressurized-spray versions: 24299 and lower
KT19 — 49; Series II: specifications 49200 and higher; earlier pressurized-spray versions: 49199 and lower
KT21 — 32; pressurized-spray lubrication, all specifications
K361 — 231
LV560 — 81
LV625 — 83
LV675 — 85
CH5 — 15
CH6 — 15
CH12.5 — 12
CH18 — 62
CH20 — 64
CH22 — 66
CH25 — 68
CS4 — 90
CS6 — 91
CS8.5 — 92 (specification series 92xxxx), 95 (specification series 95xxxx)
CS10 — 93
CS12 — 94
CV11 — 11
CV12.5 — 12
CV13 — 22
CV14 — 14
CV15 — 41
CV16 — 43
CV17 — 72
CV18 — 61
CV20 — 65
CV22 — 67 (624 cc), 75 (674 cc)
CV25 — 69
CV460 — 265
CV465 — 265
CV490 — 275
CV495 — 275
M8 — 3015
M10 — 4615
M12 — 4715
M14 — 6015
M16 — 7115
M18 — 245
M20 — 495
MV16 — 56
MV18 — 58
MV20 — 57
TH16 — 52
TH18 — 54
Sub-models / Variants: New Look (K181), Adjustable Jet, Fixed Jet, 1.25 Amp, 3 Amp, 10 Amp, 15 Amp, 25 Amp, 30 Amp; K341AS (specification 71276A); CS-series R gear-reduction versions (2:1 or 6:1).
Serial breaks — K-Series: ACR mechanisms prior to serial no. 9006118 are adjustable; serial no. 9006118 and after use factory-set hardened tabs. K161/K181 flywheel-retaining-nut specifications distinguish engines prior to serial #2309832.
Serial breaks — KT17: Crankcase versions: serial no. 9755084 and earlier / 9755085 and later. KT17 Series II engines built after serial no. 15089862 use Style D pistons, rings and connecting rods.
Serial break — CH25: Crankshaft end-play specifications distinguish engines below serial no. 2403500008.
Serial break — M8: Style A pistons prior to serial no. 1601300012; Style D pistons from serial no. 1601300012 on up.
Serial range — M20: Governor-linkage dampening-spring versions built between serial no. 1619504216 and 1631600816 inclusive.
Serial break — M18/M20: Closure-plate alignment pins on serial no. 1830500016 and higher.
Serial break — K482/K532/K582: Governor lubrication through an external oil line on models prior to serial no. 9224060.
-
Engine configuration: Single- and twin-cylinder; air-cooled and liquid-cooled, depending on engine family.
-
Displacement: 561 cc to 674 cc (Aegis LV560/LV625/LV675).
-
Power Output: 12.7 kW (17 HP) to 17.1 kW (23 HP) at 3600 RPM (Aegis LV560/LV625/LV675).
-
Spark Plug Gap: .025 in. to .035 in. (K-Series gasoline applications, depending on model/ignition); .018 in. (K-Series gaseous-fuel applications); .040 in. (CH5/CH6 and CH11/CH12.5/CH14).
-
Cylinder Head Bolt Torque: 200 in. lbs. (K91); 15–20 ft. lbs. (K141/K161/K181); 25–30 ft. lbs. (K241/K301/K321/K341), with engine-oiled threads and the model-specific tightening sequence.
-
Oil Capacity: 0.5 qt (K91) to 4.0 qt (K662 with oil-filter change); model/pan/filter dependent.
-
Idle Speed (Standard): 1200 RPM ±75 RPM for K-Series basic engines; application-specific settings may differ.

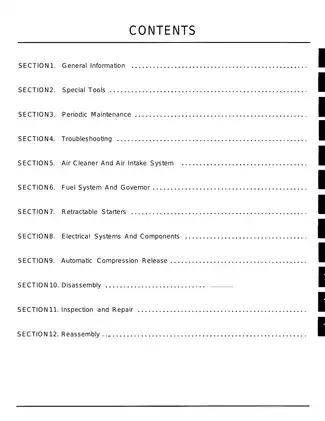

Kohler Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| K-Series K91, K141, K161, K181, K241, K301, K321, K341 — P/N TP-2379 | 142 |
| Aegis LV560, LV625, LV675 — P/N TP-2509 | 137 |
| Aegis LH630, LH685, LH750, LH760, including LH760 EFI — P/N TP-2527 | 172 |
| Command CH5, CH6 — P/N TP-2337-A | 109 |
| Command CH18, CH20, CH22, CH25, with LPG coverage and a CH26 EFI section — P/N TP-2428-A | 184 |
| Command CH11, CH12.5, CH14 — P/N TP-2402 | 110 |
| Command Pro CS4, CS6, CS8.5, CS10, CS12 — P/N TP-2503-A | 155 |
| KT17/KT19 Series II and KT17, KT19, KT21 — P/N TP-2043-A | 74 |
| Command CV17, CV18, CV20, CV22, CV25 — P/N TP-2450-A | 120 |
| Command CV11, CV12.5, CV13, CV14, CV15, CV16, CV460/465, CV490/495 — P/N TP-2339-D | 147 |
| Courage SV470, SV480, SV530, SV540, SV590, SV600 — P/N TP-2548 | 112 |
| Magnum M8, M10, M12, M14, M16 — P/N TP-2203-A | 152 |
| Magnum M18, M20 — P/N TP-2204-B | 139 |
| Magnum MV16, MV18, MV20 — P/N TP-2289-A | 105 |
| OHC TH16, TH18 — P/N TP-2480 | 116 |
| K482, K532, K582, K662 — P/N ENS-607 | 91 |
| K361, including Service Bulletins 142, 144 and 154 — P/N TP-1288 | 57 |
The publications provide separate service references for their respective engine families. Their specification- and serial-specific information helps match inspection methods, replacement parts and repair procedures to the engine build.
Coverage limits: The CH26 material is an EFI-system section, not a complete CH26 overhaul manual. Equipment-specific chassis, hydrostatic transmission, complete PTO and installation wiring information requires the equipment manufacturer's documentation; engine parts books remain necessary for exact repair-kit and replacement-part selection.
PDF Search, Bookmarks and Diagram Detail
Search and drawing detail: Text search works in parts of the PDF; substantial sections have no searchable text. Embedded bookmarks reach the publications and selected chapters. Small diagram labels require zooming, and some Aegis charging-system drawings have fragmented lines and details that remain incomplete when enlarged.

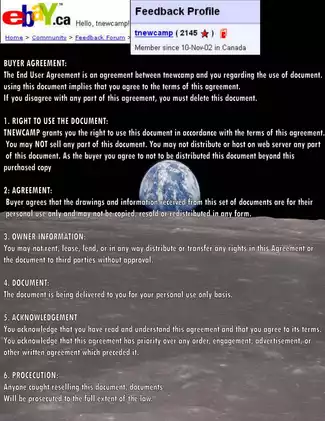

The collection is supplied as one printable, 2,127-page PDF, including 2,122 publication pages, three agreement pages and two blank separators. Publication counts include their covers, internal blank pages and included service bulletins.
Engine Overhaul, Fuel Systems and Electrical Testing
These selected topics show the range of work covered. Further subjects include storage preparation and air-cleaner service; this overview is not a complete contents list.
-
Internal engine repair: Step-by-step disassembly and reassembly, cylinder and piston inspection, crankshaft and camshaft work, bearing service, seals and timing alignment.
-
Valve and balance systems: Valve-guide and seat inspection, applicable reconditioning or replacement procedures, ACR service, balance gears and component wear limits.
-
Carburetors and governors: Kohler and Walbro carburetor overhaul, mechanical fuel-pump diagnosis, throttle/choke service, governor adjustment, high-altitude jetting and gasoline/LPG systems.
-
EFI diagnosis: CH26 and Aegis LH760 sensor tests, fuel-system fault isolation, throttle-position-sensor initialization and fault-code interpretation.
-
Aegis cooling: Water-pump and thermostat service, radiator and fan-drive work, coolant-leak diagnosis, reservoirs, hoses and associated lubrication-system procedures.
-
Ignition and starting: Magneto, battery, breakerless/CD and Smart Spark/SAM diagnosis, charging-system tests, motor-generator and Bendix-starter service, Oil Sentry and interlock circuits.
-
Workshop references: Model-specific torque tables, clearances, wear limits, electrical test charts, wiring diagrams, special-tool references and post-repair operational checks.
These manuals suit technicians familiar with engine measurement and workshop test equipment; the KT publication explicitly addresses technicians performing engine service and repair.
Build Differences That Affect Parts and Procedures
Lubrication and piston designs: The KT publication separates full-pressure Series II engines from earlier pressurized-spray builds; KT21 uses the latter system. The CS8.5 sections distinguish the 92xxxx and 95xxxx specification series, with separate procedures for their design differences.
K-Series starting systems: K181 New Look information appears alongside the other single-cylinder coverage. The ACR chapter distinguishes the earlier adjustable mechanism from later factory-set hardened tabs, which can break if bent.
Internal Inspection and Reconditioning
Mechanical chapters connect cylinder-head flatness, cylinder resizing and honing, piston-to-bore measurements, ring and connecting-rod inspection with the relevant assembly specifications. Camshaft, crankshaft, oil-pump, governor and balance-gear procedures include inspection criteria and illustrated assembly details.
Valve work varies by family. The K-Series material includes replaceable guide and seat applications; CH5/CH6 guides and seats are reconditioned rather than removed for replacement. The vertical Aegis manual likewise treats its valve-seat inserts as nonreplaceable and identifies damage requiring cylinder-head replacement.
The older K482/K532/K582/K662 publication also treats special fuel systems, wet and dry clutches, gear-reduction units, alternator accessories and fastener torque sequences. The K361 bulletins add revisions affecting its valve train and rocker-arm housing gasket.
Fuel Delivery, LPG and EFI Fault Isolation
Carburetor detail extends to throttle- and choke-shaft bushing repair and exploded assembly views. LPG material includes regulator testing and a Two Stage Regulator section view. EFI chapters follow the ECU, sensors, injectors, fuel pump and pressure regulator through component tests and diagnostic charts, including a Diagnostic Code Summary.
The K-Series fuel-system cautions identify pump-and-engine damage from a fuel-pump lever positioned below the camshaft, and carburetor damage from forcing tapered adjusting needles. The pump coverage also distinguishes the gasket needed when replacing an early metal-bodied pump with a later plastic-bodied unit.
Electrical Drawings and Workshop Test Equipment
Magneto Cycle Showing Flux Reversal explains ignition operation; Wiring Diagram — Battery Ignition System and Schematic of Typical Breakerless Ignition System support the related testing sections. Regulated charging-system diagrams accompany fault-finding charts, while exploded views support retractable- and Bendix-starter repairs.
Tool references include Service Tool Kit 3211-A, Flywheel Puller Kit 3226, valve-seat and guide tooling, seal and bearing installers, and engine-analysis instruments. Later Command references identify KO3219 leakdown, KO3220 oil-pressure, KO3221 rectifier-regulator and KO3222 Smart Spark/SAM testers.
Before repair, follow the manual-specific isolation and PPE precautions for gasoline and LPG, batteries, hot or rotating components, pressurized liquid-cooling systems, and recoil starter springs under tension.
Examples of Aegis Ignition and Valve Inspection Data
For LV560/LV625/LV675 engines, the ignition specifications give an ignition-module air gap of 0.2–0.3 mm (0.008–0.012 in.). The valve data distinguish intake stem-to-guide running clearance of 0.038–0.076 mm from exhaust clearance of 0.050–0.088 mm; separate component dimensions and wear limits support the inspection process.
