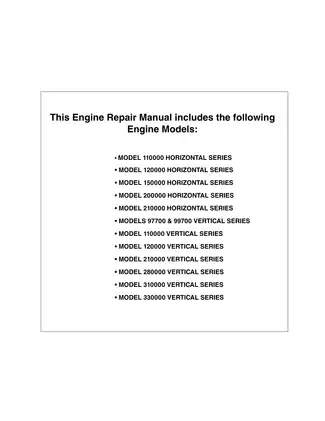

Briggs & Stratton 97700, 99700, 110000, 120000, 150000, 200000, 210000, 280000, 310000, 330000 Single-Cylinder OHV Engine Repair Manual (P/N 276781-8/09)

Briggs & Stratton’s Single Cylinder OHV Air-Cooled Engines repair manual, P/N 276781-8/09, August 2009 edition, covers the horizontal- and vertical-shaft engine configurations identified above. The numerical identification chart explains model, type, and manufacturing codes alongside the maintenance, troubleshooting, and internal repair sections.

• Engine overhaul: Cylinder-head removal, valve inspection and lapping, bore reconditioning and resizing, bearing replacement, and piston, ring, and connecting-rod service.

• Fuel systems: LMS, LMT, and Nikki carburetor disassembly and assembly, ReadyStart service, fuel-shutoff-solenoid testing, and fuel-pump inspection.

• Electrical diagnosis: Ignition checks, alternator identification and output testing, regulator-rectifier diagnosis, battery testing, and illustrated wiring connections.

• Starter service: Rewind-starter repair, starter-clutch service, electric-starter testing, drive replacement, and flywheel ring-gear replacement where serviceable.

• Lubrication systems: Breather inspection, gerotor-pump service, pressure-filtration and pressure-lubrication configurations, oil-pressure-switch testing, and Oil Gard troubleshooting.

• Governor and drive systems: Governor linkage and spring orientation, speed adjustments, gear-reduction service, auxiliary PTO repair, and counterbalance-system overhaul.

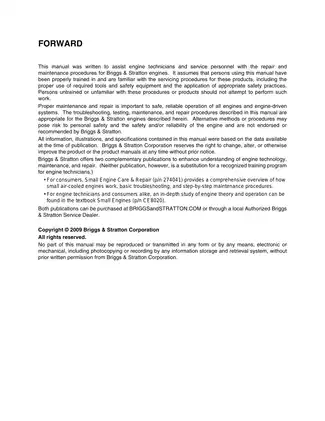

This manual was written for trained engine technicians and service personnel already familiar with Briggs & Stratton servicing procedures, required tools, and safety equipment.

Internal Engine Repair and Balance Systems

Cylinder service distinguishes bore reconditioning from resizing and provides inspection limits for the cylinder, crankshaft, camshaft, pistons, rings, and connecting rods. Model-specific tables include cylinder-head, rocker-arm, and muffler fastener torques, plus standard and reject dimensions.

Bearing service: The procedures cover pressed-in DU bearings and replaceable ball bearings, with model-specific driver and support-tool charts. Worn machined main bearings require replacement of the affected cylinder, cover, or sump.

Synchro-Balance and AVS counterbalance systems have separate disassembly, inspection, and assembly procedures. Exploded counterweight views and crankshaft/camshaft timing illustrations show how the assemblies differ.

The cylinder-head instructions warn that tightening each fastener to final torque in one pass can warp the head. Before disassembly, follow the manual’s precautions for accidental starting, hot exhaust parts, fuel, and rotating components.

Carburetors, ReadyStart, and Gaseous Fuel

LMS and LMT sections address float valves, Welch plugs, throttle and choke components, and carburetor reassembly. The LMT procedures distinguish metal and plastic choke shafts; the Nikki section includes fuel-transfer-tube positioning and float-bowl assembly details.

ReadyStart: The vertical 120000 service section covers the thermostatically controlled choke arrangement and serviceable bowl components. Its installed linkages are not individually serviceable and require a complete carburetor assembly when replacement is needed.

The Nikki LP/NG mixer applies to certain vertical 310000 engines and is replaced as a complete assembly. Fuel-pump coverage includes hose and vacuum-line inspection, removal, and installation; the pump itself is not rebuildable.

Ignition, Charging, and Starter Diagnosis

The systems-check section separates ignition, carburetion, and compression faults. It specifies Ignition Tester #19368 and explains leakdown-result interpretation using Tester #19545, including leakage associated with valves, rings, and the head gasket.

The Alternator System Diagnosis chart links charging and accessory symptoms to possible causes. The Alternator Identification table uses stator-wire and connector colors to identify the charging system before selecting its test procedure.

Tri-Circuit alternator illustrations, regulator-rectifier test connections, and System 3/System 4 starter-test diagrams support electrical troubleshooting. Battery installation, charging, and cranking-voltage checks are also covered.

Starter repair: Rewind procedures cover the rope, pawls, and pulley/spring assembly. A separate section services the sealed rewind-starter clutch used on some vertical 280000 engines. Removal notes address steel rivet shavings collecting on flywheel magnets.

Electric-starter coverage includes drive and clutch service, interlock checks, and solenoid testing. The 120-volt AC motor/switch assembly is not serviceable and requires complete replacement.

Lubrication, Governors, and Cooling Maintenance

The lubrication chapter distinguishes oil-slinger pressure filtration from systems that deliver pressurized oil to bearing surfaces. Oil Gard wiring illustrations and separate Start Sense and Run Sense troubleshooting sections help match a low-oil shutdown complaint to the installed system.

Governor procedures cover static adjustment, idle settings, and linkage orientation. Application-specific top governed speeds depend on the equipment manufacturer’s settings and the referenced engine replacement data.

Gear-reduction service includes internal inspection and lubricant guidance. Auxiliary PTO procedures distinguish clockwise and counterclockwise assemblies on applicable vertical engines.

Maintenance charts cover air filters, cooling screens, cylinder fins, and spark arresters. Muffler removal and installation procedures apply to Briggs & Stratton-supplied exhaust systems; equipment-manufacturer exhaust systems require their own service information.

Selected Oil-Switch and Cylinder Inspection Specifications

For the 28N777 Type 1194-E1 engine, the oil-pressure-switch section specifies an approximate opening pressure of 9–13 psi (0.62–0.90 bar).

The cylinder inspection section identifies head-mounting-surface distortion greater than 0.004 in. (0.1 mm) as a cylinder-replacement limit.

Searchable Text, Diagram Detail, and PDF Contents

Search and diagram access: Body text and specification tables support PDF text search; some labels within illustrations are not searchable. Two embedded bookmarks lead to the cover and foreword, without individual chapter bookmarks. The smallest electrical-diagram labels require zooming.

Supplied as one printable English PDF with 179 pages, including one combined front/back cover page, three preliminary pages, and five blank or divider pages.
