1980 Briggs & Stratton One-Cylinder Engine OEM Service Manual (GSS-1441-2)

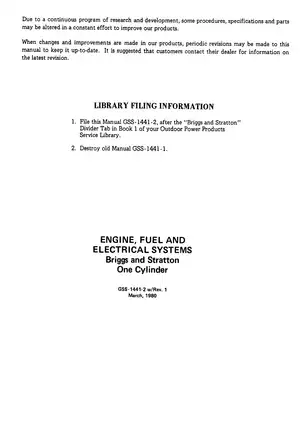

International Harvester publication GSS-1441-2 with Revision 1 (March 1980) covers engine, fuel and electrical service for Briggs & Stratton single-cylinder engines used in IH outdoor power equipment. Horizontal- and vertical-crankshaft coverage follows the engine model/type combinations in the application chart.

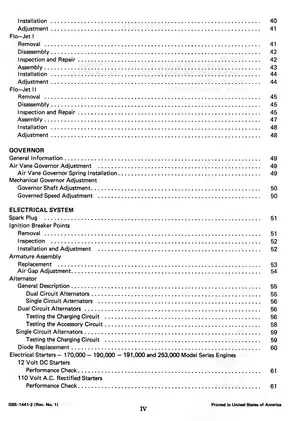

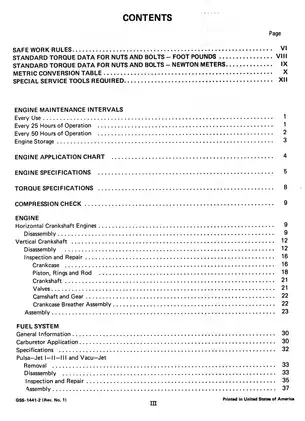

Text search and diagram detail: Text search is partial; the contents and some ignition and rectifier pages have no searchable text. There are no embedded PDF bookmarks. Small electrical labels require zooming, and the AC rectifier test illustration remains somewhat soft when enlarged.

• Engine repair: Horizontal- and vertical-crankshaft disassembly and assembly, compression checks, cylinder resizing, valve and seat resurfacing, and synchro-balanced counterweight service.

• Carburetors: Pulsa-Jet I, II and III, Vacu-Jet, and Flo-Jet I and II removal, inspection, reassembly, installation and adjustment procedures.

• Governor controls: Mechanical governor shaft and governed-speed adjustment, plus air vane governor spring installation and linkage inspection.

• Ignition and charging: Breaker-point service, armature air-gap adjustment, dual- and single-circuit alternator tests, rectifier checks and diode service.

• Starting systems: Electric-starter drive and clutch tests, motor overhaul, nickel cadmium battery and charger checks, and recoil and vertical pull starter repair.

• Factory reference data: Engine and carburetor application charts, standard and component torque tables, reject dimensions, maintenance intervals, metric conversion tables and special service tools.

This manual is suited to mechanics familiar with small-engine overhaul and electrical testing; starter-armature diagnosis calls for a growler and other shop test equipment.

Engine Repair and Inspection Limits

Internal inspection covers pistons, rings and connecting rods, crankshaft bearings and journals, camshaft wear, and crankcase breather assemblies. Specification tables include cylinder bore limits, piston ring gaps, valve seat angles and valve clearances.

The Cross Sectional View of Rings and Crankshaft Reject Size chart support component identification and wear assessment. The breather section also identifies a specific damage risk: pressure on the fiber-disc valve can distort its internal support bracket.

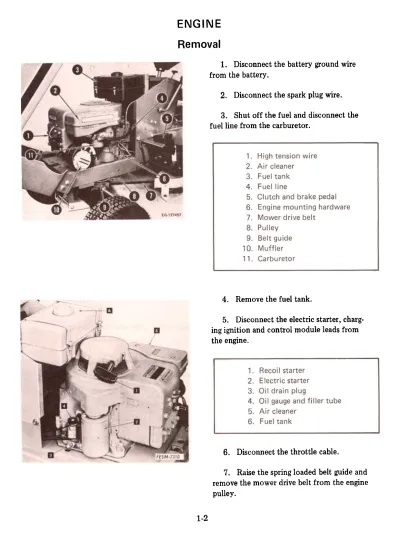

Engine removal from the chassis and engine-mounting torque information require the applicable chassis manual. This publication concentrates on engine, fuel and electrical repair.

Carburetor Variants and Governor Settings

For fuel delivery, the manual provides separate repair procedures for the carburetor families identified in its Carburetor Application chart. Pulsa-Jet and Vacu-Jet coverage addresses diaphragms and fuel pipes; Flo-Jet I and II sections cover float, nozzle and body inspection.

Factory speed tables separate the 76, 80 and 81 tractor chassis serial groups. Air vane governors have no adjustment beyond spring replacement; governor-shaft and governed-speed adjustments apply to the mechanical systems.

Electrical Diagnostics and Serial Breaks

Charging diagnosis separates battery-charging and accessory-circuit faults, with electrical schematics and illustrated test connections for rectifiers, diodes and stator coils. Illustrations include Checking charging coil continuity and Checking for grounded charging coils.

For Model 80 from S/N 41615 and Model 81 from S/N 41201, plus all 111, 182, 282 and 382 tractors, the stator and diode cable are serviced as an assembly. That distinction helps identify the replacement scope before ordering charging-system parts.

Electric, Recoil and Vertical Pull Starters

Separate procedures cover 12V DC and 110V AC rectified starters on the 170,000, 190,000, 191,000 and 253,000 engine series. The 92,000 series has its own motor and clutch section, exploded assembly view FESM-9188, and nickel cadmium battery and charger tests.

Motor inspection addresses winding shorts, open circuits, grounds, brushes and commutators. The manual warns that clamping or striking permanent-magnet starter housings can crack their ceramic magnets.

Recoil starter sections cover rewind mechanisms and clutches. Vertical pull starter service also includes the recoil traction lockout used on self-propelled lawn mowers.

Shop Tools and Service Precautions

Tool references include spark tester 19051, breaker plunger bore gauge 19055, and valve guide reject gauges 19122 and 19151.

Follow the manual's precautions for fuel handling, accidental starting and electrical shock, particularly during AC starter and rectifier testing.

English PDF and Included Pages

Supplied as one printable English-language file, the 99-page PDF contains the 98-page International Harvester manual, including its covers and front matter, plus one added dealer contact page. The added page is already included in the total.
