Briggs & Stratton Vanguard V-Twin OHV Engine Repair Manual (P/N 272144)

Briggs & Stratton factory repair manual P/N 272144 covers air-cooled Vanguard OHV V-Twin 290000, 300000, 350000, 380000, 540000, and 610000 engine families, including horizontal- and vertical-crankshaft configurations. The engine-identification page carries a 4/04 revision mark.

PDF Search, Contents Links, and Diagram Detail

Text search and wiring detail: Service chapters contain searchable text, although parts of the engine-identification chart have unreliable character encoding. One embedded bookmark returns to the linked contents page. Small wiring labels on the reviewed diagrams are readable when enlarged.

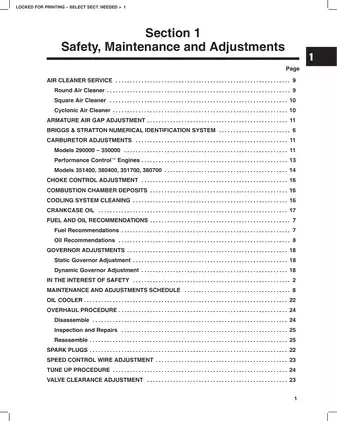

One printable English PDF contains 191 pages, including the opening contents page and four otherwise blank divider pages. These pages are already included in the total.

V-Twin Overhaul, Fuel Systems, and Fault Diagnosis

The following selected coverage highlights the main workshop sections; additional topics include air-cleaner service and cooling-system cleaning.

• Internal overhaul: Step-by-step disassembly and reassembly, cylinder-head and valve repair, cylinder measurement and resizing, crankshaft/camshaft inspection, and piston, ring, and connecting-rod service.

• Fuel and carburetion: Fuel-tank removal and installation, pump and gravity-feed systems, fuel shut-off components, and Aisan, Mikuni, and Nikki carburetor overhaul.

• Governor systems: Mechanical-governor service, remote/manual-friction and fixed-speed controls, static and dynamic adjustments, and Performance Control electronic-governor diagnosis.

• Ignition and electrical diagnosis: Systematic ignition, compression, leakdown, and cylinder-balance checks; alternator, regulator-rectifier, battery, charge-indicator, engine-harness, and diode testing.

• Starting and lubrication: Starter-motor, solenoid, starter-drive, and rewind-starter repair, plus pressure-lubrication, oil-pump, breather, and oil-pressure testing.

• Factory reference data: Model-specific torque tables, standard and reject dimensions, wear limits, electrical and pressure-test specifications, special-tool numbers, wiring diagrams, and troubleshooting charts.

This manual suits professional technicians, independent repair shops, and experienced DIY engine repairers equipped for precision measurement and electrical testing.

Internal Repair and Assembly Differences

It extends well beyond tune-up data and supports full internal repair once the engine has been removed from the powered equipment. Separate horizontal- and vertical-crankshaft procedures identify the air cleaner, blower, fan, carburetor, intake manifold, armatures, flywheel, starter, breather, and internal assemblies.

The repair sections detail valve-guide replacement, valve and seat refacing, honing and cleaning, magneto and PTO bearing service, and oil-seal replacement. Camshaft bearing bores are inspected; worn bores require replacement of the cylinder or crankcase cover rather than a separate bearing replacement.

Assembly coverage includes timing-mark alignment, cylinder-specific piston and rod orientation, crankshaft end-play checks, oil-pump and sump installation, cylinder-head and rocker-arm assembly, pushrod placement, and final governor adjustment.

Build differences: Three rocker-arm/head designs are distinguished by date code. The redesigned head, gasket, and rocker assembly has specific interchange limits. Later 350000/380000 balanced fans and crankshafts must not be mixed with earlier components.

Starter coverage distinguishes nylon-pinion, steel-pinion, and solenoid-shift designs. Steel flywheel ring gears are not replaceable, and early/current rewind-starter components are not interchangeable.

Mechanical and Electrical Fault Isolation

Cylinder-balance and leakdown testing help distinguish a weak cylinder from shared fuel, crankcase-vacuum, or ignition-timing faults. Compression assessment compares cylinders rather than supplying a universal compression-pressure specification.

AC-only, DC-only, dual-circuit, tri-circuit, and regulated alternators are identified by stator leads, connectors, and flywheel magnets. Separate tests address output, diodes, regulator-rectifiers, charge indicators, and oil-pressure switches.

Application-specific systems: PowerLink coverage addresses GFCI operation, parking-brake and PTO interlocks, ground continuity, reset-switch checks, and alternator-versus-inverter fault isolation using Test Box #19528. Performance Control includes dynamic/static checks, module-versus-actuator diagnosis, and actuator replacement; it cannot be retrofitted to mechanical-governor engines.

Carburetor Selection and Gaseous-Fuel Coverage

Aisan procedures apply to 290700/303700/350700 engines after 950930xx, with Mikuni coverage before 951001xx. For 290400/303400/350400 engines, Mikuni procedures apply before 950801xx and Nikki procedures after 950731xx.

Separate sections cover Nikki carburetors on 351400/351700/380400/380700 and 540000 engines, plus the Aisan carburetor on 610000 engines. Fuel-pump and gravity-feed carburetor bodies, inlet needles, and settings are distinguished because these parts are not automatically interchangeable.

Factory-built LPG/NG versions receive regulator and lockoff troubleshooting, fuel-transfer-solenoid checks, and CO-meter mixture-adjustment requirements. Gaseous-fuel repairs require a certified LPG/NG technician.

Workshop References and Repair Limits

Visual references include the parts-identification exploded views, Charging System Identification table, Engine Wiring Harness Diagram with Diode Failure Diagnosis, starter-panel/key-switch schematic, Performance Control wiring diagram, and illustrated PowerLink test setups.

Tools identified include Ignition Tester #19368, Digital Multimeter #19464, DC Shunt #19359, Tang Bender #19352, Governor Adjustment Gauge #19385, standard Flywheel Puller #19203, and PowerLink Flywheel Puller #19534. Dimensioned honing-fixture and starter-test-bracket drawings supplement the fuel-system, main-jet, gaseous-fuel-pressure, crankshaft-grinding, drill-size, and conversion tables.

Repair traps: PowerLink flywheel magnets are powerful and easily damaged by improper handling. Excessive fuel-pump pressure can dilute crankcase oil and score cylinders; incorrect governor adjustment can cause damaging overspeed.

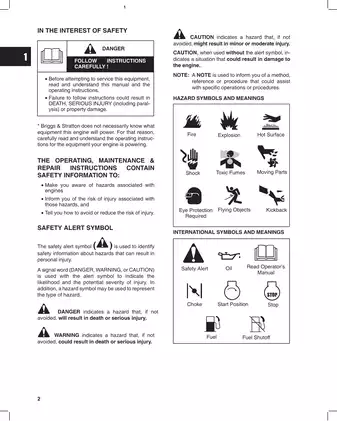

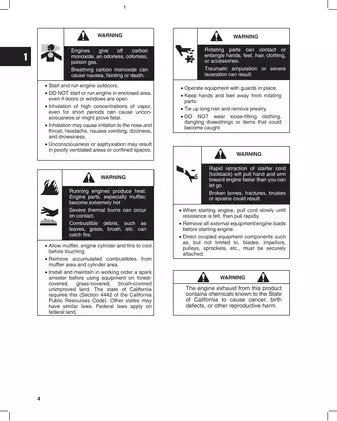

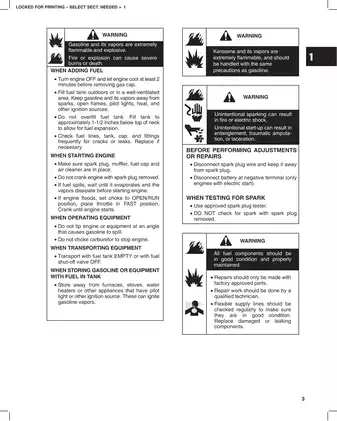

Coverage is engine-centered. Equipment-specific interlocks and wiring may require the powered-equipment manual; model/type top no-load speeds may require references MS-4052/MS-6225. Follow the manual’s fuel-vapor, rotating-flywheel, hot-surface, and battery-isolation precautions.

Nikki Float-Height Specification Examples

For Nikki carburetors on 290400, 303400, and 350400 engines after 950731xx, the float-height specification differs by fuel delivery system. In the prescribed past-vertical measuring position, fuel-pump versions place the float 1/16" (1.6 mm) below the machined carburetor surface.

Gravity-feed versions specify 3/32" (2.4 mm) above that surface. These measurements accompany the carburetor-body and inlet-needle distinctions in the overhaul section.
