Cub Cadet (MTD) Series 2000 Tractor Manual Set, 1994–1999 (P/N 772-4232)

The service manual handles workshop diagnosis and repair; the operator’s manual adds operating controls, routine care, storage, troubleshooting and a maintenance-parts chart for the 2185.

Internal engine repair requires separate engine manuals. Appendix A lists Kohler KH-TP-2402 and KH-TP-2428, Onan 965-0758, and Briggs & Stratton BS-272144-9. These engine manuals are not included.

PDF Files, Navigation and Wiring Detail

Text search and circuit labels: PDF text search and embedded bookmarks are unavailable. The electrical schematics are oriented sideways; rotating the view and zooming makes the small terminal numbers, component identifiers and wire-color labels easier to read.

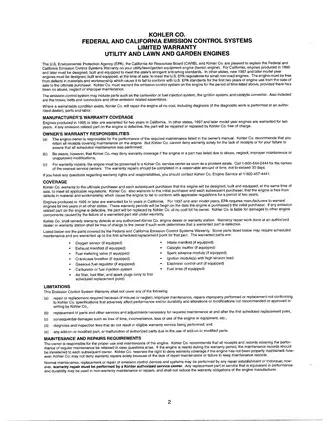

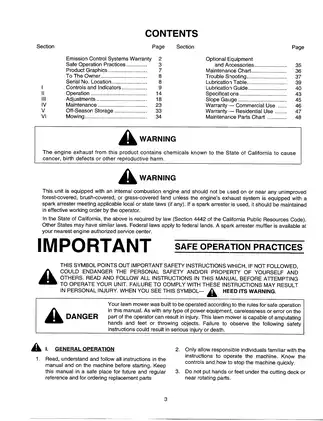

The English ZIP download contains 17 printable PDFs totaling 581 pages, including 244 repeated chapter pages; the two publications provide 337 pages without those duplicates. The service manual comprises a 256-page main file and 33 appendix pages; Sections 1–7 are also supplied separately. These totals already include its 12-page front matter and three blank pages, plus the operator’s cover, blank page and three warranty pages.

AGS/HDS Drivetrain, Electrical and Attachment Coverage

The following selected topics show the repair coverage rather than a complete contents list. Additional material includes dealer preparation and battery activation.

• AGS drive-system repair: Clutch-pack overhaul, interlock linkage, shift keys, differential service, transaxle inspection, reassembly and final neutral adjustment.

• HDS hydrostatic overhaul: Pump and motor piston blocks, center section, swashplate, charge pump, check valves, seals, neutral linkage, hydraulic lines, priming and air purging.

• Chassis, PTO and controls: PTO clutch service, steering and front-axle repair, brake and pedal linkage, implement lift components, driveline work and model-specific adjustments.

• Mower decks: Removal, disassembly, spindle overhaul and installation for the standard decks and Models 190-300 and 190-301, with belt and cutting-performance diagnosis.

• Attachments: Mulching-kit installation, spring-trip blade setup, snowthrower belt replacement and adjustment, and rear-tiller installation, electric lift connections and maintenance.

• Electrical diagnosis: Component tests and eight factory schematics covering engine crank, run/charging, safety shutdown and PTO start/run circuits for the applicable tractor groups.

• Service references: Model-specific maintenance and lubrication tables, build-change information, torque data, clearances, inspection limits, fluid specifications and electrical test values.

The service manual specifies a normally equipped commercial power-equipment shop as the minimum facility; its internal drivetrain repair material suits experienced mechanics with the necessary equipment.

Clutch and Hydrostatic Repair Depth

Step-by-step procedures cover removal, internal disassembly, inspection, repair, reassembly and installation. The AGS material includes clutch-pack shimming and early-versus-late shift-shaft and neutral-spacer designs.

The HDS section distinguishes BDU-10L-219 from its production and service replacement, BDU-10L-221. The replacement omits the external return tube and bypass-valve assembly. Close-tolerance inspections cover piston blocks, swashplate, shafts, bearings, valves and sealing surfaces.

Serial-specific steering, clutch-linkage and transaxle references help identify the applicable components before parts or procedures are selected. Steering coverage distinguishes early and later segment gears, while separate notes address the 2135 steering modification and fender reinforcement plates.

The hydro overhaul warns that incorrect charge-pump housing orientation prevents priming and that forcing components together can damage seals or running surfaces. The AGS clutch procedure cautions against prying the housings apart because their machined sealing faces can be damaged.

Engine Installation and PTO Differences

The specification tables distinguish Kohler Command-equipped 2130/2135 tractors, Onan Elite 2140/2145 models, Briggs & Stratton Vanguard V-twin 2160/2165 tractors, and the Kohler Command V-twin 2185.

Tractor-side engine work covers removal and installation, mounting, controls, muffler work and electrical connections. For 2140/2145 PTO work, the illustrations distinguish Engine Factory Codes 11187 and 11317 and their mounting hardware.

Decks and Seasonal Attachments

The standard decks are assigned to their tractor models, while the larger decks serve the 2160/2165/2185 group. Blade-spindle coverage extends to bearing inspection, seal orientation and reassembly. The 48-inch deck requires the additional left lift-assist rod and spring assembly.

Attachment sections distinguish mulching kits 190-314/190-315, blade 190-302, snowthrower 190-303 and tiller 190-304. Snowthrower maintenance includes latch-cable adjustment, skid shoes, shave plate, shear bolts and drive belts; tiller material covers belt routing, lubrication and tine replacement.

Circuit Tests and Illustrated References

Illustrated references include Hydro Pump, Neutral Linkage, and Hydraulic Lines; Shift Shaft Assembly; Blade Spindle Assembly; Engine Crank; Normal/Safety Engine Shutdown; and PTO Start/Run.

Appendix C supplies starter-solenoid tests for the 2160/2165, PTO-switch and reverse-relay continuity tests, brake-pedal interlock checks, and battery inspection and hydrometer testing. Section 4 adds battery-capacity evaluation. These references support fault isolation before electrical components are replaced.

Appendix E identifies connector insulators by part number. Other appendices cover bulk service items, mower-belt failure patterns, deck operating principles, and general torque and conversion tables.

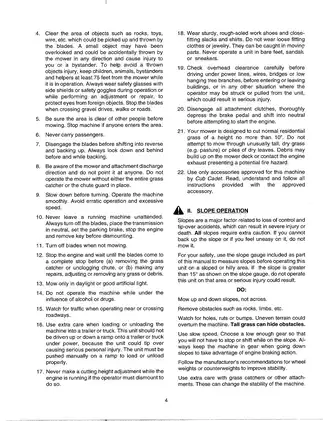

The safety material addresses battery and ignition isolation, hydraulic pressure, secure tractor support and rotating blades. Internal drivetrain, brake and steering work requires the equipment and experience appropriate to those systems.

Examples of PTO Electrical and Adjustment Data

PTO field-coil resistance specifications distinguish 6.5–7.5 ohms for Models 2130/2135/2140/2145 from 2.4–3.4 ohms for 2160/2165/2185, with the PTO connector disconnected for the resistance check.

The adjustable PTO clutch on 2160/2165/2185 has a specified air gap of 0.012–0.017 in. The clutch used on 2130/2135/2140/2145 has a factory-preset gap with no air-gap adjustment.
