Cub Cadet 2130, 2135, 2140, 2145, 2160, 2165, 2185 Tractor Service Manual (P/N 772-4232)

289 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(4)
$16.98 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Cub Cadet Models Covered & Key Technical Specifications

Models: 2130, 2135, 2140, 2145, 2160, 2165, 2185

Sub-models / Variants: 38" Mower Deck, 42" Mower Deck, 190-300, 190-301, 190-314, 190-315, 190-302, 190-303, 190-304

Trade Names: Series 2000

Serial Numbers: 239,301–272,500


  • Engine (2130/2135/2185): Kohler Command (12.5 HP to 18 HP)

  • Engine (2140/2145): Onan Elite (14 HP)

  • Engine (2160/2165): B&S Vanguard (16 HP)

  • System Voltage: 12 volt negative ground

  • Fuel Tank Capacity: 3 gallons

  • Crankcase Capacity: 3 to 4 pints depending on model

  • Transmission Case Capacity: 6 quarts

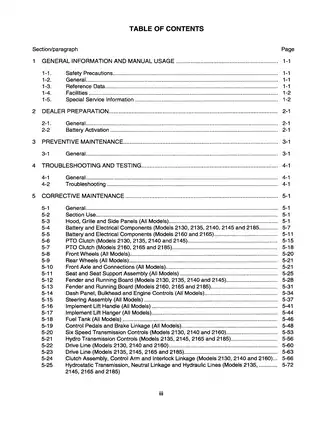

Cub Cadet Manual Features & Selected Content Preview

Cub Cadet factory service manual P/N 772-4232 covers Series 2000 tractor models 2130, 2135, 2140, 2145, 2160, 2165 and 2185, their specified mower decks, and selected attachments.

PDF Search, Diagram Detail and Page Count

Search and schematic viewing: PDF text search and embedded bookmarks are not available. The wiring schematics are oriented sideways; rotate the view and zoom in to read small terminal numbers, component identifiers and wire-color labels.

One printable English PDF contains 289 pages, including 12 preliminary pages and three blank pages. The tractor service sections, attachment instructions and Appendices A–H are all included in that total.


AGS, Hydrostatic and Mower-System Service

The following selected service topics outline the repair coverage. Other sections include pre-delivery checks and model-specific maintenance and lubrication schedules.

  • AGS six-speed repair: Clutch-pack inspection and shimming, shift-key installation, transaxle disassembly, differential repair, and neutral/interlock adjustment for 2130/2140/2160.

  • HDS hydrostatic repair: Hydro-unit overhaul, charge-pump and check-valve inspection, hydraulic-line service, transaxle repair, cruise linkage and neutral setup for 2135/2145/2165/2185.

  • Chassis service: Steering gear, front axle, brakes, control pedals, implement lift, fuel tank, seat/fender assemblies, dash, bulkhead and wire harnesses.

  • Electrical diagnosis: Starter-solenoid, PTO-switch, reverse-relay, brake-interlock and battery tests, supported by model-specific starting and charging schematics.

  • Mower-deck repair: Drive-component disassembly, pulley and belt inspection, spindle-bearing and seal replacement, belt alignment, and cutting-performance troubleshooting.

  • Attachments: Mulching-kit and spring-trip-blade installation, snow-thrower adjustment and belt replacement, plus rear-tiller mounting, electric-lift installation and maintenance.

Cub Cadet specifies a normally equipped commercial power-equipment service shop as the minimum facility. The manual is suited to technicians and experienced mechanics with access to pullers, seal drivers, feeler gauges, a hydrometer and electrical test equipment.

Drivetrain Diagnosis and Internal Repair

The system troubleshooting tables connect symptoms with likely causes, tests and the relevant repair sections. For a tractor that creeps or will not drive, they distinguish linkage and neutral-setting problems from faults requiring clutch or hydrostatic repair before major disassembly.

Step-by-step procedures address the AGS clutch assembly and the HDS hydro unit, either of which can be removed without taking out the complete transaxle. Internal coverage extends to clutch friction discs and angular-contact bearings, hydro piston blocks and cradle bearings, differential shimming, and the revised six-speed shift-shaft/neutral-spacer design.

Production details distinguish steering configurations, the redesigned AGS clutch rod and axle-housing fasteners. The BDU-10L-219 uses an external return tube and bypass valve; the replacement BDU-10L-221 has a different drain arrangement. Those differences matter when selecting parts and following the assembly instructions.

Engine Scope and Chassis Adjustments

The Kohler Command, Onan Elite and B&S Vanguard engine installations are covered for engine and muffler removal and installation. Internal engine repair requires separate engine documentation. Appendix A lists KH-TP-2402, 965-0758, BS-272144-9 and KH-TP-2428; these are references rather than additional manuals included in this PDF.

Adjustment sections cover PTO-clutch burnishing, front-wheel alignment, pivot-axle play, lift-assist spring tension, brake linkage, transmission controls, and throttle and choke cables. The Onan-powered 2140/2145 PTO mounting illustrations distinguish the engine factory codes shown in the specifications box.

Decks, Attachments and Their Requirements

The standard decks are assigned to 2130/2135 and 2140/2145. Deck Models 190-300 and 190-301 serve 2160/2165/2185; the latter requires the additional left lift-assist rod and spring. Spindle rebuilding includes bearing-cone inspection, seal replacement and lubrication details.

Mulching Kit 190-314 fits the 2130/2135 deck, while 190-315 fits the 2140/2145 deck. Spring-Trip Blade 190-302 and Snow Thrower 190-303 are described for all listed tractors. Rear Tiller 190-304 is assigned to 2160/2165/2185.

Attachment instructions specify Model 190-307 counterweights: rear ballast for the blade and snow thrower, and front ballast for the tiller. Model-specific deck removal and leveling adjustments refer to the tractor or deck Owner’s Manual; the tiller lift-switch installation also calls for a template from the Tiller Owner’s Manual.

Schematics and Workshop Reference

Representative illustrations include Clutch Assembly, Hydrostatic Transmission, Six Speed Transaxle, Engine Run and Charging Circuit, Normal/Safety Engine Shutdown, and PTO Start/Run.

Circuit descriptions explain the current paths alongside the schematics. Supporting appendices provide connector/insulator views with Cub Cadet part numbers, bulk service-item numbers, belt-failure analysis, mower-deck operating principles, a deck troubleshooting matrix, general torque tables and conversion charts.

Component-Specific Repair Cautions

Incorrect charge-pump housing orientation can prevent hydro priming, while twisting the housing during removal can damage the charge-relief spring. The mower-spindle instructions also identify the inverted lower-seal arrangement; incorrect installation can cause hydraulic lock when the spindle is over-lubricated.

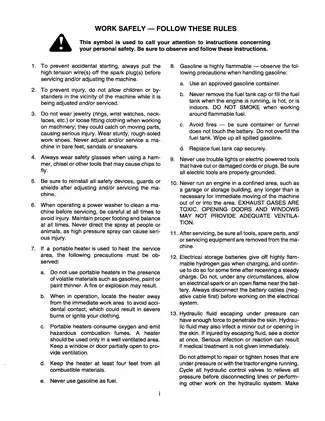

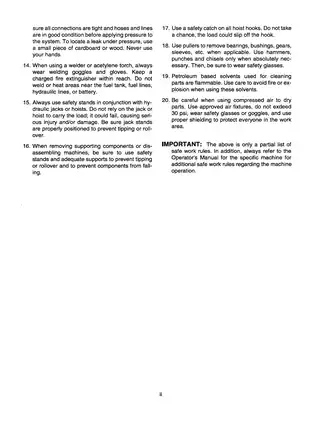

Before service, disable accidental starting, support the tractor or deck with stands where required, relieve hydraulic pressure before opening lines, and follow the manual’s fuel, battery and rotating-PTO precautions.

PTO Test and Adjustment Specification Preview

Field-coil tests: Resistance specifications are 6.5–7.5 ohms for 2130/2135/2140/2145 and 2.4–3.4 ohms for 2160/2165/2185, distinguishing the two clutch groups during electrical diagnosis.

Adjustable clutch clearance: The 2160/2165/2185 PTO air gap is 0.012–0.017 in., with equal readings at all three access slots. The 2130/2135/2140/2145 clutch gap is factory preset and has no adjustment specification.
