John Deere 2130 Tractor Technical Manual 1973–1979 (P/N TM-4272)

454 Pages • Printable PDF • 76.95 MB • Download

4.8starstarstarstarstar_half(4)
$29.30 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

John Deere Models Covered & Key Technical Specifications

Model: 2130

Sub-models / Variants: 2WD, 4WD (hydrostatic front-wheel drive / HFWD; related wiring and creeper-control procedures), Collar shift transmission, High-Low shift unit, creeper transmission, with independent hand brake, without independent hand brake, with operator's cab, without operator's cab

Model Years: 1973–1979 (1973, 1974, 1975, 1976, 1977, 1978, 1979)

Serial Numbers: up to 268 526 L / from 268 527 L (coolant temperature gauge transition); up to 294 961 L / from 294 962 L (fuel-tank and fuel shut-off arrangement transition); engine serial numbers up to 333 624 CD / from 333 625 CD (flywheel-to-crankshaft cap-screw torque change)

Engine Serial Breaks: 125 882 CD to 220 304 CD (injection-timing requirements when replacement camshaft DD 12096 is fitted without replacement cylinder head AR 70589); from 197 639 CD (piston-cooling jets); up to 269 540 CD, 269 541 CD to 284 163 CD, 284 164 CD to 341 067 CD, and from 341 068 CD (B/H piston-selection requirements); up to 272 418 CD / from 272 419 CD (flywheel-housing oil-seal installation); up to 129 451 CD / from 129 452 CD (Roto-Diesel fuel-filter screen arrangement); from 174 039 CD (dual-stage fuel-filter arrangement); up to 236 201 CD (fuel-transfer-pump bail); up to 189 967 CD / from 189 968 CD (injection-pump arrangement and bleeding)

Additional Tractor Serial Breaks: up to 224 436 L / from 224 437 L (clutch release bearing), and 224 437 L to 315 196 L (release-bearing sleeve attachment); up to 154 297 L / from 154 298 L (High-Low lubrication), and from 154 564 L (High-Low transmission-filter by-pass valve); from 237 106 L (differential thrust washers); up to 307 452 L / from 307 453 L (final-drive and brake-ring arrangement), and from 307 453 L (hand-brake toothed quadrant); up to 288 762 L (earlier PTO brake linkage); up to 110 141 L / from 110 142 L (power-steering shaft and valve-body arrangement); cab-equipped tractors up to 292 805 L / from 292 806 L (steering-column arrangement); up to 154 567 L / from 154 568 L (steering-shaft arm cap-screw torque change); up to 145 806 L / from 145 807 L (hydraulic trailer-brake arrangement), with trailer-brake valve O-ring from 103120 L; non-cab tractors up to 137 170 L / from 137 171 L (rockshaft control linkage); up to 165 275 L (rockshaft remote-cylinder adapter); up to 172 686 L / from 172 687 L (load-control shaft); up to 111 396 L / from 111 397 L (rockshaft check-valve spring); cab rear-window arrangements up to 212715 L / from 212716 L; cab sliding-window glass replacement from 242 845 L


  • Engine: 4-cylinder vertical, in-line, 4-cycle Diesel, 3920 cm³ (239 cu. in.)

  • Compression Ratio: 16.8:1

  • Rated Speed: 2500 rpm

  • Flywheel Horsepower: 55 kW (75 HP) at 2500 rpm

  • Fuel System: Roto-Diesel fuel injection pump, firing order 1-3-4-2

  • Cooling System Capacity: 11.4 liters (3.0 U.S. gals.)

  • Electrical System: 12-volt, negative ground, 14 volts, 28 amps alternator

John Deere Manual Features & Selected Content Preview

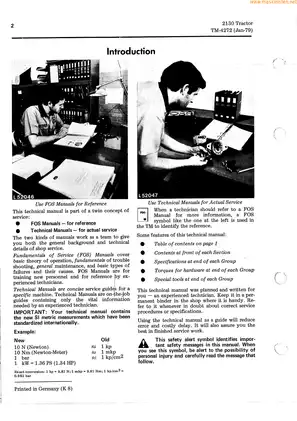

This technical manual for the 1973–1979 John Deere 2130 tractor is John Deere Werke Mannheim publication P/N TM-4272. It covers tractors with and without an operator's cab, combining January 1979 material with individually revised pages.

Printable PDF and Wiring Diagram Detail

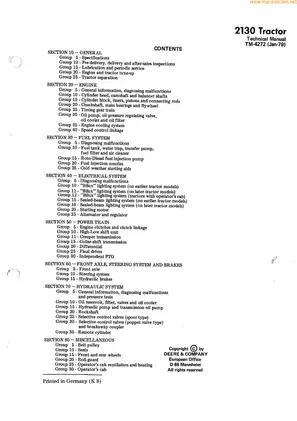

Search, navigation and small labels: Manual text search is unavailable, and there are no embedded PDF bookmarks. Navigation uses the contents pages and section/group numbers. Small wire numbers and terminal labels in the checked wiring diagrams are readable when enlarged.

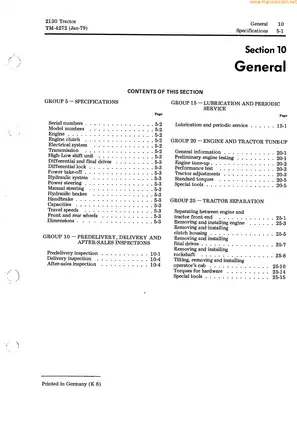

One printable English PDF contains 454 pages: 422 pages of manual content, two cover pages and 30 blank or separator pages, all included in the total.


Engine, Power Train and Hydraulic Repair

These selected repair topics show part of the manual's coverage. Further examples include starting-fluid and Thermostart aids, plus belt-pulley repair.

  • Engine repair: Cylinder-head and valve service, wet cylinder liners, pistons, connecting rods, crankshaft bearings, balancer shafts, lubrication and cooling-system repairs.

  • Fuel-system procedures: Roto-Diesel injection-pump removal, installation, timing and bleeding, plus injection-nozzle cleaning, opening-pressure checks, spray-pattern assessment and leakage testing.

  • Power train: Clutch adjustment, High-Low shift-unit diagnosis and overhaul, creeper transmission repair, collar-shift transmission inspection, differential adjustment and independent PTO service.

  • Hydraulic diagnosis: Pressure and flow tests, radial-piston and transmission oil-pump repair, rockshaft adjustment, selective control valves, breakaway couplers and remote cylinders.

  • Electrical systems: Bilux and sealed-beam wiring layouts, circuit and terminal identification, starter inspection, alternator component tests and voltage-regulator checks.

  • Chassis and cab: Front-axle repair, manual and power steering, foot and hand brakes, hydraulic trailer brakes, wheels, seats, roll guards and cab equipment.

John Deere wrote this manual for experienced technicians; its hydraulic testing procedures require suitable gauges and workshop test equipment.

Engine Repair and Roto-Diesel Fuel-System Coverage

Cylinder-liner sealing views, timing-gear drawings and the cylinder-head tightening sequence support internal engine work. Step-by-step procedures cover tractor separation, liner protrusion checks, piston selection, camshaft timing and balancer-shaft installation, with bearing inspection limits and assembly specifications.

The liner instructions identify a specific assembly risk: oil-soaked packings and O-rings can swell and suffer damage during installation. Water-pump coverage extends to dismantling and impeller positioning, with separate thermostat inspection instructions.

Injection-pump limits: External service and timing are covered, but internal pump repair and delivery/governor testing are assigned to a specialized workshop with the necessary test stand and specifications. Injection-nozzle reconditioning has its own procedures.

High-Low, Transmission and PTO Diagnosis

The High-Low exploded view supports clutch- and brake-pack work. Collar-shift transmission and differential sections cover shaft bearings, preload and backlash, including the relationship between the matched differential drive shaft and ring gear.

High-Low fault diagnosis uses rockshaft or remote-cylinder behavior to distinguish a charge-circuit problem from a fault within the High-Low circuit. Independent PTO documentation separates single-speed and dual-speed layouts and details their clutch, brake and control-valve assemblies.

Electrical Variants and Circuit Tracing

Separate Bilux and sealed-beam sections identify earlier, later and cab-equipped arrangements. Wiring diagrams and connection charts link wire numbers and colors to terminals and components, helping technicians choose the applicable circuit before tracing a fault.

Starter and alternator sections extend to component inspection and electrical tests. Hydrostatic front-wheel-drive references concern related cab wiring and creeper safety-switch linkage procedures.

Hydraulic Testing, Rockshaft and Remote Equipment

Complete hydraulic oil-flow diagrams trace connections among the transmission pump, main pump, steering priority, High-Low unit, independent PTO and rockshaft. Troubleshooting distinguishes slow response, overheating, leakage and lift-arm settling before component repair.

Rockshaft instructions address load, depth and combined control. Spool-type and poppet-type selective control valves have separate service and adjustment sections, followed by breakaway-coupler work and remote-cylinder rebuilding and bleeding.

Steering, Brakes and Cab Service

Steering inspection, assembly and adjustment cover manual and power systems. Brake procedures extend to valve repair, bleeding, pedal adjustment, pressure rings, brake disks, the independent hand brake and hydraulic trailer-brake variants.

Cab tilting and removal provide access for major work. Other sections treat wheel bearings, rack-and-pinion rear wheels, seats, roll guards, glazing, ventilation and heating.

Companion references: Routine lubrication and service intervals are referred to the operator's manual; general service theory is assigned to separate Fundamentals of Service manuals. These publications are not included.

Heavy agricultural machinery and pressurized fluids require appropriate shop precautions. Relieve hydraulic pressure and securely support heavy components before carrying out repairs or applying reference values.

Selected Cylinder-Head, Final-Drive and Hydraulic Values

The cylinder-head assembly data specify 130 Nm for oil-dipped cap screws, together with a tightening sequence and retightening after the prescribed engine run. Final-drive-to-transmission-case cap screws are specified at 120 Nm.

Hydraulic pump stand-by pressure is 155 bar (2250 psi), checked at rated engine speed with transmission oil at 50°C (120°F) using the specified test setup.
