Comprehensive Technical Manual: Scotts Lawn Tractor L1642, L1742, L17.542, L2048, L2548 (2002)
Product Gallery

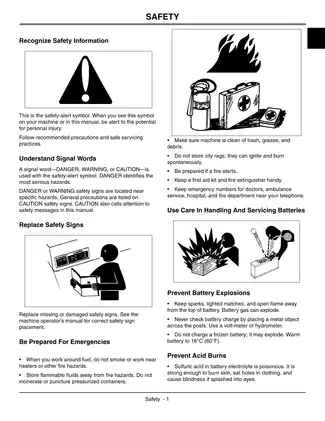

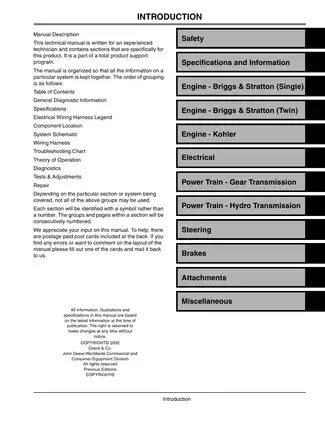

Sample pages from the Comprehensive Technical Manual: Scotts Lawn Tractor L1642, L1742, L17.542, L2048, L2548 (2002) manual
Purchase Information
2002 Scotts Lawn Tractor L1642, L1742, L17.542, L2048, L2548 Technical Manual - Technical Specifications
- Document Number / Seller:
- 30185 / Sandra White
- File Size:
- 57.88 MB
- File Type:
- Language:
- English
- Pages:
- 334
- Printable:
- Yes
- Estimated Download Time:
- 1.19 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Lawn and Garden Tractor
- Brand:
- Scotts
- Reviewed and Approved:
- Dec 22, 2025
Scotts Models and Parts Covered in this Lawn and Garden Tractor Manual
- Scotts L1642 (2002)
- Scotts L1742 (2002)
- Scotts L17.542 (2002)
- Scotts L2048 (2002)
- Scotts L2548 (2002)
Complete Manual Information
Scotts Lawn Tractor L1642, L1742, L17.542, L2048, L2548 (2002) - Professional Technical Service Manual
Take control of your lawn tractor maintenance with this official Technical Manual (TM1949), specifically designed for the 2002 Scotts Lawn Tractor line manufactured by John Deere. This is not just an operator's manual; it is the comprehensive "mechanic's bible" used by professional technicians to diagnose, service, and repair these North American workhorses.
Whether you are performing a simple seasonal tune-up or a complete engine overhaul, this manual provides the technical depth required to get the job done right the first time.
Precision Coverage for Your Model
This manual is tailored to the specific engineering of the 2002 Scotts fleet, featuring in-depth data for:
- Scotts L1642 (2002): Powered by the Briggs & Stratton Intek single-cylinder engine.
- Scotts L1742 (2002): Features the 17.0 hp Briggs & Stratton Intek/31E707 engine.
- Scotts L17.542 (2002): Equipped with the premium 17.5 hp Kohler Command CV490S engine.
- Scotts L2048 (2002): The heavy-duty V-Twin option with a 20.0 hp Briggs & Stratton Intek.
- Scotts L2548 (2002): The flagship model featuring the powerful 25.0 hp Briggs & Stratton Intek V-Twin.
Professional-Grade Technical Insights
Go beyond the basics with specialized sections that offer a real advantage for any owner:
- Advanced Engine Diagnostics: Separate, dedicated sections for Briggs & Stratton (Single & V-Twin) and Kohler Command engines, including cylinder leakdown tests and governor adjustments.
- Electrical Mastery: Complete wiring harness legends and schematics for all systems, including the RIO (Reverse Implement Operation) circuit and electric PTO clutch systems.
- Drive Train Excellence: Detailed service procedures for both Dana-Spicer Gear Transaxles and Tuff Torq K46 Hydrostatic Transmissions.
- Mower Deck Precision: Specific setup and repair data for both the 42-inch and 48-inch rotary mower decks, including spindle repair and blade balancing.
Essential Serial Number & Identification Data
To ensure you always order the correct replacement parts, this manual provides the exact locations for:
- Machine Product Identification Number (PIN): Located on the LH side of the frame.
- Engine Serial Number: Located on the RH side of the engine block.
- Transaxle Serial Number: Located on the back-right side of the transaxle housing.
- Mower Deck Serial Number: Located on the rear left side of the deck shell.
Technical Highlights & Specifications
- Comprehensive Torque Charts: Professional torque values for metric (Grade 7 & 8.8-12.9) and inch fasteners.
- Fluid Capacities: Precise measurements for crankcase oil (with and without filter) and transaxle lubrication.
- Diagnostic Procedures: Step-by-step troubleshooting for "No Start" conditions, charging system failures, and traction drive issues.
- Optimized for Mobile: Clear headings and bulleted technical data make this manual easy to read on your smartphone or tablet right in the garage.
Don't guess when it comes to your equipment. Equip yourself with the same technical specifications and repair procedures used by the pros to keep your Scotts lawn tractor running like new.
Download Instructions for Scotts Lawn and Garden Tractor Manual
Frequently Asked Questions - Scotts Lawn and Garden Tractor Manual
What does this Scotts manual cover?
This comprehensive service manual covers detailed repair procedures, maintenance schedules, troubleshooting guides, and technical specifications for Comprehensive Technical Manual: Scotts Lawn Tractor L1642, L1742, L17.542, L2048, L2548 (2002). It includes information for the following models: - Scotts L1642 (2002) - Scotts L1742 (2002) - Scotts L17.542 (2002) - Scotts L2048 (2002) - Scotts L2548 (2002).
Is this manual suitable for beginners?
Yes, this Scotts manual is designed for both professional technicians and DIY enthusiasts. It includes step-by-step procedures with clear illustrations and safety guidelines for Lawn and Garden Tractor maintenance and repair.
What file format will I receive?
You will receive this manual as a PDF file (57.88 MB), which is compatible with all devices. The manual is fully searchable and printable for your convenience.
How quickly can I access the manual after purchase?
You'll receive instant access to your Scotts Lawn and Garden Tractor manual immediately after payment completion. The download link is valid for 3 days, with lifetime re-download guarantee.
Does this include hydraulic system information?
Yes, this equipment manual covers hydraulic system operation, maintenance procedures, and troubleshooting for your Scotts machinery.
Can I print specific sections of the manual?
Absolutely! This digital manual allows you to print any section you need, from individual pages to complete chapters, making it perfect for workshop use.
