Kohler CV11-16 / CV460-465 / CV490-495 Service Manual

Covers CV11-16, CV460-465, CV490-495 Command engines with detailed service procedures for engine components, systems, and troubleshooting. Includes part numbers for repair. Ref: TP-2339-D

4.7starstarstarstarstar_half(3)
★ REPAIRLOADER SELECT
visibility Preview Available
Kohler Kohler CV11-16 / CV460-465 / CV490-495 Service Manual manual page preview - page 1 of 148

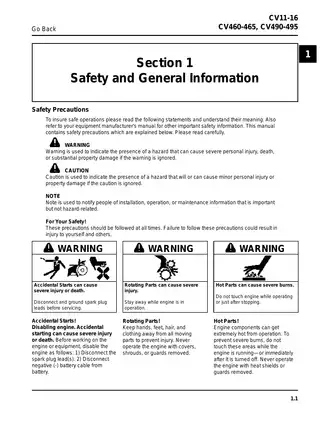

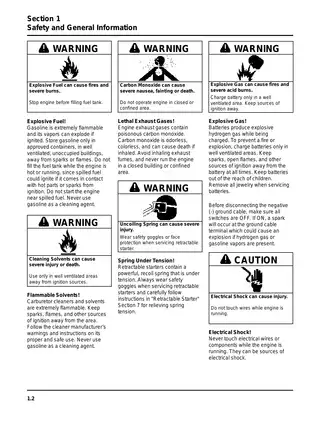

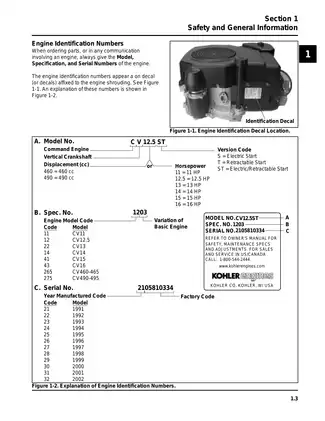

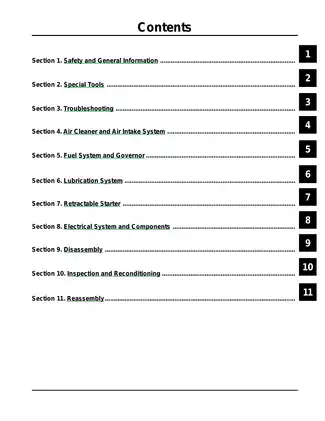

Sample pages from the Kohler CV11-16 / CV460-465 / CV490-495 Service Manual manual

Kohler Kohler CV11-16 / CV460-465 / CV490-495 Service Manual manual preview page 1 - thumbnail
Kohler Kohler CV11-16 / CV460-465 / CV490-495 Service Manual manual preview page 2 - thumbnail
info_outline Click thumbnails to preview different pages
$13.47 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
3 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Kohler Models Covered & Key Technical Specifications

Models: Kohler CV11, Kohler CV12.5, Kohler CV13, Kohler CV14, Kohler CV15, Kohler CV16, Kohler CV460, Kohler CV465, Kohler CV490, Kohler CV495
Sub-models / Variants: Command Series, Vertical Crankshaft, Electric Start, Retractable Start, LPG-fueled variants, Smart Spark equipped variants
Build Years: 1991–2002
Serial Numbers: 2105810334 (example format provided in document)
Technical Data:

  • Cylinder Bore: 87 mm (CV11-14, CV460-465) or 90 mm (CV15, CV16, CV490-495)
  • Stroke: 67 mm (CV11-16) or 77 mm (CV460-465, CV490-495)
  • Compression Ratio: 8.5:1
  • Oil Capacity: 1.9 L (2.0 U.S. qt.)
  • Spark Plug Gap: 1.02 mm (0.040 in.) for most models; 0.76 mm (0.030 in.) for CV11-14 LP, CV16
  • Cylinder Head Fastener Torque: 40.7 N·m (30 ft. lb.)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
29139 / Patricia Campbell
File Size:
5.57 MB
File Type:
PDF
Language:
English
Pages:
148
Printable:
Yes
Category:
Gasoline-Engines
Last updated / verified
Sep 3, 2025

Kohler Manual Features & Content Preview

Kohler Command CV11–CV16 and CV460–CV495 Service Manual

  • Covers 1991–2002 Kohler Command series engines, including CV11 through CV16 and CV460/465/490/495 vertical crankshaft variants
  • Original OEM publication, form number or specific revision code not identified in document
  • Contains 26 detailed sections with technical specifications, component identification, and maintenance schedules for lubrication, fuel, and electrical systems
  • Stored against your account so you can retrieve it after a hard-drive loss
  • Full-text search finds any part number in seconds
  • This publication provides the necessary tolerance charts and wear limits required for internal engine reconditioning or teardown review

Engine Service and Diagnostic Content

This service publication details the maintenance and technical requirements for the Kohler Command vertical crankshaft engine series. The manual covers lubrication system service, including pressure relief valve maintenance and Gerotor oil pump inspection. It also includes comprehensive troubleshooting guides for fuel delivery, governor hunting, and electrical charging circuit malfunctions. Each chapter is structured for identification of engine subsystems, from the air intake and cooling components to the ignition system, with specific documentation on the Smart Spark module and its diagnostic procedures.

Technical Preview and Reference Data

Detailed specification tables provide tolerances for cylinder bores, piston clearances, and crankshaft journals. Engine data lists torque requirements for assembly, such as 40.7 N·m (30 ft. lb.) for cylinder head fasteners and 13.6 N·m (10 ft. lb.) for the oil drain plug. The electrical section details resistance values for ignition modules, which range from 7,900 to 18,400 ohms for secondary windings. Valve clearance and hydraulic lifter specifications are included for top-end service, along with what an OEM service publication covers regarding engine assembly and reconditioning thresholds.

Note: All service data shown here is for reference only — qualified technicians and the original OEM documentation remain the authoritative source for any hands-on work.

An official Kohler Command series engine workshop manual covering the 1991–2002 CV11-16, CV460-465, and CV490-495 models, documenting engine, chassis, electrical, and fuel-system specifications for vertical crankshaft builds.

Manual FAQ, Purchase & Download Details

Are specific tightening specification tables and component clearance ranges included within the General Information section of the document? keyboard_arrow_down

General Specifications section includes detailed tables covering tightening torques for fasteners, cylinder bore limits, and internal clearance ranges. These tables provide technical reference values organized by system and component for the covered engine models.

Does the manual include exploded view diagrams for engine components? keyboard_arrow_down

Document contains illustrated diagrams such as the typical engine dimensions and component assembly views to show the physical layout of parts.

Can I find information in the document regarding the engine series and model variants covered by this service manual? keyboard_arrow_down

Manual covers the Kohler Command series including models CV11-16, CV460-465, and CV490-495. It provides identification data to help verify if these specific engine models appear in the document.
