2000 Scotts S1642, S1742, S2046 & S2546 Lawn Tractor Technical Manual (P/N TM1776)

John Deere technical manual P/N TM1776, dated November 21, 2000, covers the 2000 Scotts S1642, S1742, S2046, and S2546 Limited Edition lawn tractors.

Searchable Text and Enlarged Wiring Views

Text search and diagram detail: Searchable text is available in the service chapters and wiring diagrams. The file has no embedded PDF bookmarks. Small wire and terminal labels benefit from zooming; wide diagrams include overview pages and enlarged split-page views.

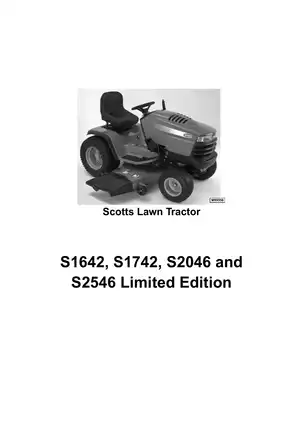

The download is one printable English PDF with 398 pages, including two cover/title pages, seven notes pages, two otherwise blank pages, and 16 enlarged wiring-diagram view pages.

Engine Overhaul, Drivetrain Repair, and Circuit Diagnosis

The coverage highlights below are a selection from the manual. Other topics include front-wheel bearing repair and fuel tank/dash panel removal.

• Engine repair: Step-by-step procedures for engine removal, carburetor overhaul, cylinder bore honing and deglazing, valve lapping, and starter service.

• Engine diagnosis: Troubleshooting charts, Kohler cylinder-leak and crankcase-vacuum tests, and Briggs & Stratton V-twin cylinder-balance testing.

• Hydrostatic drivetrain: Tuff Torq K-51 and K-51E removal and installation, internal transaxle repair, pump and swashplate inspection, and neutral-creep adjustment.

• Gear drivetrain: Dana Spicer H-D 4360 transaxle disassembly, shaft and gear inspection, reassembly, and clutch/brake linkage adjustment.

• Electrical systems: Engine-specific wiring schematics, harness views, and diagnostic tables for starting, charging, ignition shutoff, and PTO/RIO interlocks.

• Steering and mower decks: Steering backlash adjustment, pedestal bushing replacement, deck belt replacement, spindle-brake adjustment, deck leveling, and spindle assembly replacement.

This manual is written for experienced technicians, with diagnostic procedures that call for a cylinder leak tester, manometer, and electrical test equipment.

Engine Inspection and Internal Repair

Separate sections cover the Briggs & Stratton Intek single-cylinder and V-twin engines and the Kohler Command 16 QT. The Kohler chapter includes automatic compression release checks, hydraulic valve lifter inspection, and oil-pressure testing. Briggs & Stratton procedures address adjustable valve trains and crankshaft/cam gear service.

Factory torque tables, wear limits, and inspection measurements support in-house assessment of crankshafts, connecting rods, pistons, and cylinder bores before parts replacement or further machining. The Kohler procedures identify equipment such as the JT035029 cylinder leak tester and JDG705 valve-guide reaming tool.

Electrical Fault Tracing and Engine Shutoff

The Cranking and Fuel Shutoff Circuit Schematic, Stator Circuit Schematic, and PTO with RIO Circuit Schematic accompany diagnostic tables showing test conditions, checkpoints, normal readings, and follow-up checks.

Kohler wiring and connector views distinguish electrical builds with and without a stator brake, helping technicians select the appropriate circuit before tracing a shutoff or interlock fault.

On Briggs & Stratton V-twin engines, a failed magneto kill-wire diode can produce symptoms resembling erratic running. The troubleshooting guide relates this fault to cylinder-balance diagnosis, and the electrical section contains a separate ignition-diode test.

Transaxle Teardown and Reassembly

Gear-drive repair extends to intermediate-shaft and drive-shaft work, with exploded views and a Transaxle Component Location drawing to clarify assembly relationships. The hydrostatic section goes into pump, motor, swashplate, and axle inspection rather than stopping at transaxle replacement.

The 2046HV procedures distinguish its motion-control, damper, and cruise-control linkage. Case-assembly instructions address bypass push-pin seating and warn that incorrect idler-gear shaft positioning can damage the transaxle case.

Steering, Deck Drives, and Sealed Spindles

Steering repair covers fixed and adjustable drag links, pedestal bushings, and backlash adjustment. The attachments section provides 42-inch and 46-inch deck component views, along with 48-inch deck specifications and spindle-brake coverage.

Deck procedures include side-to-side and front-to-rear leveling and suspension adjustment. Sealed mower spindles are replaced as assemblies; the manual warns that adding grease through their fittings can damage the spindle seals.

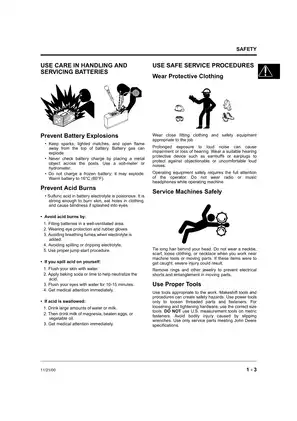

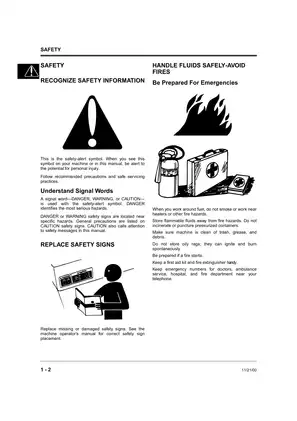

Rotating blades and spring-loaded drive components require the precautions in the complete manual. The specifications in this overview are a reference, not a standalone repair procedure.

Valve Clearance and Stroke: A Specification Preview

For the Briggs & Stratton 311777, valve clearance is 0.08–0.13 mm at the intake and 0.13–0.18 mm at the exhaust, checked cold with the piston 6.35 mm (0.25 in.) past compression TDC. The Kohler engine uses hydraulic lifters and requires no valve adjustment.

The Briggs & Stratton 407777 general-specification table lists a piston stroke of 73.4 mm (2.89 in.).
