Scott McCulloch 3.6–75 HP Outboard Manual Set, 1958–1965 (P/N 79088)

The service data supplies repair and adjustment procedures, while the parts catalogs connect exploded assemblies with component numbers. Together, the model tables and assembly views support matching the installed powerhead and lower unit to the relevant repair information before ordering parts.

This is a mixed-source technical set, not one factory service manual. The McCulloch and Scott-Atwater publications are manufacturer literature; the three multi-model service-data sections state that their publication was not authorized by the manufacturer. Johnson’s book expressly is not an instruction book or service manual.

PDF Search, Section Links and Page Breakdown

Text search and diagram detail: The McCulloch illustrated parts list has searchable OCR text; the Johnson book is only partly searchable. The other seven PDFs do not support content search. Only the 12/14/28 service-data PDF has embedded bookmarks, linking its two sections. Small starter-generator wiring labels and dense Champion ignition diagrams are readable when enlarged.

The ZIP contains 184 pages across nine printable PDFs, including the duplicate 12-page Model 473 booklet; excluding that duplicate leaves 172 pages. The total already includes eight cover/title pages, one notes page and two promotional pages.

Outboard Fuel, Ignition and Mechanical Repair

These highlights show selected contents rather than a complete contents list. Additional material includes steering-friction adjustments and propeller test-wheel information.

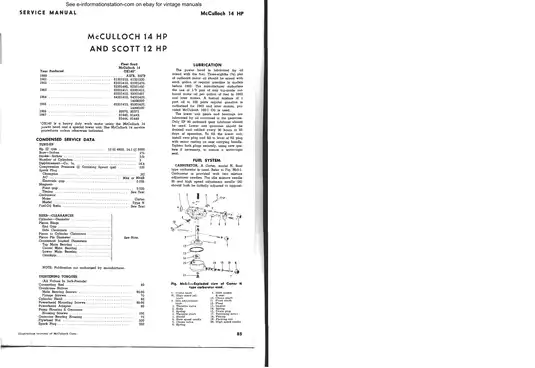

• Fuel system repair: Carter, Tillotson, Marvel-Schebler and Walbro carburetor disassembly, inspection, float and needle adjustment, fuel-pump service, reed-valve checks and multi-carburetor synchronization.

• Ignition and starting: Flywheel magnetos, breaker-point and distributor timing, battery ignition, recoil starters, starter-generator service and diode testing, with manual- and electric-start distinctions.

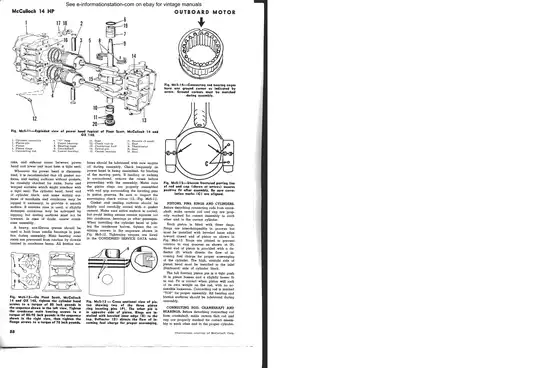

• Powerhead overhaul: Step-by-step procedures for removal, disassembly, internal inspection and reassembly, including pistons, connecting rods, crankshaft bearings, sealing surfaces and tightening sequences.

• Cooling and bailing: Rubber-rotor and impeller pumps, Bail-A-Matic dual-pump service, thermostats and water passages, plus the air-cooled 4 HP powerhead’s water-cooled exhaust leg.

• Lower-unit repair: Direct-drive and gear-shift arrangements, Standard and Weedless Drive units, OX work-motor gearcases and the Custom Flying Scott racing lower unit.

• Inspection and adjustment data: Component-specific torque tables, compression data, piston and cylinder clearances, shaft end play, gear backlash, lubricant requirements and wear limits.

• Parts and illustrations: Numbered exploded assemblies, component lists, starter-generator wiring, water-pump schematics, distributor timing views and specialized gearcase drawings.

The repair sections are best suited to experienced vintage-outboard mechanics and restorers who can identify an engine by model code and work from exploded assemblies, specification tables and special-tool drawings; the Model 473 booklet and Johnson fundamentals guide add owner-level operating and care information.

Carburetor and Ignition Variants

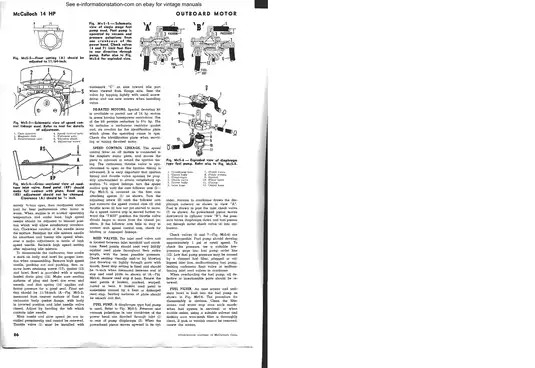

The larger-engine section distinguishes dual carburetors, three-carburetor installations and the two-barrel Marvel-Schebler unit used on late 45 HP models. It covers economizer and accelerator-pump adjustments, Walbro trimmer settings and the vacuum lift-off choke on applicable 75 HP models.

Electrical references include the starter-generator wiring diagram and three-cylinder distributor timing diagram. The Champion guide adds spark-plug condition analysis and a flywheel-magneto trouble-spot drawing, supporting fault isolation alongside the model-specific service data.

Lubrication instructions distinguish engine applications and oil types rather than applying one mixture throughout the collection. Keep ignition isolated and the powerhead securely supported during service; high-voltage ignition and exposed rotating parts require care.

Powerhead Construction and Assembly Cautions

The service data records changes in piston, bearing and ignition construction. For the larger engines, it identifies the revised piston and cylinder-head combination that must remain a matched pair, and describes piston-pin tooling such as J7654.

The McCulloch 4 section identifies an extra needle roller in the replacement bearing package; installing every supplied roller can cause binding and bearing damage.

Work-Motor and Racing Lower Units

The OX 140 uses the McCulloch 14 powerhead with a special heavy-duty lower unit. The larger-engine section separately treats the 450 OX work-motor gearcase and the Custom Flying Scott high-performance drive.

Custom Flying Scott service requires dedicated tools, including the T-5350 driveshaft bearing-cap wrench, T-5393 prop-shaft seal protector and T-5403 reverse-gear assembly tool. Dimensioned drawings support local fabrication of the illustrated tools, allowing the required tooling to be assessed before teardown.

Losing the indexed shim arrangement or changing the pinion’s spline position can alter backlash and damage the gear train.

Exploded Assemblies for Parts Identification

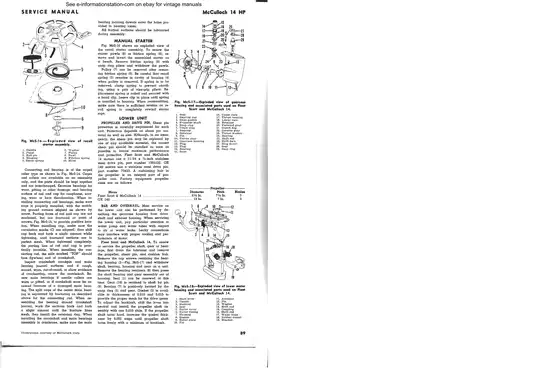

The McCulloch parts list contains 13 numbered exploded-view groups, including Powerhead, Bail-A-Matic and Propeller, Fuel Line and Fuel Tank, and Extended Shaft. Housing, starter, magneto, carburetor, lower casing, lower unit, boat bracket and steering-handle assemblies are also itemized.

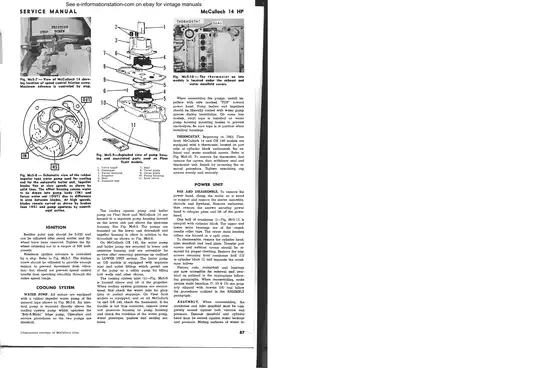

The service sections add a rubber-impeller water-pump schematic and the Custom Flying Scott gearcase exploded view. These distinguish component arrangements that differ between the standard, work-motor and racing builds.

A Preview of Piston and Crankshaft Inspection Data

For the McCulloch 4, piston-ring end gap is specified at 0.004–0.012 inch when measured in the cylinder bore just above the exhaust ports. Recommended piston-to-cylinder clearance is 0.0025–0.0035 inch.

The larger-engine service section specifies 0.008–0.012 inch crankshaft end play for its three-cylinder engines.
