Scotts Models Covered & Key Technical Specifications

Models: S2048 (Kohler CV20S), S2348 (Kohler CV23S), S2554 (Kohler CV25S)

Model Years: 2000


  • Engine Displacement: 624 cc (20 HP), 674 cc (23 HP), 725 cc (25 HP)

  • Engine Configuration: 4-stroke, 2-cylinder, vertical shaft

  • Fast Idle Speed: 3350 ±75 rpm

  • Fuel System: Pulse-type fuel pump, float-type side-draft carburetor

  • Ignition System: CDI (20 HP and 23 HP models), Smart Spark capacitive discharge (25 HP models)

  • Transaxle (S2048/S2348): Tuff-Torq K-62C (hydrostatic)

  • Transaxle (S2554): Tuff-Torq K-66C (hydrostatic)

  • Cylinder Compression (min): 1125 kPa (160 psi)

Scotts Manual Features & Selected Content Preview

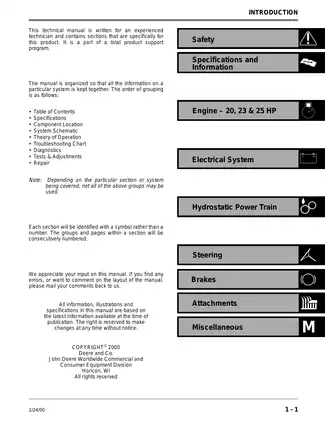

Deere & Co. Technical Manual TM1777, dated February 24, 2000, covers Scotts S2048, S2348, and S2554 yard and garden tractors. It replaces the March 10, 1999 issue.

Searchable PDF with Section and Procedure Bookmarks

Navigation and wiring detail: The PDF has searchable text and embedded bookmarks for sections and individual procedures. Small wiring labels are best read with zoom.

One printable English PDF contains 275 pages, including the original cover, six notes pages, and four additional split-page views of the wide electrical schematic and W1 main wiring harness sheet.


Tractor Diagnostics and Mower Deck Repair

The selected topics below highlight the main repair areas. Additional subjects include governor sensitivity and choke adjustment.

  • Kohler engine diagnosis: Compression, cylinder-leak, crankcase-vacuum, oil-pressure, fuel-pump, and ignition tests, followed by engine removal, installation, and internal repair.

  • Hydrostatic power train: K-62C/K-66C troubleshooting, bleeding, neutral-creep and linkage adjustments, complete transaxle disassembly and assembly, and K-66C charge-pump service.

  • Electrical fault tracing: Circuit diagnosis for power, cranking, ignition, engine shutoff, charging, PTO, Reverse Implement Option (RIO), and headlights, plus starting-motor repair.

  • Steering and brakes: Pinion-and-sector diagnosis, drag-link adjustment, steering-shaft and sector removal, the left-turn-stop modification, brake adjustment, pedal/linkage repair, and park-brake service.

  • Mower deck service: Drive checks, vibration and uneven-cut diagnosis, side-to-side and front-to-rear leveling, gauge-wheel adjustment, blade service, and spindle disassembly, inspection, and reassembly.

  • Chassis and lift components: Front-axle and wheel work, body-panel removal, mower-lift linkage repair, and height-adjuster service.

The manual is written for an experienced technician; its meter testing, precision measurement, and internal engine and transaxle procedures assume solid shop experience.

Engine Repair and Ignition Variants

Step-by-step instructions cover cylinder-head and valve service, piston removal and installation, and crankshaft measurement. Related sections address hydraulic valve lifters, the camshaft, governor, piston rings, seals, and oil-pump inspection and replacement.

The engine material distinguishes the fixed-timing CV20S/CV23S ignition arrangement from the CV25S Smart Spark system. CV25S coverage includes a Spark Advance Module (SAM) test, dedicated W7/W8 harness information, and separate armature tests.

The carburetor contains no serviceable internal components. Coverage includes external troubleshooting, removal and installation, and slow-idle adjustment, with an idle-mixture adjustment specifically described for the CV20S.

Hydrostatic Troubleshooting and Internal Service

Diagnostic charts address loss of drive, noise, creep, one-direction travel, erratic speed, weak hill holding, and freewheel-valve faults. They link belt and control-linkage checks to internal pump, motor, differential, and axle inspections, helping distinguish external control problems from faults requiring transaxle removal.

The internal repair material includes center-case and cylinder-block inspection, swash-plate positioning, shaft seals, reduction gears, differential components, and the separate K-66C charge-pump procedures.

Schematics, Assembly Views, and Workshop References

W1–W8 harness views and connector-terminal references support electrical fault tracing. Named drawings include the Standard Electrical Schematic, Ignition Circuit Schematic, and Reverse Implement Option (RIO) Circuit Schematic.

Hydrostatic System Operation and Gear Power Flow explain the transmission’s internal relationships. The Cross Section 48/54 Inch Deck illustrates spindle bearings, seals, spacers, and seal-ring orientation.

Factory tool references include the JT07270 Digital Pulse Tachometer and TY15272 Blade Height Gauge, alongside vacuum, oil- and fuel-pressure, battery-load, current-clamp, and multitester equipment.

Reference tables provide component-specific torques, lubricant requirements and capacities, engine and transaxle clearances, wear limits, electrical test specifications, and steering, brake, pedal, belt, and deck adjustment data.

Mower Deck Scope and Assembly Cautions

Attachment repair coverage is for the 48- and 54-inch mower decks. It includes spindle bearing and seal positioning, deck removal and installation, and blade sharpening and balancing; there are no repair chapters for other implements.

Incorrect piston-and-connecting-rod orientation can cause extensive engine wear or damage. The spindle instructions also warn that clamping the shaft’s hex end in a vise can damage it and interfere with blade operation.

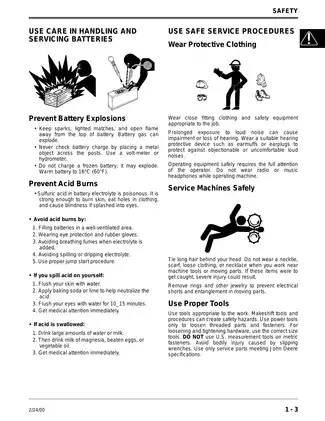

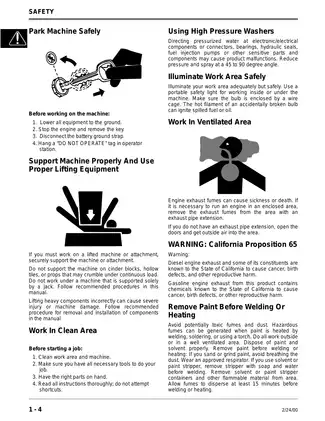

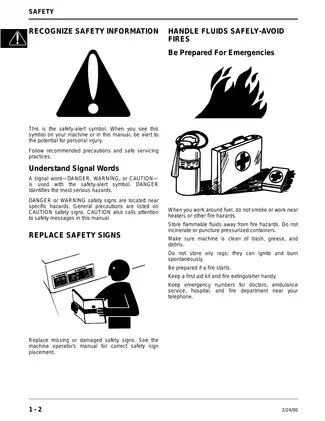

Follow the manual’s precautions for battery isolation, rotating blades, and supporting raised equipment. Its safe-parking guidance covers lowering attachments, stopping the engine, and removing the key before service.

A Preview of Cylinder-Bore and Camshaft Specifications

For the CV20S, the engine repair tables list a standard cylinder-bore ID of 77.00–77.025 mm and a maximum wear limit of 77.063 mm. These figures distinguish the original bore dimensions from the service limit used during inspection.

The camshaft section specifies 0.08–0.13 mm end play with the shim installed and includes a shim-selection table alongside the checking procedure.
