1994–2005 JCB 8014 Mini Excavator Service Manual (P/N 9803/3105)

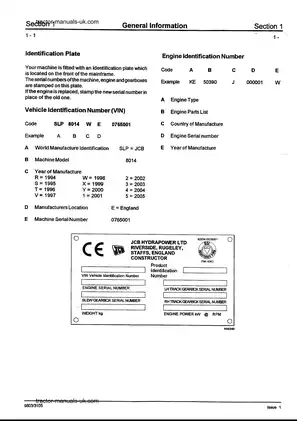

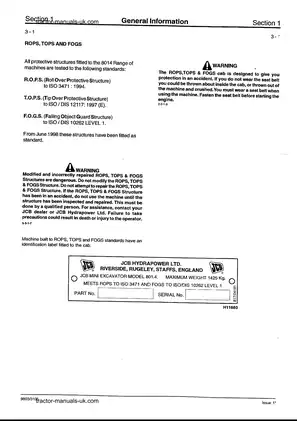

JCB service manual 9803/3105 covers the 1994–2005 JCB 8014 mini excavator alongside the 8015, 8016, 8017, 8018, and 801 Gravemaster. It contains pages marked Issue 1 and Issue 2, with separate material for cable controls, servo controls, and single- and two-speed travel systems.

Text search, bookmarks, and drawing detail: The technical content is not text-searchable. Embedded bookmarks lead to seven main sections. Small schematic labels benefit from zooming; overlapping wire-color markings on the harness drawing remain unclear. Parts of the operating-control pages are cropped or missing.

• Hydraulic pump and valves: Three-element gear-pump disassembly, inspection, and assembly; control-valve repair; and main, auxiliary, servo, and crossline relief-valve pressure tests.

• Travel and slew systems: Single- and two-speed track-motor overhaul, slew-motor fault finding, planetary gearbox service, and rotary-coupling repair for different machine configurations.

• Hydraulic cylinders: Boom, dipper, bucket, dozer, and swing cylinder removal and replacement, seal installation illustrations, and piston, rod, bore, and bushing inspection.

• Electrical diagnosis: Alternator and starter-motor overhaul, charging-system tests, regulator circuit schematics, wiring diagrams, and a harness layout with component and wire-color keys.

• Control mechanisms: Excavator and auxiliary control cables, swing pedal linkages, servo hand controllers, throttle adjustment, and separate dozer-lever procedures for the extending-undercarriage models.

• Tracks and running gear: Steel and rubber track replacement, tension adjustment, track-roller service, metallic face-seal inspection, and idler and recoil-unit disassembly and assembly.

The repair sections suit mechanics familiar with hydraulic and electrical testing, with access to pressure gauges, electrical test equipment, and a workshop press.

Hydraulic Circuits, Pressure Tests, and Cylinder Repair

The hydraulic descriptions distinguish cable and servo machines from the 8017/8018 configuration with two-speed tracking and an extending undercarriage. The latter circuit identifies the undercarriage extension ram, dozer/extension dual solenoid valve, and two-speed tracking solenoid.

Rotary-coupling procedures separately cover single-speed machines, the two-speed 8016, and the two-speed 8017/8018 with an extending undercarriage. These distinctions help match the coupling and hose arrangement to the machine before repair.

Reference tables cover model-specific pump and cylinder data, hydraulic tank capacity, and slew-motor gearbox output specifications.

Pressure-testing coverage includes an oil-temperature/relief-pressure graph and separate procedures for the main, auxiliary, servo, and slew crossline valves. The auxiliary-valve bench test specifies test block 892/00252 and hand pump 892/00223.

The main relief-valve assembly notes identify a specific damage risk from unsuitable hose adapters at the control-valve service ports. Cylinder repair coverage distinguishes hex-head and C-spanner end caps, with component torque tables, piston-head dowel details, and clearance checks.

Starter, Alternator, and Wiring Diagnosis

The electrical section covers the negative-ground system, battery testing, and fuse ratings. Starter inspection extends to armature, field-coil, brush-holder, and solenoid checks, with pinion-clearance adjustment information.

Alternator diagnosis includes rotor and stator checks, rectifier testing, and regulator continuity tests. The Alternator–Regulator Circuit drawings show engine-off, low-speed, and high-speed operation; Voltage Output Test and Current Output Test charts relate readings to the next diagnostic check.

The wiring diagram and Wiring Harness drawing identify optional servo-isolation equipment, cab lights, and the beacon. The hydraulic circuit drawings, pump exploded view, and track-motor cross sections provide corresponding references for mechanical and hydraulic work.

Control Linkages and Machine Operation

Control service includes cable routing and adjustment, swing pedal linkage inspection, and servo hand-controller removal and replacement. The 8017/8018 dozer-lever section also covers its electrical harness and switch connections.

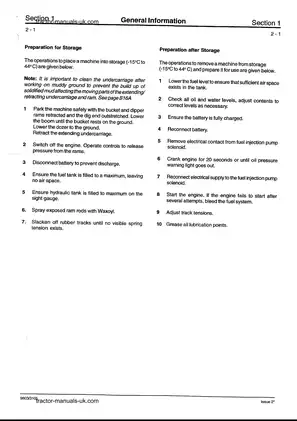

Operating material explains standard ISO and optional 3CX control patterns, boom swing stops, dipper and bucket functions, cab entry, seat adjustment, and windshield operation. It also covers storage, slope work, backfilling, disabled-machine handling, and transport, with illustrations of digging and lifting arrangements.

Keep the machine securely supported and relieve trapped hydraulic pressure before opening hydraulic connections.

Gearboxes, Tracks, and Coverage Limits

Gearbox procedures cover planetary components, bearings, floating seals, and slew-drive removal. The track-gearbox assembly notes explain how tilting the cover during installation can damage its O-ring.

Running-gear specifications include wear limits for links, pins, bushings, idlers, rollers, and sprockets. The rubber-to-steel track conversion section identifies the added track guides and roller spacers.

This file does not include an internal engine-overhaul chapter or the separate Routine Maintenance section referenced by several procedures.

Printable PDF and Included Pages

Supplied as one printable English-language PDF. The 163-page PDF includes one added title page, 14 blank separator pages, and one repeated electrical contents page; these are already included in the total.
