2005–2014 JCB 3C, 3CX, 3D, 4C Turbo & 4CN Excavator Loader Service Manual (P/N 9803/3250)

JCB service manual P/N 9803/3250, Issue 11, for the listed 2005–2014 JCB 3C, 3CX, 3D, 4C Turbo and 4CN excavator loader configurations, starting at machine serial no. 290000. Coverage includes North American variants and equipment-specific service sections.

• Hydraulic repair: Single and double gear-pump overhaul, loader and excavator valve service, main and auxiliary relief-valve testing, and hydraulic cylinder rebuilding.

• Transmission diagnosis: Shuttle reverser and JCB Syncro Shuttle fault finding, torque-converter testing, clutch-pack service, gearbox assembly, and shaft end-float adjustment.

• Axles and brakes: Differential overhaul, bearing-preload and backlash adjustment, service-brake disassembly, master-cylinder repair, parking-brake adjustment, and bleeding procedures.

• Hydraulic steering: Steering-pump inspection, Danfoss Orbitrol unit assembly, steering-cylinder repair, circuit illustrations, and pressure tests for fault isolation.

• Attachments and framework: Attachment-pressure testing, roadbreaker and patch-planer service, kingpost and carriage repair, slew-cylinder work, and boom/slew-lock servicing.

• Engine and electrical service: Engine specifications and maintenance, fuel-system bleeding, charging and starting tests, alternator and starter repair, and serial-specific wiring diagrams.

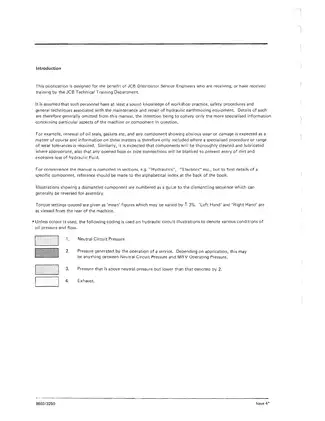

Written for JCB distributor service engineers receiving or having completed JCB technical training, this manual assumes sound workshop knowledge and experience with hydraulic earthmoving equipment.

Hydraulic Valves, Pumps and Pressure Diagnosis

Separate procedures cover Parker Hannifin and Hamworthy loader valves, including standard, float and electric detent spools. Cross-sectional drawings and exploded views show load-hold check valves, auxiliary relief valves and the high-pressure carry-over arrangement.

Machine Neutral Circuit illustrations explain how the loader and excavator systems interact. The pressure-test charts distinguish a fault affecting one service from pressure loss across the excavator circuit, helping technicians narrow down valve, cylinder-seal and carry-over faults before dismantling components.

The Parker Hannifin main relief-valve section warns that paint scraped from the valve body during assembly can contaminate O-rings and back-up rings. The Hamworthy load-hold check-valve instructions identify plain-head caps that can distort and leak if overtightened.

Shuttle Reverser, Gearbox and Axle Work

The transmission sections distinguish the separate shuttle reverser and gearbox used through machine no. 319999 from the integrated JCB Syncro Shuttle introduced at machine no. 320000.

Shuttle Reverser Operation illustrations explain forward and reverse drive. Fault-finding charts address overheating, loss of drive and shifting problems; repair sections cover clutch packs, selector mechanisms, shaft end float and the four-wheel-drive disconnect assembly. Syncro Shuttle testing includes converter stall, pressure and flow checks using the specified test adapters.

Rear bullgear and front epicyclic axle sections provide differential assembly, pinion-depth, bearing-preload and backlash procedures. Brake coverage includes friction-plate inspection, master-cylinder work and brake balancing. The Steering Circuit and Danfoss Orbitrol OSPB 160 assembly illustrations support steering-system diagnosis and repair.

Extradig, Slew Systems and Attachments

Extradig dipper lubrication and attachment-pressure checks sit alongside twin-ram slew, kingpost/carriage and rack-and-pinion slew actuator procedures. Knuckle-boom lubrication points and hydraulic circuits are also included.

North American 1700B double-pump machines from machine no. 330631 have dedicated hydraulic-circuit, unloader-valve and attachment-service-valve sections. Other attachment coverage includes BRH 125 and BRH 250 powerbreaker circuits, roadbreaker accumulator testing and patch-planer dismantling.

Engine Maintenance and Electrical Diagnosis

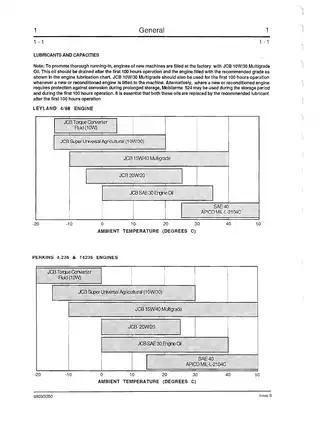

Leyland 4/98 and Perkins 4.236/T4.236 data include engine-build identification, injection-pump settings, valve-clearance specifications and lubrication charts. Maintenance procedures cover oil and fuel filters, fuel-system bleeding, cooling-system servicing, air cleaners and belt adjustment.

Engine coverage is specifications and maintenance; internal engine overhaul requires separate engine manuals. The general service schedules also cover grease points and transmission and axle fluid changes. General fastener tables identify bolt grades and dry-thread conditions.

Electrical sections include charging-circuit checks, starting-circuit voltage tests, and repair information for Lucas alternators and M50/M127 starters. Five serial-specific wiring-diagram versions provide component keys, wire-color codes and switch connections, including transmission solenoids and optional equipment.

Given the risks associated with heavy construction equipment and high-pressure hydraulic systems, service work should be performed by appropriately trained personnel following the manual’s safety precautions.

Examples of Valve Clearances and Cooling Capacities

These figures are a small selection of the engine specifications included in the manual. For Perkins 4.236 (LD) and T4.236 (LH/LJ) engines, valve clearance is 0.25 mm hot or 0.30 mm cold.

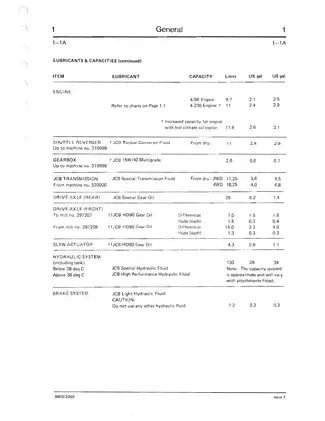

The 4.236 cooling-system capacity is 17.0 liters through machine no. 306000 and 17.8 liters from machine no. 306001.

PDF Search, Navigation and Page Count

Search and diagram detail: Useful text search is limited to the title page. The PDF has 23 numbered bookmarks at 20-page intervals, supported by a printed alphabetical index. Small wiring labels require zooming; some circuit lines are faint or interrupted.

Supplied as one printable, 458-page PDF in English. The total includes the title page, 34 blank pages and the eight-page index.
