1990s–2000s JCB 1400 / 1400B Backhoe Loader Service Manual (P/N 9803/3257U)

JCB service publication P/N 9803/3257U covers the listed 1990s–2000s 1400 and 1400B backhoe loaders, with 2WD and 4WD configurations and machine coverage beginning at serial number 337001.

• Hydraulic repair: Double gear pump and control-valve disassembly, hydraulic cylinder service, main and auxiliary relief-valve testing, and servo-control diagnosis.

• Syncro Shuttle transmission: Removal, gearbox assembly, reverser clutch repair, mechanical four-wheel-drive unit service, and torque-converter stall, pressure and flow tests.

• Front and rear axles: Differential and hub disassembly, pinion-depth adjustment, bearing preload, crownwheel backlash, and separate coverage for later axle designs.

• Brakes and steering: Master-cylinder service, vacuum servo checks, brake bleeding and piston-seal leakage tests, plus hydraulic steering-unit overhaul and pressure testing.

• Engine maintenance: Perkins 1000 Series specifications, lubrication charts, fuel-system bleeding, cooling-system service, fan-belt adjustment, and air-filter replacement.

• Electrical troubleshooting: Starting and charging tests, wiring codes, harness connector views, and check/action charts for transmission controls, instruments, switches and lighting.

• Attachments and framework: Roadbreaker service sections, accumulator testing and charging, patch-planer repair, Extradig wear-pad inspection, and boom, dipper and kingpost work.

This manual was written for JCB distributor service engineers receiving or having completed factory training, with workshop practice and hydraulic equipment repair knowledge assumed.

Hydraulic System Documentation

The Schematic Hydraulic Circuit (Basic Machine), Excavator Valve Neutral Circuit and servo-machine schematics explain flow through the loader valve block, load-hold check valves and anti-cavitation valves. Gear-pump cross-sections accompany the pump dismantling and assembly notes.

Separate pressure-test procedures cover the earlier unloader arrangement and the integrated loader/unloader block introduced at 352947. Later excavator A.R.V. testing and resetting uses service kit 892/00309, with different introduction points for Sideshift and Centremount machines. These distinctions help match the valve design and test connections before pressure diagnosis.

Pump overhaul notes warn that levering housings apart can damage their machined faces. Safety coverage addresses trapped hydraulic pressure, crushing hazards and use of the factory loader-arm safety strut.

Transmission Repair and Axle Setup

The transmission section distinguishes two-piece and three-piece gearboxes, earlier reversers and later Electron Beam Welded Reverser Units. Fault-finding charts connect drive complaints with clutch pressure, converter operation, pump flow and electrical selection faults.

Transmission coverage gap: Printed page 6/6-3 is missing, leaving part of the gearbox dismantling sequence incomplete. Printed page 6/6-12 is included out of sequence at PDF p. 244.

Axle procedures cover the earlier bullgear arrangement and later epicyclic hub reduction. Cutaway views accompany differential work, hub service, pinion-depth setting, bearing preload and backlash adjustment.

Brake Diagnosis and Hydraulic Steering

Brake documentation separates servo and non-servo bleeding procedures and includes compensating master-cylinder operation, parking-brake adjustment and brake-piston seal leakage testing. The fluid warnings matter: conventional brake fluid can damage the seals and lead to brake failure.

Hydraulic steering coverage includes pump inspection, steering-unit assembly and pressure testing. Steering Circuit drawings distinguish machines with hydraulic oil coolers before and after the documented serial break.

Perkins Engine Service and Maintenance

Service schedules cover 10–2,000 operating hours, with calendar-based alternatives. The engine chapter includes earlier and later sediment bowls, lift-pump and filter service, and different bleeding procedures for conventional and self-purging injection pumps.

Engine scope: This chapter concentrates on specifications and external maintenance. It refers further engine detail to separate publication 9806/0100, which is not included in this PDF.

Attachments, Slew Gearbox and Framework

The attachment section includes Roadbreaker regulator and auxiliary-valve service, accumulator testing and charging, and low-flow, high-flow and rockbreaker circuit drawings.

Roadbreaker coverage gap: Printed page 3/5-3 is missing, and page 3/5-2 appears twice, leaving part of the assembly sequence incomplete.

Other sections cover patch-planer dismantling, Extradig wear-pad inspection and adjustment, boom and dipper removal, and Sideshift kingpost, carriage and slew-gearbox work. Greasing diagrams include the 6-in-1 clamshovel and loader and excavator quick-hitch attachments.

Electrical Tests and Wiring References

Starting, Charging, Thermostart and ESOS Circuits and Operator Controls, Switches and Relay Circuits are supported by component-location drawings, connector views and wiring-code tables. Charging-system checks, starter-circuit tests and fault charts cover symptoms beyond routine battery maintenance.

Connection-care notes include petroleum jelly as a corrosion and moisture inhibitor.

A Preview of Clearances and Fastener Torque

For Perkins 1000 Series AA, AB and AC engines, cold valve clearances are 0.20 mm intake and 0.45 mm exhaust. Syncro Shuttle assembly data specifies 0.03–0.08 mm mainshaft end float for both two-piece and three-piece gearboxes.

The general metric Grade 8.8 bolt table lists 2,854 Nm for M36 fasteners on dry threads, applicable where no component-specific torque is given. UNF Grade S bolt tables are also included.

PDF Text Access, Diagram Detail and Page Breakdown

Search, index and diagram detail: Only the opening registration page has searchable text; the technical chapters do not support PDF text search. There are no embedded PDF bookmarks. Navigation uses the printed contents and index. Small wiring labels require zooming, and some electrical sheets show background bleed-through.

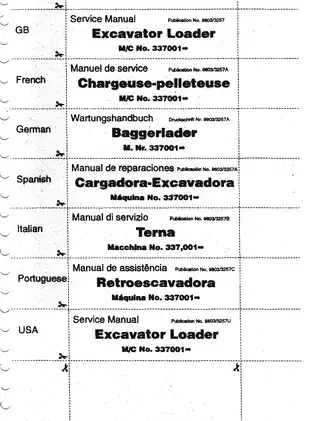

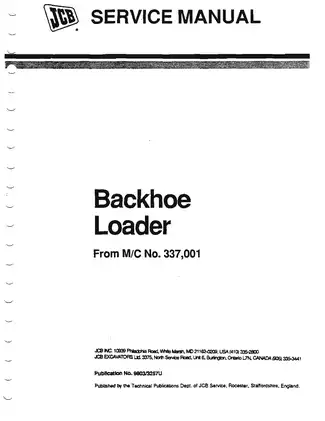

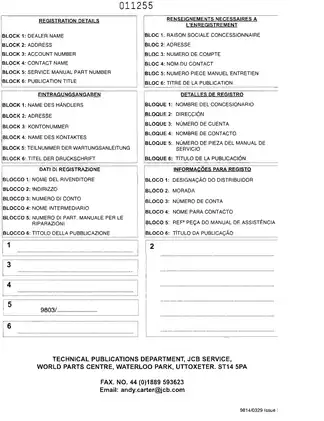

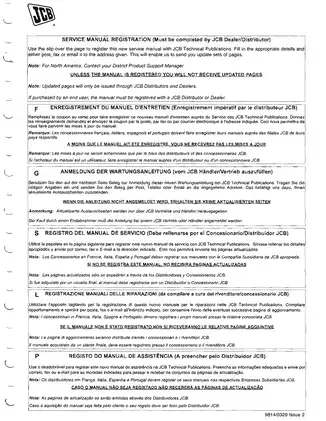

One printable, 515-page PDF contains the English-language manual: 11 front-matter pages, 496 pages of manual sections including three repeated pages, and an eight-page index. The front matter includes registration and error-report forms, the cover and language/publication reference, replacement-page lists, contents, introduction and color-coding guide.
