JCB 3CX, 4CX & 3C Backhoe Loader Service Manual, 2004–2010 (P/N 9803/3290-15)

JCB service manual P/N 9803/3290-15 covers the 3C, 3CX and 4CX backhoe-loader families and their North American equivalents within the serial ranges listed above. Its 13 sections address machine maintenance, diagnosis and repair. Some section title pages retain publication number 9803/3290-14.

PDF Search, Bookmarks and Diagram Detail

Text access and navigation: Service text is searchable, but many drawing labels and some tables are outside the searchable text layer. Most bookmarks have numerical labels rather than chapter names, and one bookmark has no usable destination. Small wiring and connector labels require zooming. The Powershift park-brake sequence contains a blank page at G-70 (PDF p. 1443), between G-69 and G-71.

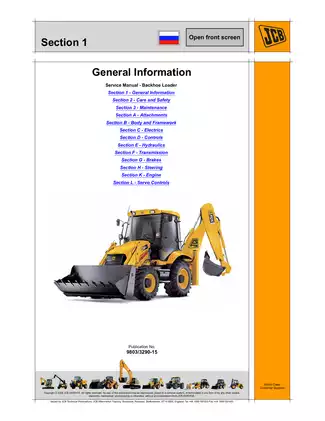

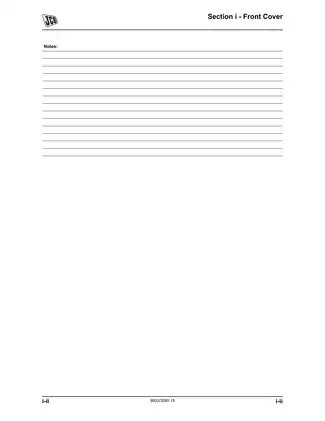

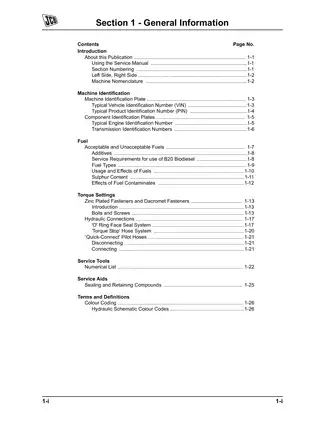

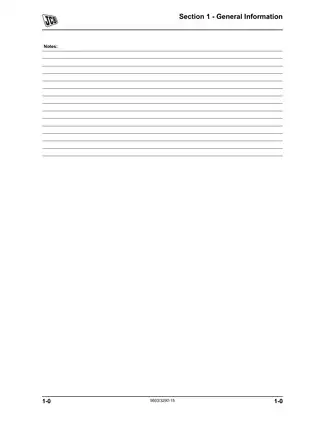

The download is one printable 1,913-page PDF. This total includes 14 main/section title pages, 14 Notes pages, nine otherwise empty contents leaves and the blank page noted above.

Hydraulic, Drivetrain and Electrical Service

The following selected topics outline the workshop coverage rather than reproduce the full contents. Other subjects include shovel-reset adjustment and wiring-harness repair.

• Engine and cooling: DieselMax identification and specifications, cold-start ECU blink codes, sensor and solenoid replacement, cooling-component service, and step-by-step engine removal and installation.

• Transmission and axles: Synchro Shuttle and Powershift fault finding, torque-converter stall tests, pressure/flow checks, clutch-leakage tests, axle seal service, and gearbox removal.

• Hydraulic components: Gearpump and Variflow diagnosis, regulator adjustment, loader/excavator valve testing, ram-creep checks, accumulator service, and pump, valve and ram disassembly procedures.

• Electrical and servo controls: Wiring schematics, harness interconnections, multimeter checks, starting/charging tests, and separate Precision Control, Advanced EasyControl and EasyControl diagnostics.

• Body and attachments: Cab mounting and trim work, air-conditioning diagnosis, loader-arm and boom/dipper removal, kingpost service, Hydraclamp adjustment, and rockbreaker/tool-circuit coverage.

• Brakes and steering: Brake bleeding, vacuum and seal-leakage tests, park-brake repair, steering pressure tests, wheel rephasing, proximity-switch adjustment, and hydraulic steer-unit overhaul.

JCB wrote this publication for distributor service engineers receiving or having completed JCB training, with established knowledge of workshop safety and hydraulic earthmoving equipment.

Matching Procedures to the Machine Build

The configuration descriptions help select the appropriate procedure when a model name alone is insufficient. They distinguish sideshift and center-mount machines, two-wheel and four-wheel steering, 2WD/4WD drivetrains, and manual versus servo controls.

Hydraulic diagrams separate 3CX gearpump builds before and after September 2007 and show 4CX Variflow arrangements. Electrical coverage distinguishes analog instruments through May 2009 from digital instruments introduced from May 2009, alongside early/later fuse and relay layouts.

The machine-specific references also identify the Auxiliary/Hydraclamp circuit change from serial 1332954 and the revised torque-converter flexible drive plate from 974058.

DieselMax Service and Engine-Manual Boundaries

Section K identifies SA, SB, SD and SF engines and covers the installed engine, cooling radiator, expansion tank, viscous fan coupling and associated electrical components.

Separate engine publication: Full engine technical data and the detailed fuel-injection-pump removal/replacement procedures are referred to publication 9806/3000. This machine manual provides pump-access preparation and a timing-related caution; it does not provide a complete internal engine overhaul chapter.

Transmission Diagnosis and Repair Limits

The drivetrain sections distinguish SD55, SD80 and PD70 axles, SS700 Synchro Shuttle gearboxes, and PS764/PS766 Powershift units. Their test procedures support diagnosis before major assemblies are removed.

ShiftMaster Diagnostics 2.2, Setup 2.2 and flash-programmer guidance cover the electronic control system; lock-up converter testing and speedometer calibration are also included. The Diagnostics and Setup tools apply to ECU 2/2.2-controlled PS760 gearboxes, excluding relay-controlled units and older PS750 controllers.

Separate overhaul publication: Internal axle and gearbox dismantling/assembly procedures, together with internal service-brake work, are referred to Transmissions Service Manual 9803-8610.

The torque-converter installation cautions explain how incorrect seating or pump-drive engagement can damage the gearbox oil pump at startup.

Hydraulic and Joystick-Control Diagnosis

Standard and high-pressure gearpump systems have distinct specifications, with separate coverage for 3C-14/214e and 3C sideshift arrangements. Loader and excavator sections address main and auxiliary relief valves, load-hold circuits, shuttle signals, hydraulic speed control and hose-burst protection.

The servo chapters distinguish sectional closed-center valves from EasyControl monoblock open-center valves. Load-sense leakage checks, pressure-compensator tests, servo-pressure measurements, cycle-time checks and thumbwheel blink codes support fault isolation within the appropriate system.

Smooth Ride System coverage includes accumulator charging/discharging and its interaction with hose-burst protection. Step-by-step component procedures extend to hydraulic pumps, valves and rams.

Electrical Diagrams, Chassis and Attachments

Circuit references include Synchro Shuttle/Powershift/ShiftMaster controls, Type 1 and Type 2 four-wheel-steer systems, and Advanced EasyControl/EasyControl analog and digital instrument circuits. Harness drawings cover both 3CX/4CX and 3C-14/3C machines, with connector and interconnection detail.

Starting- and charging-circuit tests are supported by alternator regulator/brush work and starter brush/solenoid replacement procedures.

Attachment coverage includes high-flow rockbreaker and hydraulic tool circuits, plus control-valve and ram replacement for the 214e Landscaper three-point hitch. The chassis sections cover air-conditioning gauge diagnosis and refrigerant service, stabilizer wear pads, and powered sideshift components.

The Extradig wear-pad instructions identify an orientation error that can damage the dipper or pads. Fastener guidance separately explains zinc/yellow-plated versus Dacromet torque conditions and incompatible mixed bolt/nut pairings.

Workshop References and Equipment

Service schedules, approved fluids, capacities, fastener and hydraulic-connection torque tables, wear limits and electrical test specifications accompany the procedures.

Tool references include hydraulic pressure kit 892/00253, electronic service kit 892/01033 with cable 721/10885, and converter alignment tool 892/01110. The manual identifies 998/11051 as the replacement for the discontinued hydraulic pressure kit and specifies digital pressure-testing equipment for servo systems.

Workshop safety coverage addresses mechanical support for raised loader arms, residual hydraulic pressure, and suitable lifting/support equipment for engine, axle and gearbox work.

Examples of Valve Clearances and Inloader Settings

The engine table lists cold inlet valve-tip clearances of 0.19–0.27 mm for SA/SB engines and 0.35 mm for SD/SF engines.

For the Precision Control inloader valve, model 0704BP, the factory shim-set differential is 10 bar through serial 1336068 and 12 bar from serial 1336069. These entries illustrate the distinction between engine-specific reference data and serial-dependent hydraulic settings.
