2004 Polaris Ranger 425, 500, TM 2x4, 4x4, 6x6 Service Manual

Official Maintenance & Repair Manual for Polaris Ranger 425, 500, TM 2x4, 4x4, 6x6 UTVs. Covers all models, systems, and procedures. Part Number P-067.

5.0starstarstarstarstar(1)
visibility Preview Available
Polaris 2004 Polaris Ranger 425, 500, TM 2x4, 4x4, 6x6 Service Manual manual page preview - page 1 of 432

Sample pages from the 2004 Polaris Ranger 425, 500, TM 2x4, 4x4, 6x6 Service Manual manual

Polaris 2004 Polaris Ranger 425, 500, TM 2x4, 4x4, 6x6 Service Manual manual preview page 1 - thumbnail
Polaris 2004 Polaris Ranger 425, 500, TM 2x4, 4x4, 6x6 Service Manual manual preview page 2 - thumbnail
Polaris 2004 Polaris Ranger 425, 500, TM 2x4, 4x4, 6x6 Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$17.66 (incl. VAT) Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

Polaris Models Covered & Key Technical Specifications

2004 Polaris Ranger 425, 500, TM 2x4, 4x4, 6x6 Service Manual

Official Maintenance & Repair Manual for Polaris Ranger 425, 500, TM 2x4, 4x4, 6x6 UTVs. Covers all models, systems, and procedures. Part Number P-067.

  • System Specifications: Engine oil capacity of 1.64 qts. signifies the required fluid volume for optimal operation.
  • Maximum Storage Capacity: Cargo box capacity reaches 850 lbs. to accommodate substantial hauling needs.

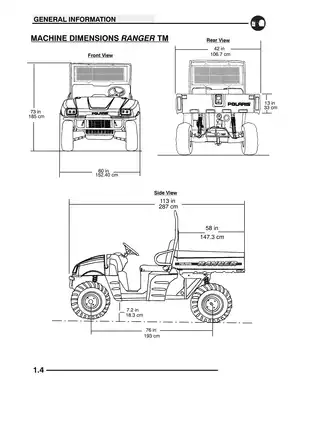

  • Measured Dimensions: Ground clearance is 7.2 in. establishing a stable operational height Framework.
  • Published Weights: Dry weight is 1105 lbs. representing the base operational mass.
  • Authorized Capacities: Hitch towing capacity is 1400 lbs. defining the maximum safe towing limit Parameters.
  • Technical Specifications: Fuel capacity is 8.5 gal. confirming the adequate operational range.
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
32180 / Sharon Sanchez
File Size:
27.63 MB
File Type:
PDF
Language:
English
Pages:
432
Printable:
Yes
Category:
UTV
Last updated / verified
Mar 26, 2025

Polaris Manual Features & Content Preview

Essential Engineering Technical Manual: UTV Polaris Ranger 425, Ranger 500, Ranger TM 2x4, 4x4, 6x6 - Official Maintenance & Repair Manual (2004) Transmission-Guide

Year-Coverage: 2004 // Technical-Scope: Engine, Drivetrain, Fuel System, Body, Steering // Year-Coverage: Complete Vehicle Logic.

Specification System-Path Calibration-Spec
Engine EH63 Twin-Cylinder 653cc Displacement
Drivetrain Dual Sensing Automatic PVT 3.70:1 Final Drive Ratio
Carburetion Nikki 27mm Down Draft 132 Main Jet
Electrical Alternator Max Output 360 watts
Fuel System 87 Octane Minimum 8.5 gal. Capacity
Chassis Wheels 25x10-12 Front, 25x11-12 Rear

Engineering chapters address:

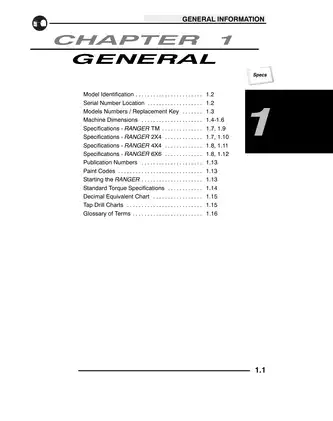

General Information (Chapter 1)

Maintenance (Chapter 2)

Engine (Chapter 3)

Fuel System/Carburetion (Chapter 4)

Body/Steering/Suspension (Chapter 5)

Transmission (Chapter 6)

Detailed maintenance procedures are provided for all critical systems, including engine lubrication and cooling, fuel delivery, and drivetrain maintenance. The manual documents torque specifications for key components to ensure proper assembly and prevent rotational loosening. Specifications cover a wide range of parameters, from engine bore to tire pressure, ensuring a comprehensive reference for all mechanical aspects of the UTV.

Manual FAQ, Purchase & Download Details

Does this manual include exploded views and component diagrams for the covered Polaris Ranger models? keyboard_arrow_down

Document contains detailed exploded views and component breakdowns across various sections to support the identification of machine assemblies.

What is the official publication number and total page count for this service manual? keyboard_arrow_down

Document is identified as publication number P-067 and spans a total of 432 pages. It covers the maintenance and general operational parameters for the 2004 Polaris Ranger 425, 500, and TM series.

Which specific UTV models appear in this document? keyboard_arrow_down

Manual covers the 2004 Polaris Ranger 425, 500, and TM variants in 2x4, 4x4, and 6x6 configurations.

Can I find technical specification tables or reference charts for fluid capacities and engine dimensions? keyboard_arrow_down

Manual includes extensive specification tables that list engine oil volumes, towing capacities, cargo box limits, and ground clearance dimensions for each specific model. These reference tables are located within the General Information chapters.

Is there comprehensive chapter coverage for the electrical and drivetrain systems? keyboard_arrow_down

Document contains dedicated chapters for the Electrical and Drivetrain systems, including transmission lubrication and alternator output references. These sections provide data on system configurations, such as the PVT transmission and ignition timing. Detailed information is also organized into sections covering engine components and body systems.
