Polaris Models Covered & Key Technical Specifications

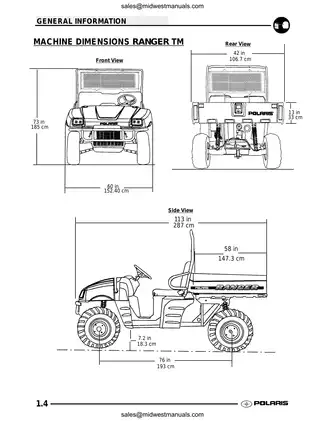

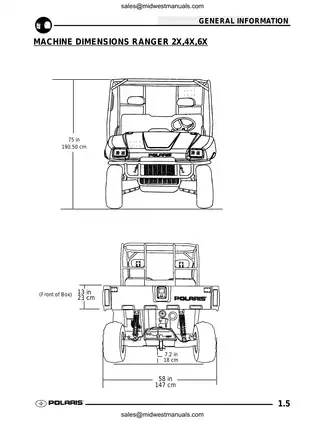

Models: Ranger TM, Ranger 2x4, Ranger 4x4, Ranger 6x6

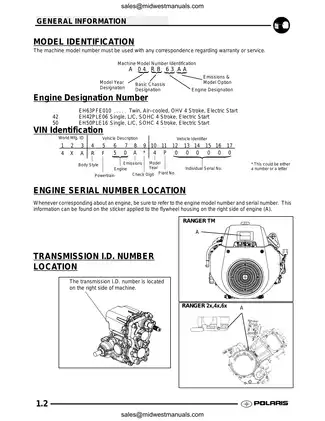

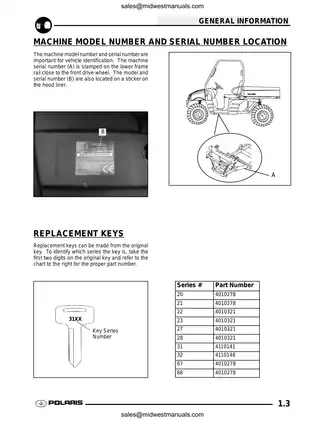

Models & Model Codes:

Ranger TM — A04RB63AA

Ranger 2x4 — A04RB42AA

Ranger 4x4 — A04RD50AA, A04RD50AB

Ranger 6x6 — A04RF50AA

Sub-models / Variants: TM, 2x4, 4x4, 6x6

Model Year: 2004


  • Engine platform (TM): Robin V-Twin, OHV 4 stroke, 653cc (EH63PFE010)

  • Engine platforms (2x4, 4x4, 6x6): Fuji 4-stroke, Single Cylinder; 2x4: 425cc (EH42PLE083); 4x4, 6x6: 499cc (EH50PLE164)

  • Transmission: Dual Sensing Automatic PVT (In Line EZ Shift Hi/Low/Reverse)

  • Suspension (Front): MacPherson Strut

  • Suspension (Rear): Swing Arm with Dual Shocks

  • Braking: Dual Hydraulic Disc (Front/Rear), Foot Actuated Mechanical Parking Brake

  • Fuel requirements: 87 Octane minimum

  • Tire Size: 25x10-12 (Front), 25x11-12 (Rear)

Polaris Manual Features & Selected Content Preview

Polaris service manual P/N 9918796 covers the 2004 Ranger TM, 2x4, 4x4, and 6x6, with separate service material for the TM and liquid-cooled Ranger platforms.

PDF Search, Bookmarks, and Wiring Detail

Finding information and reading diagrams: Text search is available throughout the main service chapters, although some tables and the wiring-diagram labels are images. Embedded bookmarks provide access to the major systems and wiring sections. Small wire codes and connector labels on the checked diagrams are readable when enlarged.

One printable, English-language PDF contains 424 pages, including four dedicated notes pages and four wiring-diagram pages.


Engine Overhaul, PVT Service, and Ranger Drivetrain Repair

The selected coverage below highlights major workshop tasks rather than reproducing the contents list. Other topics include battery load testing and headlight adjustment.

  • Engine repair: Engine removal and installation, cylinder honing, top- and bottom-end disassembly, cylinder-head and valve work, component inspection, reassembly, and troubleshooting.

  • Fuel and cooling systems: Carburetor teardown, cleaning and adjustment, fuel-pump and tank service, cooling-system pressure testing, and water-pump mechanical-seal replacement.

  • PVT clutch service: Model-specific drive and driven clutch removal, inspection, disassembly, assembly, belt checks, alignment, offset adjustment, and bushing service where applicable.

  • Final drive: Front hubs, CV axles and boots, prop shafts, U-joints, front gearcases, rear differentials, and dedicated 6x6 mid-drive repair.

  • Transmission repair: Shift-selector and linkage service, transmission removal, internal disassembly and reassembly, component inspection, and shifting-fault diagnosis.

  • Brakes and chassis: Brake bleeding, parking-brake adjustment, caliper overhaul, steering alignment, A-arm and swingarm service, and front strut and ball-joint replacement.

  • Electrical troubleshooting: Ignition, charging, and starting tests; ECM and CDI checks; coolant-sensor and fan diagnosis; box-lift actuator testing; and model-specific wiring diagrams.

This shop-level manual suits experienced mechanics and well-equipped owners familiar with inspection measurements, pullers, pressure testers, and electrical meters. Polaris restricts PVT repair to appropriately trained authorized technicians and recommends an authorized MSD-certified technician for steering repair and adjustment.

Robin and Fuji Engine Service

The TM material covers the air-cooled Robin EH63PFE010 V-twin, including its wet-sump lubrication system, governor, internal components, and assembly checks. The liquid-cooled sections address the Fuji EH42PLE083 in the 2x4 and EH50PLE164 in the 4x4 and 6x6.

Keeping these platforms separate helps buyers select the procedures that match their engine. Fuji coverage extends to oil-pump priming, valve-seat reconditioning, crankcase bearings, crankshaft and counterbalancer end play, and sealed-recoil service.

The EH63 assembly instructions identify incorrect camshaft-to-crankshaft timing as a cause of engine damage.

Nikki and Mikuni Fuel Systems

The TM uses a Nikki 27 mm carburetor; the other covered models use a Mikuni BST 34 CV carburetor. Model-specific sections explain carburetor operation and provide jetting guidance, float and fuel-level checks, needle-and-seat leakage testing, and troubleshooting for lean running, rich mixtures, and poor idle.

Fuel-pump removal and installation and fuel-tank service are included. The listed Mity Vac pressure tester, PN 2870975, supports both fuel-system and cooling-system tests.

Clutch, Transmission, and Axle Differences

The TM has its own clutching and transmission sections. Clutch service includes exploded assemblies and alignment references; Fuji-model coverage adds dedicated drive and driven clutch bushing procedures.

The TM clutch instructions warn that misplaced spider shims affect balance and that shimming the drive-clutch spring can cause clutch-cover failure. Listed tools include drive-clutch puller PN 2870506 and spider removal/installation tool PN 2870341.

Front-hub procedures distinguish TM/2x4 assemblies from 4x4/6x6 assemblies. The 6x6 receives separate mid-drive hub, shaft, and gearcase instructions, while rear-differential procedures distinguish its arrangement from the TM/2x4/4x4 design.

For an AWD engagement fault, the Centralized Hilliard gearcase section combines coil checks with armature wear illustrations. These references help distinguish electrical engagement problems from mechanical gearcase faults.

Transmission troubleshooting also addresses external causes of difficult shifting, including linkage, belt deflection, and PVT alignment, before internal gear and bearing inspection.

Chassis, Electrical Diagrams, and Workshop References

Body illustrations identify the cab, seat, hood, cargo box, and controls. Suspension procedures extend to front strut cartridges, ball joints, swingarm removal, and the 6x6 mid-axle A-arms.

Electrical material explains the TM ECM logic box and starter interlocks, plus Fuji-model ignition-timing checks and CDI output tests. Charging-system diagnosis, starter voltage-drop tests, starter-motor service, and the optional electric box-lift actuator chart support fault isolation.

Illustrated references include the EH63 oil-flow diagram, EH42PL/EH50PL engine exploded view, Mikuni fuel-flow diagram, drive/driven clutch exploded view, box-lift diagnostic chart, and separate TM and 2x4/4x4/6x6 wiring diagrams.

Workshop data covers component torque specifications, fluid capacities and lubricants, wear limits, clearances, valve data, jetting charts, and electrical test values. Other listed equipment includes water-pump seal puller PN 2872105 and Fluke 77 multimeter PV-43568.

Use the manual’s precautions for secure vehicle support, electrical isolation, fuel handling, hot coolant, brake fluid, and rotating clutch components.

Selected Cooling and Carburetor Test Values

For the liquid-cooled 2x4, 4x4, and 6x6, the cooling-system section specifies a 10 PSI pressure-retention test lasting at least five minutes. It separately lists radiator-cap relief pressure at 13 PSI, distinguishing system leak testing from cap testing.

The Mikuni BST 34 needle-and-seat test uses 5 PSI inlet pressure, with the assembled needle and seat expected to hold that pressure indefinitely. These examples show the test conditions supplied alongside the diagnostic procedures.
