2005–2007 Polaris Ranger XP 700 4x4 & Ranger 6x6 UTV Service Manual (P/N 9920852)

This Polaris service and repair manual covers the 2005–2007 Ranger XP 700 4x4 and Ranger 6x6 (P/N 9920852). Its torque patterns, timing-mark alignments, and system specifications provide the references needed to check engine and drivetrain reassembly.

Text Search, Chapter Bookmarks and Wiring Detail

Search and diagram access: Most chapter text is searchable, and embedded bookmarks link to the main chapters, index, and wiring section. Search does not cover the labels in the final wiring diagrams and is limited within some instrument-cluster flowcharts. Small wiring labels require enlargement for comfortable reading.

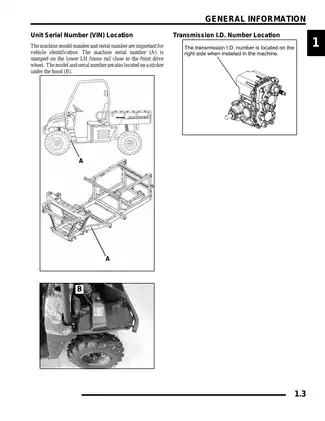

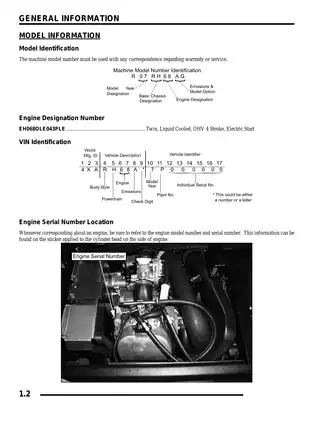

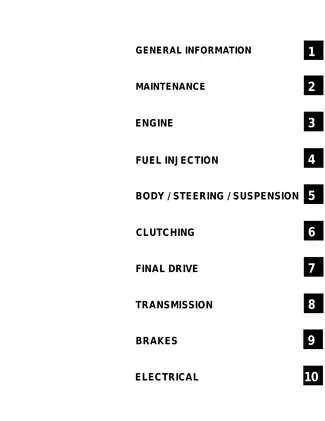

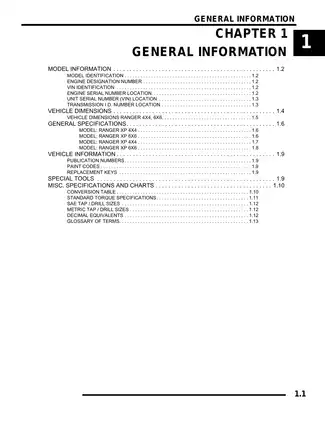

One printable English PDF contains 329 pages total, including the one-page front cover and one-page chapter list.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head service, piston inspection, crankcase disassembly, and internal reassembly, with timing illustrations and torque patterns.

• Cooling and lubrication: Cooling-system pressure tests, radiator removal, bleeding procedures, water-pump seal service, oil-pressure testing, and oil-pump priming.

• Bosch EFI: Fuel-pump and injector service, sensor testing, TPS initialization, diagnostic blink codes, and troubleshooting for lean running, rich mixtures, and idle problems.

• PVT and transmission: Drive and driven clutch service, belt inspection, belt-deflection adjustment, clutch alignment, shift-linkage checks, and transmission disassembly and assembly.

• Final drive: Centralized Hilliard AWD diagnosis, CV joint boot replacement, propshaft U-joint service, and separate gearcase procedures for the different drive configurations.

• Chassis and brakes: MacPherson strut, A-arm, swingarm, wheel-bearing, and hydraulic disc-brake service, plus parking-brake inspection and adjustment.

• Electrical diagnosis: Instrument-cluster tests, starter and charging-system flowcharts, fan-circuit checks, and chassis, dash, and breakout wiring diagrams.

This manual suits technicians familiar with engine rebuilding and electrical testing; Polaris specifies trained, certified Master Service Dealer technicians for PVT work and recommends them for steering repairs and adjustments.

Engine Rebuilding and Cooling-System Service

The engine chapter distinguishes components accessible with the engine installed from jobs requiring engine removal. A separate procedure addresses valve-cover access on the 6x6, where the mounting arrangement limits clearance.

Internal repair coverage includes hydraulic lifters, valve-seat inspection, crankshaft and counterbalance components, cam-gear timing, and water-pump seals. The Nicasil-coated cylinders are treated as deglaze-only; excessive cylinder wear or damage calls for replacement.

The Oil Flow Chart and Coolant Flow Diagram show the routes through the components discussed in the service sections. Reassembly instructions include the Oil System Priming Adapter PU-45778; the manual warns that omitting priming can damage the rebuilt engine at initial startup.

EFI Testing and Diagnostic Equipment

Manual test procedures cover the fuel pump, crankshaft position sensor, TPS, and coolant-temperature sensor. The blink-code chart pairs fault codes with affected circuits, supporting fault tracing before components are replaced.

Digital Wrench diagnostic software PU-47063 and the SmartLink Module Kit PU-47471 are identified separately from manual testing. T-BAP testing requires dealer-only Digital Wrench, with a reference to separate diagnostic-software documentation.

TPS initialization is covered when the sensor has been repositioned, replaced, or loosened. The EFI service notes also warn that connecting or disconnecting ECU wiring with the ignition on can produce a damaging voltage spike.

Clutches, Transmission and Variant-Specific Final Drives

Clutch inspection extends to bushings, rollers, shift weights, and springs, with alignment checks using tool PA-47346. Transmission procedures cover internal shafts, bearings, shift dogs, and reassembly, alongside checks that distinguish linkage faults from internal shifting problems.

The final-drive chapter separates the 4x4 rear differential from the 6x6 middle and rear gearcases. The Centralized Hilliard Exploded View accompanies AWD service and backlash-pad adjustment; diagnosis explains how incorrect coil seating in the U-shaped insert increases pole gap and can prevent engagement.

Suspension, Brakes and Electrical Fault Tracing

Chassis coverage includes frame dimensions, strut-cartridge replacement, the 4x4 independent rear suspension, and the 6x6 rear swingarm. Brake sections distinguish the rear arrangements and cover caliper inspection, disc checks, bleeding, and parking-brake service.

The Starter System Testing Flow Chart and Charging System Testing Flow Chart organize electrical checks alongside relay, fuse, circuit-breaker, stator, and sensor references. Periodic maintenance also covers engine oil and filter changes, air-intake inspection, and gearcase lubrication.

Always verify your lifting equipment and observe standard shop safety protocols before beginning any heavy component teardown detailed in these pages.

A Preview of Torque and EFI Test Specifications

The engine-oil service section lists 192 ± 24 in. lbs. for the crankcase drain plug. Electrical test data include a crankshaft position sensor resistance of 560 Ω ± 10% at 68°F (20°C).

For TPS initialization, the zero-offset specification is 0.528 ± 0.01 V with the throttle plate fully closed. This is a separate reference condition from the idle-position reading.
