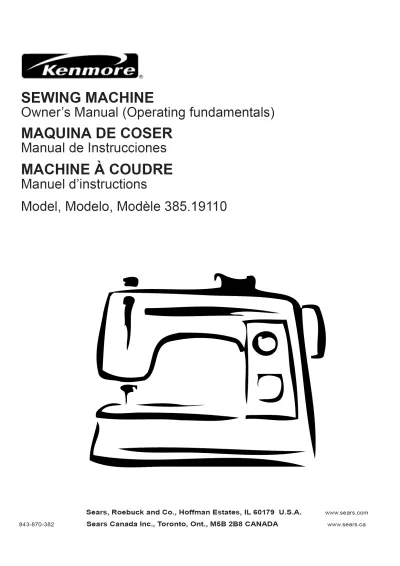

Kenmore Model 385.19110 Sewing Machine Owner's Manual & Service Guide (P/N 843-870-382)

• Factory-correct coverage for the Kenmore 385.19110 sewing machine, including all 385.19110.xxx sub-variants equipped with 50 built-in stitches and 110 stitch functions
• Official OEM publication Form 843-870-382, originally issued by Sears, Roebuck and Co.
• Includes 12 detailed wiring and connection diagrams mapping the power supply and foot controller assembly
• Covers essential mechanical assemblies including the drop feed lever, bobbin winder spindle, presser foot lifter, needle clamp screw, and the free arm extension
• Details advanced machine functions such as the automatic buttonhole sensor, blind hem stitch, keyhole and corded buttonholes, twin needle sewing capability, up/down needle position button, stretch stitch balancing dial, and overcasting functions
• Comprehensive 105-page owner's manual documenting core operational fundamentals, accessory fitment, and diagnostic troubleshooting charts for the 385.19110 series

Operational Guidance & Technical Specifications

This official 105-page Kenmore factory manual delivers actionable, high-density technical data required to verify machine capabilities, performance thresholds, and layout setups. The documentation outlines the exact internal logic of the machine’s automated systems, guiding technicians through the mechanical synchronization of the automatic needle threader and the control interfaces for reverse stitching, auto-lock functions, and electronic needle positioning. By providing the exact factory-specified tension settings and component clearances, this PDF enables you to accurately diagnose timing issues on the bench, drastically reducing turnaround time for routine servicing.

When servicing or adjusting these mechanical assemblies, verifying correct electrical parameters is critical. The documentation lists the factory power requirements for the internal light bulb at 12 V, 5 W. For precise stitch calibration, the engineering tables specify a maximum speed of 820 s.p.m., a maximum stitch width of 7 mm, and a maximum stitch length of 5 mm.

Maintenance Diagnostics & Component Layouts

For workshop efficiency, this document provides the exact mechanical layout needed to clear timing errors and component binding. Alongside the electrical wiring diagrams, the manual features detailed upper threading schematics, bobbin winding diagrams, stitch selection charts, hook race component layout views, and stretch stitch balancing charts. It covers factory-specified routines for balancing thread tension and details the proper cleaning clearances for the hook race and feed dog assemblies.

Note: To ensure workshop safety, always disconnect the power supply and foot controller assembly before performing any cleaning or internal maintenance routines.

Whether you are performing routine preventative maintenance or executing a complex mechanical repair, having the official Sears Roebuck references on hand eliminates guesswork. This manual provides the step-by-step routines necessary to bypass expensive repair shop visits, including safely clearing hook race thread jams, correctly replacing the 12V 5W light bulb, and perfectly balancing needle and bobbin thread tension for difficult synthetic fabrics. It provides clear diagnostic indicators for machine warning signals, ensuring your equipment operates safely within its original factory tolerances.

Technical Insights & Repair Pitfalls

When servicing the 385.19110 series, technicians frequently encounter bent automatic needle threader hooks—a common pitfall caused by engaging the mechanism while using needles smaller than size #11. Furthermore, forcing the machine through dense materials like heavy denim without utilizing the proper wedge point needle often results in subtle hook timing micro-slips that mimic basic tension issues. Access to the original factory specifications ensures these specific mechanical tolerances are respected and correctly assessed.
