2004 Janome MyLock 204D Sewing Machine Instruction Manual (P/N 789-800-037)

This instruction book covers operation, stitch setup, troubleshooting, and routine care for the 2004 Janome MyLock 204D. Printed in Taiwan, the English/French/Spanish edition carries document code 789-800-037 (E/F/S). Its repair coverage includes upper knife replacement and the associated alignment adjustment.

Text search and diagram viewing: PDF text search and embedded bookmarks are not available. Small labels in the detailed hemming setup chart are easier to read when enlarged.

• Threading: Illustrated paths for the upper and lower loopers and both needles, with separate instructions for rethreading after a break.

• Stitch setup: Four-thread and three-thread configurations, presser foot pressure, stitch length, differential feed, cutting width, and needle plate settings.

• Tension troubleshooting: Needle and looper tension comparisons, fabric-to-thread matching, and symptom tables for skipped stitches, thread breakage, puckering, and feeding problems.

• Specialty finishes: Rolled hemming, picot edging, narrow hemming, decorative overedging, gathering, and pin tucking, with the corresponding machine settings.

• Machine care: Upper knife replacement and alignment, knife-area and feed-dog cleaning, light bulb replacement, and illustrated lubrication points.

The illustrated threading instructions and basic operating explanations suit home sewers learning the 204D’s controls and owners handling routine setup and maintenance.

Threading and Tension Troubleshooting

The looper sections cover threading with and without the optional looper threader, upper-looper-only rethreading, and handling woolly nylon or polyester thread. The Names of Parts drawings identify the thread guide bar, presser foot lifter, side cover, and looper cover used throughout the instructions.

The Thread Tension (4 threads) and Thread Tension (3 threads) illustrations distinguish loose needle threads from an imbalance between the upper and lower looper threads. These comparisons help you match an unsatisfactory seam to the relevant tension check before arranging a repair.

The Thread and Needle Chart matches fabrics from organdy to heavy denim, along with knits, to suitable threads and needles. The troubleshooting table connects sewing symptoms with possible causes and references the relevant instruction pages, including thread seating between the tension discs and lint accumulation around the feed dogs.

Three-Thread Setups, Feed and Hemming

The manual distinguishes regular three-thread serging with the right needle from wider three-thread serging with the left needle. Separate needle-installation illustrations show the different seating positions of the two needles.

The Adjustment of Cutting Width drawings relate lower knife position to the finished fabric edge. Differential-feed coverage explains stretched and gathered fabric and identifies the reduction in maximum effective feed ratio at longer stitch lengths.

The needle plate section illustrates the chaining finger positions for standard serging and rolled hemming. A comparison chart presents rolled hemming, picot edging, and narrow hemming with their thread choices, control positions, and tension examples. Decorative overedging, gathering, and pin tucking have their own fabric and thread recommendations.

Knife Care and Repair Scope

Replacing the Upper Knife includes removal, installation, and an overlap drawing showing its relationship to the lower knife. The knife-care notes warn that striking a pin or another hard object can damage both knives, so poor cutting may involve more than the upper blade.

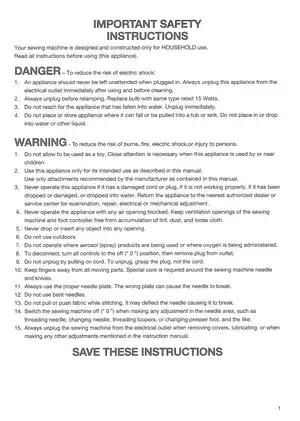

Feed-dog cleaning includes access beneath the needle plate. Lubrication drawings locate the oiling points behind the side and looper covers, while the lamp section illustrates bulb replacement. The safety instructions require disconnecting the machine from its power supply before cleaning, knife work, lubrication, or bulb replacement.

Internal mechanical overhaul, looper timing adjustments, and electrical repair are outside this instruction book’s scope.

Optional Feet and Accessory References

The Optional Parts section illustrates accessories for blind stitching, taping, decorative cording, beading, gathering, and piping. It identifies the cloth guide as 200-216-100 and the needle threader as 200-254-605, providing references for accessory selection.

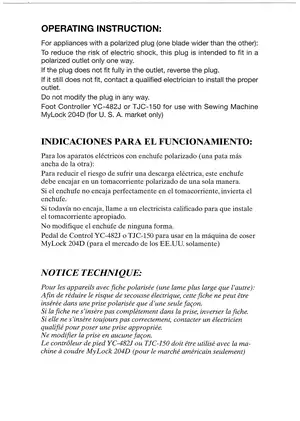

The U.S. operating note identifies the YC-482J or TJC-150 foot controller.

Trilingual PDF and Included Pages

The download is one printable 88-page PDF containing English, French, and Spanish instructions. That total includes 84 pages of instructions, safety information, contents, and accessory references, plus the front cover, back cover, and two designated blank pages. These pages are already included in the total; there is no separate supplement.
