2003 Komatsu WA180-1 Wheel Loader Shop Manual (P/N SEBM034906)

Komatsu shop manual SEBM034906, issued October 2003, covers WA180-1 wheel loaders, S/N 10001 and up, with the S6D95L-1 engine.

Search, bookmarks and wiring detail: Text search is limited to isolated labels; most content is not searchable. Embedded bookmarks link to chapters and component procedures. Small wiring codes and connector numbers require zooming.

• Engine repair: Valve-clearance and injection-timing adjustments, compression and blow-by testing, plus engine, cylinder-head, turbocharger and fuel-injection-pump removal and installation.

• TORQFLOW transmission: Torque-converter and clutch-pack disassembly, reassembly, stall-speed checks, clutch-pressure testing and transmission-control-valve service.

• Axles and final drives: Front and rear axle removal, differential overhaul, bearing-preload adjustment, bevel-gear backlash and tooth-contact checks.

• Steering and articulation: Orbitrol steering-valve repair, priority and double-relief valves, steering-cylinder overhaul and center-hinge-pin replacement.

• Brake system: Wet-disc brake inspection, power-master-cylinder overhaul, brake-line bleeding, pedal-linkage adjustment and parking-brake service.

• Loader hydraulics: Main-control-valve repair, lift- and dump-cylinder rebuilding, hydraulic-drift testing, bucket-positioner adjustment and boom kick-out setting.

• Electric and electronic systems: Starting, engine-stop and preheating circuits, proximity-switch operation, machine wiring diagrams and instrument-panel removal and installation.

Written for service personnel performing workshop repairs, this manual includes work requiring lifting equipment, hydraulic test instruments and component repair stands.

Engine Service and Overhaul Coverage

The engine chapters map out the engine mounts, radiator cooling circuits and fuel tank piping. Removal and installation procedures also cover the water pump, nozzle holders, starter, alternator and engine oil cooler.

Separate tables distinguish test-bench checks from checks with the engine installed. Engine oil pressure, oil temperature and exhaust-smoke testing supplement the compression and blow-by measurements.

Engine scope: This chassis manual covers engine testing and component removal and installation. For detailed internal engine overhaul, it refers to the separate 95 Series Engine Shop Manual, which is not included.

Transmission, Differential and Drive-Shaft Repair

The TORQFLOW section explains forward, reverse and speed-clutch operation, including the main regulator, quick-return valve, accumulator and clutch cut-off valve. The power-train hydraulic circuit diagram connects these components to the individual clutch circuits.

Troubleshooting charts address no travel, weak pushing force, harsh or delayed shifts and torque-converter overheating. Combined with stall-speed and clutch-pressure tests, they help narrow a drive complaint before transmission teardown.

Torque-proportioning differentials and planetary final drives have assembly views and inspection standards. The drive-shaft instructions distinguish seal arrangements for S/N 10001-10306 and 10307-up. They also warn that welding a bearing-cap strap can damage the bearing through heat.

Steering, Loader Hydraulics and Linkage

Steering-valve coverage includes spool-and-sleeve assembly and gerotor alignment. Center-hinge procedures address frame separation, bearing installation and shim selection.

The steering and work-equipment hydraulic circuit diagrams show the priority valve, control spools, relief valves and suction valves. Pump data distinguish the SAL(2)040 steering pump from the SAL(2)020 hydraulic pump, with discharge checks and wear limits.

Loader troubleshooting covers weak lift, cylinder drift, slow bucket movement and control-lever faults. Cylinder assembly sections identify packing orientation, piston-ring tools and bushing precautions; linkage sections cover pin, bushing and shim installation.

Service Brakes and Parking Brake

Brake chapters explain the hydraulic booster and wet single-disc brakes, with pressure-loss testing and disc-wear measurement. The maintenance table separates brake inner-ring specifications for S/N 10001-11999 and 12001-up, helping match inspection limits to the installed brake arrangement.

Parking-brake coverage includes caliper, disc, cable and pad service. The master-cylinder assembly notes identify seal-cup damage that can result from forcing the primary piston into its bore.

Electrical Circuits and Cab Air Conditioning

The Electrical Wiring Diagram provides component locations; the Electrical Wiring Diagram Circuit includes connector references and switch-connection tables. Electric wire code tables explain conductor sizes and color markings.

Cab air-conditioning coverage includes piping, the Air Conditioner Electric Circuit, compressor, condenser and receiver-drier construction. This section explains component structure and function; it does not provide a full air-conditioning overhaul procedure.

Workshop Specifications and Tools

Reference tables cover metric-bolt, flared-nut and split-flange tightening torques, fluid capacities and lubricant selection by ambient temperature. Cooling-system quantities distinguish standard and sandy-area configurations. Push-pull coupler views, hoisting load charts and component weight tables support workshop preparation.

Tool lists identify hydraulic tester 799-101-5000 and cylinder repair stand 790-502-1001. Follow the manual's precautions for residual hydraulic pressure, heavy components and frame articulation during repair work.

English PDF and Included Pages

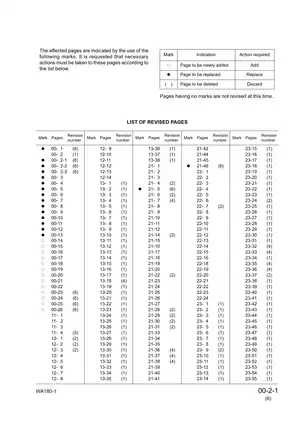

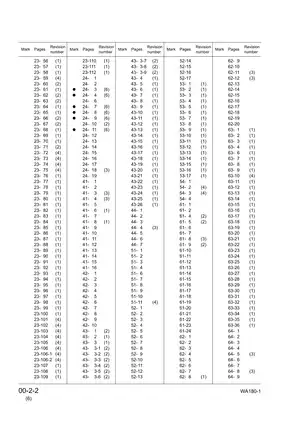

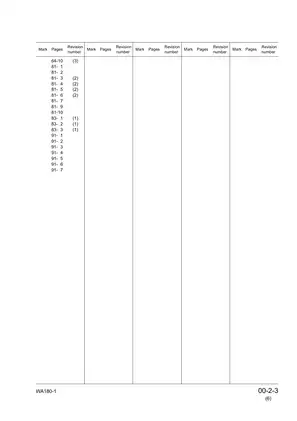

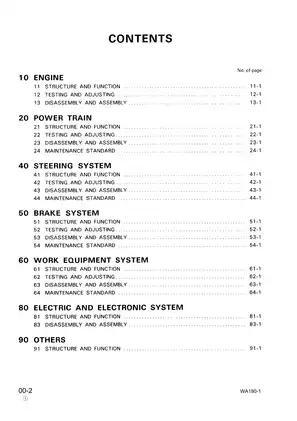

One printable English 505-page PDF, comprising 476 technical-section pages and 29 pages of original front matter. The cover, contents, revision lists, safety information and reference tables are already included in that total.
