Repair your Bulldozer / Crawler Tractor: New Holland DC70, DC80, DC100 workshop manual / repair guide.
Manual details, specs and technical data:

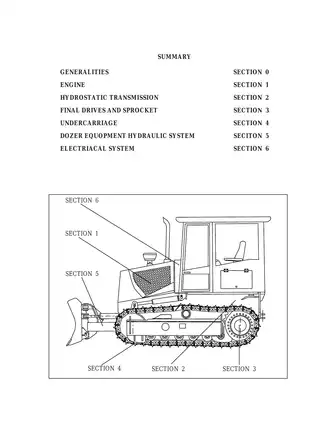

310 Pages 6 Sections
Model, type / manufacturer or brand: DC70, DC80, DC100 / New Holland Agriculture
Engine DC70 specs: 4B3.9 Elite, 238cu in, 70hp, 201lb ft.
Engine DC80 specs: Cummins 43.9 Elite, Turbocharged, 238cu in, 84hp, 283lb ft.
Engine DC100 specs: Cummins 4A 3.9Elite, Turbocharged, 238cu in, 100hp, 327lb ft.
Manual Language: English
Manual format: PDF / e-book (zip)
Printable: Yes
#
³
10 tech specs about the New Holland DC70, DC80, DC100 Bulldozer:
1. Engine: The New Holland DC70, DC80, and DC100 Bulldozers are equipped with a diesel engine.
2. Horsepower: The engine produces 70 to 100 horsepower, depending on the model.
3. Operating weight: The operating weight of the DC70 is approximately 12,000 pounds, while the DC80 and DC100 weigh in at around 14,000 and 16,000 pounds, respectively.
4. Blade capacity: The DC70 and DC80 have a blade capacity of 7.2 and 8.2 cubic yards, respectively, while the DC100 can handle up to 10 cubic yards.
5. Track system: The bulldozers feature a hydraulic track tensioning system for improved performance and longevity.
6. Ground clearance: The machines have a ground clearance of around 18 inches.
7. Travel speed: The DC70, DC80, and DC100 can travel at a maximum speed of 4.8, 5.1, and 5.5 miles per hour, respectively.
8. Fuel capacity: The fuel tank has a capacity of around 120 gallons.
9. Repair manual: The repair manual for the New Holland DC70, DC80, and DC100 provides detailed instructions and diagrams for maintenance, troubleshooting, and repairs.
10. Availability: The manual is available in pdf format and can be easily accessed and used on a computer or mobile device.
The New Holland DC70, DC80, and DC100 Bulldozers are heavy-duty construction machines that require regular maintenance and repairs to ensure their optimal performance. The repair manual is an essential tool for technicians and owners who want to keep their equipment in top shape. The manual provides detailed instructions and diagrams that offer step-by-step guidance on performing maintenance, troubleshooting, and repairs.
The manual includes a parts list that lists all the components of the machine and their respective parts numbers, making it easier for users to order the right parts for their repairs. The manual is available in pdf format, which makes it easy to access and use on a computer or mobile device. The engine is the heart of the bulldozer and requires regular maintenance to ensure its longevity and efficiency. The manual provides instructions on how to perform regular engine maintenance, such as oil and filter changes, air filter cleaning, and valve adjustments.
In addition to the manual, it's important to follow the manufacturer's recommended maintenance schedule, which can vary based on usage and operating conditions. Regular maintenance can help prevent costly repairs and extend the lifespan of the machine. Proper maintenance and repair can also ensure the safety of the operator and those working in the vicinity of the machine. For example, checking the hydraulic system regularly can prevent leaks and improve the overall performance of the bulldozer. Regular maintenance and timely repairs can help keep the New Holland DC70, DC80, and DC100 Bulldozers operating at their best for years to come.
