Mustang 2050 Skid Steer Loader Parts Manual – 1998–2002 (P/N 001-48976)

144 Pages • 1 Printable PDF (English) • Download

4.8starstarstarstarstar_half(4)
$15.89 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Mustang Models Covered & Key Technical Specifications

Model: 2050

Model Years: 1998–2002 (1998, 1999, 2000, 2001, 2002)


  • Engine: Yanmar 4TNE88

  • Hydraulic reservoir capacity: 42 L (11 gal)

  • SAE rated capacity: 703 kg (1550 lb)

Mustang Manual Features & Selected Content Preview

This Mustang 2050 skid steer loader parts manual (P/N 001-48976, issued October 1997) provides illustrated parts identification for the 1998–2002 models. The hydrostatic mount and linkage pages carry a September 1998 revision.

PDF Navigation and Page Count

Text search, bookmarks, and wiring detail: PDF text search and embedded bookmarks are unavailable. Small wiring labels require zooming, and some wire codes at the main harness connector are still difficult to read when enlarged.

The printable English PDF contains 144 pages. It includes 140 numbered catalog pages, the cover, one unnumbered wiring schematic, and two blank pages. The numbered pages include two notes pages and three “To Be Announced” placeholders.


Engine, Hydrostatic Drive, and Loader Parts

These are selected catalog contents. The catalog also includes wheel and tire parts and a single-point lift kit.

  • Yanmar engine parts: Exploded views and parts lists identify the 4TNE88 cylinder block, cylinder head, flywheel housing, suction and exhaust manifolds, fuel injection pump, and gasket set.

  • Hydraulic assemblies: Component breakdowns cover the gear pump, hydrostatic unit, hydraulic motors, control valve, manifold valve, self-leveling valve, and lift and tilt cylinders.

  • Drive and steering: The Chain Drive and Axle and Housing drawings identify sprockets, bearings, and seals. Separate drawings cover the brakes, dual-lever and T-bar steering, and neutral centering device.

  • Electrical references: The 2050 wiring schematic and instrument panel drawings show harness connections for starting, charging, lighting, and hydraulic lockouts.

  • Frame and attachment mounting: Assembly drawings identify lift arms, ROPS-FOPS, cab panels, foot pedal controls, seats, and single-pin and two-pin Fast-A-Tach components.

  • Attachments and cab equipment: Parts lists cover buckets, pallet and utility forks, grapples, scarifiers, 3-point hitch adapters, cab heaters, windshield wiper motors, and sound packages.

The catalog suits mechanics and experienced owners who can use exploded views and numbered callouts to identify replacement parts before ordering.

Control Options and Parts Matching

The control-cable chart separates T-bar, dual-lever foot-control, and dual-lever hand-control configurations. It lists lift, tilt, and auxiliary cables separately so you can match the replacement to the installed controls.

Single-pin and two-pin Fast-A-Tach assemblies have separate latch and linkage drawings. The pallet-fork mounting frame is listed for the single-pin system, and the bucket listings distinguish mounting versions and replaceable cutting edges.

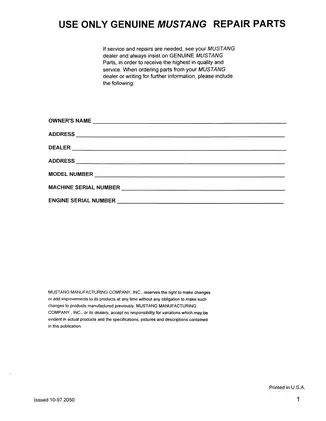

The ordering page asks for both machine and engine serial numbers. The numerical index links part numbers to illustration callouts and catalog pages.

Yanmar Engine and Fuel-System Parts

The engine lists distinguish standard and oversize pistons, undersize crankshaft bearings, and oversize thrust bearings. Selecting the wrong repair size can leave incorrect clearance and damage cylinder or bearing surfaces. Machining instructions and clearance-setting procedures are outside the catalog’s scope.

Fuel Injection Pump and Governor drawings identify plunger-and-barrel assemblies, delivery valves, control linkages, and adjusting shims. Other illustrations cover the oil pump, water pump, thermostat, radiator and connecting lines, oil sump, air cleaner, muffler, and engine mounts.

Hydraulic Kits and Electrical Connections

The Hydrostatic Plumbing and Charge, Cooler and Return Filter Plumbing drawings show hose and tube routing. Valve breakdowns distinguish the auxiliary detent, lift float, and tilt spool positioners, along with relief cartridges and spool-lock components.

The pump, motor, valve, and cylinder listings identify service kits and their seals. The hydraulic motor parts list flags an O-ring that must be ordered separately from the motor.

The instrument panel list identifies the M368 control module. The schematic maps the seat and seat-belt circuits, neutral switches, and starter and glow-plug relays. It marks the hazard flashers, horn, and backup alarm as optional equipment.

Service References and Catalog Limits

The service-chart decal lists fluid capacities for the engine, chain cases, and hydraulic tank, along with fluid references and filter and V-belt part numbers.

The exploded views show how assemblies fit together and help identify parts for repair. Step-by-step repair, diagnostic testing, overhaul procedures, torque tables, and wear limits are outside the catalog’s scope. The safety decal illustrations include warnings for raised lift arms and pressurized hydraulics.

Selected Engine and Grapple Part Sizes

The crankshaft and piston list gives a 0.25 mm oversize piston and ring set and a 0.25 mm undersize crankpin bearing. The catalog lists these as separate replacement parts for the Yanmar engine.

The utility fork grapple listing identifies cylinder 170-20850 by its 2 1/2 in. bore and 6 3/8 in. stroke. Those dimensions identify the cylinder for that attachment.
