Kenmore 385.18330 Sewing Machine Owner's Manual (P/N 756-800-105)

This Kenmore 385.18330 sewing machine owner's manual covers household sewing, machine setup, routine care, and troubleshooting. Its back-cover identification code is 756-800-105.

• Threading and tension: Bobbin winding and insertion, needle-threader operation, drawing up the bobbin thread, and tension adjustments for straight and zigzag stitches.

• Feed and stitch controls: Presser-foot pressure, stitch selection, stitch length and width controls, feed-dog operation, and stretch-stitch balance adjustment.

• Sewing applications: Zipper and blind-hem sewing, darning, bar tacking, applique, monogramming, fagoting, smocking, serging, and twin-needle stitching.

• Buttonholes: Built-in automatic, corded, and manual buttonholes, buttonhole stitch-balance adjustment, and instructions for the optional template attachment.

• Care and troubleshooting: Light-bulb replacement, bobbin-holder and hook-race cleaning, feed-dog cleaning, lubrication, and a troubleshooting table with references to the relevant instructions.

The illustrated threading procedures and explanations of basic controls make this guide suited to owners learning to use and maintain this particular machine.

Threading, Tension, and Feed Controls

Machine preparation covers the power connection, speed-range switch, and foot control. The operating instructions identify foot controller model YC-482J-1.

Bobbin winding views show the spool arrangements and bobbin winder spindle. Threading diagrams identify the thread take-up lever and needle threader, while tension illustrations compare balanced stitches with overly tight or loose tension on both sides of the fabric.

The control instructions explain how the pressure adjusting lever relates to different sewing applications. They also locate the drop feed lever beneath the free-arm bed and describe how the feed balancing dial corrects stretched or compressed decorative patterns.

Presser Feet, Sewing Techniques, and Buttonholes

The presser-foot reference distinguishes zipper foot E, blind hem foot G, satin stitch foot F, and the other attachments by application. An illustrated accessory list supplies part numbers and identifies items sold separately.

Stitch instructions pair the selected pattern with the appropriate foot and control settings. Quilting guidance explains the quilter guide, while the decorative sections cover fabric backing, gathering for smocking, and edge finishing with stretch stitches.

Buttonhole equipment: The built-in system uses automatic buttonhole foot R. Manual buttonhole instructions cover buttons that exceed its holder capacity, while a separate section explains the optional attachment with round-end and keyhole templates. Twin-needle stitching also requires an optional needle and uses separate thread paths.

Foot-specific cautions explain how an unsuitable needle position with straight stitch foot H can cause a needle strike and breakage. Incorrect stitch-width selection with overedge foot C can damage the needle or foot.

Cleaning, Lubrication, and Fault Finding

The care illustrations show bobbin-holder removal and positioning marks, access beneath the needle plate, and lubrication points under the face cover.

The troubleshooting table links thread breakage, skipped stitches, puckering, feeding problems, distorted patterns, and noisy operation to possible causes and related instructions. This helps owners distinguish threading, needle-selection, and cleaning problems before seeking repair.

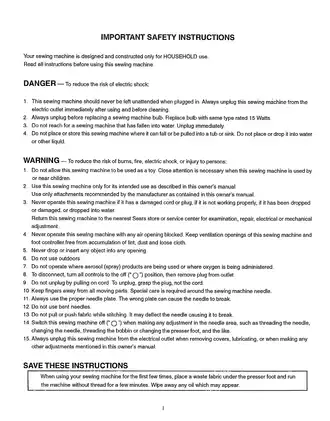

Maintenance scope: The manual limits disassembly to the care procedures it describes and refers electrical or mechanical repair to a service center. Disconnect the machine from its power supply before opening covers, cleaning, or lubricating it.

A Preview of Needle Sizes and Buttonhole Capacity

The following examples are a small selection of the fabric and accessory specifications in the manual.

The needle chart lists sizes 11 (75) and 12 (80) for light woven fabrics such as batiste and taffeta. Denim is paired with a size 16 (100) denim needle, while canvas, duck, and upholstery fabrics are listed with size 18 (110).

Automatic buttonhole foot R accepts buttons up to 1.0 inch (2.5 cm) in diameter. The manual describes buttonhole foot B for larger buttons.

PDF Search, Navigation, and Included Pages

Text search and navigation: The PDF has searchable OCR text, with recognition errors that can affect exact-term searches. There are no embedded PDF bookmarks.

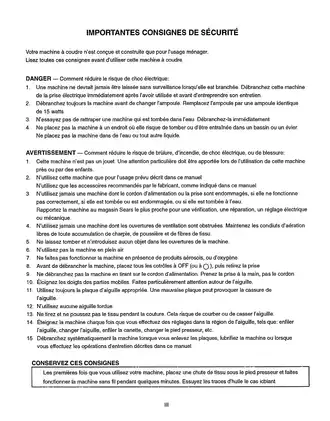

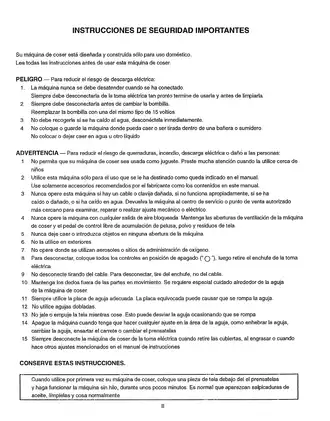

The download contains one printable, 114-page PDF with English, Spanish, and French text. That total already includes four quick-reference pages covering setup, care, and the Practical Stitch Chart, two blank pages, and both covers.
